ONSEMI H11F3M Optocoupler module
The H11F3M series features Gallium-Aluminum-Arsenide IRED emitting diodes paired with bilateral silicon photo-detectors, offering high isolation resistance and low capacitance. Ideal for controlling low-level AC/DC signals with distortion-free performance, these optocouplers excel in applications like remote variable resistors, automatic gain control, active filter tuning, and isolated analog switching. Mounted in dual in-line packages, they provide reliable optical insulation, minimal offset voltage, and robust signal capability up to 60 V. Suitable for test equipment, medical systems, and electrical insulation tasks, ensuring safe and efficient operation.
ONSEMI H11F3M Optocoupler module Specifications:
- Isolation Resistance: > 100 GΩ
- Capacitance: < 15 pF
- Forward Voltage: 1.3 to 1.75 V
- Peak Forward Current: 1 A (10µs pulse)
- LED Power Dissipation: 100 mW
- Breakdown Voltage: 30 V (H11F1M/H11F2M), 15 V (H11F3M)
- Detector Power Dissipation: 300 mW
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +150°C
- Isolation Voltage: 7500 VACPEAK
- Insulation Resistance: 10^9 Ω
- Leakage Current: 10 pA
- Response time: ~45 μs (turn-on/turn-off)

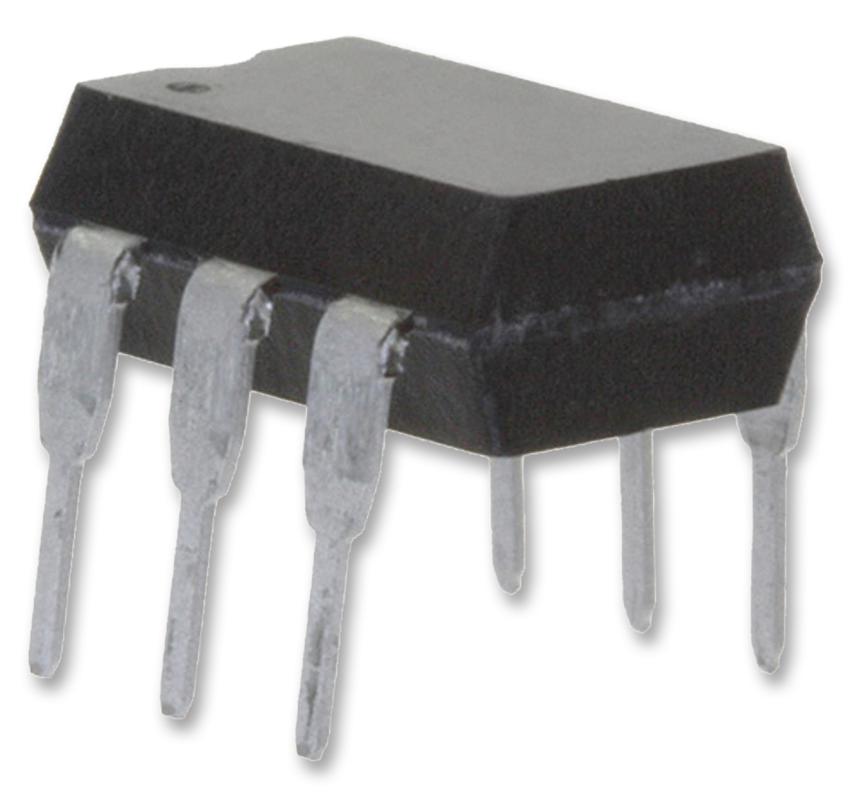

Buy the ON Semiconductor Series H11F3M Optocoupler: H11F3M
Order the ON Semiconductor H11F3M optocoupler today through our online store. This device offers exceptional optical isolation, low capacitance and high voltage handling, perfect for sensitive low-level signal control, medical systems, industrial automation, and safety-critical applications. Designed with Bilateral silicon detectors and Gallium-Aluminum-Arsenide IREDs, it ensures distortion-free control, minimal offset voltage, and reliable performance across a wide temperature range. Secure your supply now and enhance your circuit's safety and efficiency with this high-quality optocoupler.
Buy ON Semiconductor H11F3M optocoupler now and experience unmatched reliability and performance for your signal isolation and control needs.
Frequently Asked Questions
Where can I buy ONSEMI H11F3M?
You can click on the BUY or RFQ button to purchase H11F3M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part H11F3M?
You can download the H11F3M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of H11F3M?
ONSEMI
