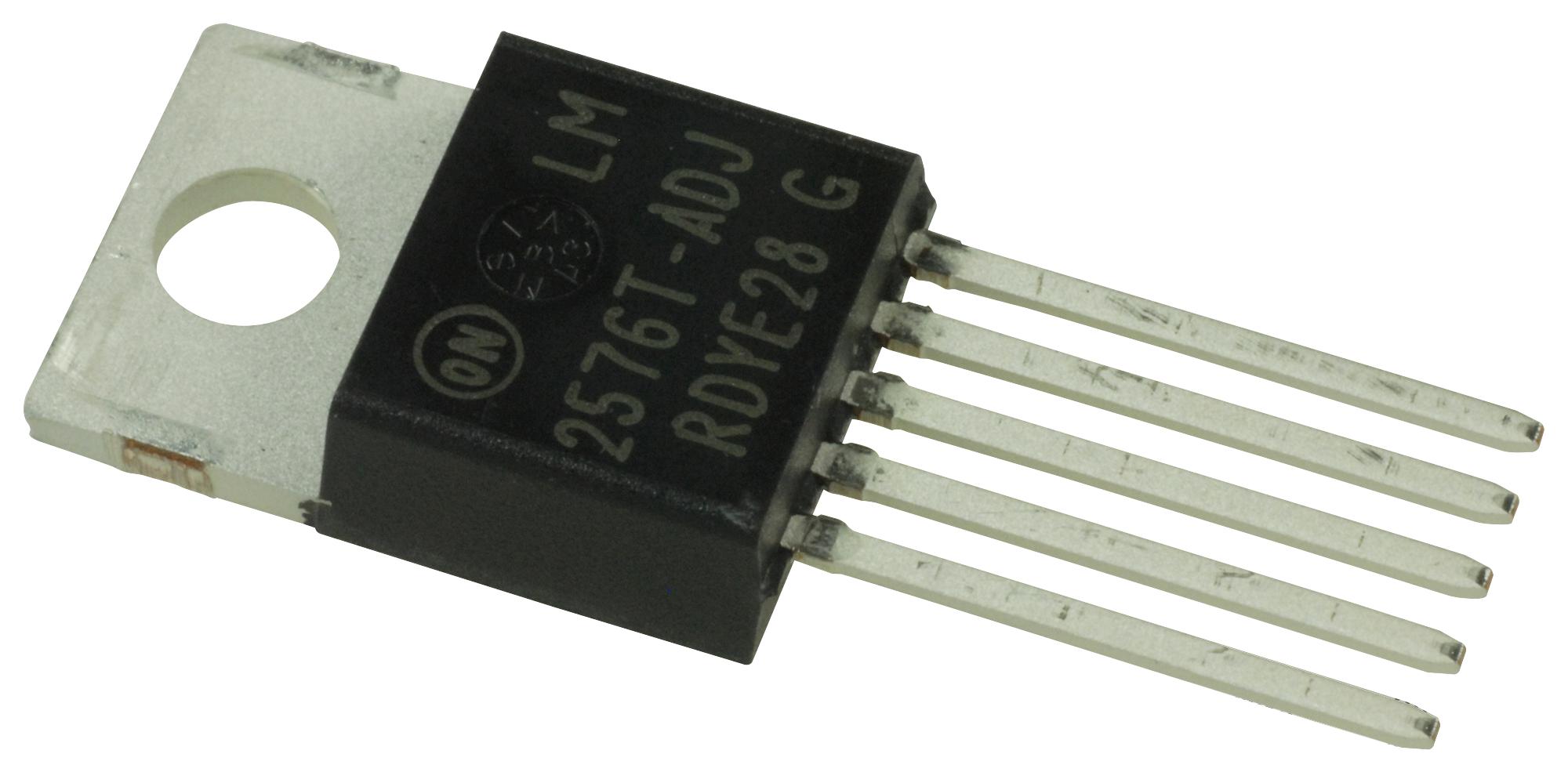

ONSEMI LM2576TADJG Voltage Regulator
The LM2576T-ADJG is a high-efficiency, step-down switching regulator designed as a monolithic integrated circuit suitable for easy and convenient power supply designs. It can deliver up to 3.0A loads while maintaining excellent line and load regulation. This regulator minimizes the number of external components required, with standard inductors optimized for use with it, simplifying the overall design. As a switch-mode power supply, it offers significantly higher efficiency compared to linear regulators, especially at higher input voltages, resulting in less heat dissipation and potentially no need for a heatsink. Features include a wide input voltage range, low component count (only four external components needed), TTL shutdown capability, low power standby mode, high efficiency, and built-in protections such as thermal shutdown and current limit. It is suitable for power management and industrial applications, with moisture sensitivity level (MSL) classified as level 1.
ONSEMI LM2576TADJG Voltage Regulator Specifications:
- Input Voltage Range: 4 V to 40 V
- Output Voltage: Adjustable from 1.23 V to 37 V
- Maximum Load Current: 3.0 A
- Efficiency: Up to 85%
- Switching Frequency: 52 kHz
- Thermal Shutdown: Yes
- Current Limit Protection: Yes
- Thermal Resistance Junction-to-Ambient (TO-220): 65 °C/W
- Protection Features: Over-temperature, cycle-by-cycle current limiting
- Number of External Components: 4
- Documentation: Available in Pb-Free packages
- Moisture Sensitivity Level (MSL): 1
- Package Types: TO-220, D2PAK
Buy the Buy ON Semiconductor LM2576T-ADJG Part Number LM2576T-ADJG Online
Order the ON Semiconductor LM2576T-ADJG today for high-efficiency step-down power regulation. This reliable regulator offers a 3A load capacity, minimal external components, and built-in protections including thermal shutdown and current limiting. Perfect for industrial power supplies, it ensures excellent line and load regulation, with a wide input voltage range from 4V to 40V. Its high switching frequency reduces noise and heat dissipation. Purchase online now to streamline your power management projects with this durable and easy-to-use integrated circuit, ensuring optimal performance and longevity.
Get ON Semiconductor LM2576T-ADJG today—built for high efficiency and reliable power management in industrial and electronic applications.
Frequently Asked Questions
Where can I buy ONSEMI LM2576TADJG?
You can click on the BUY or RFQ button to purchase LM2576TADJG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2576TADJG?
You can download the LM2576TADJG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2576TADJG?
ONSEMI
