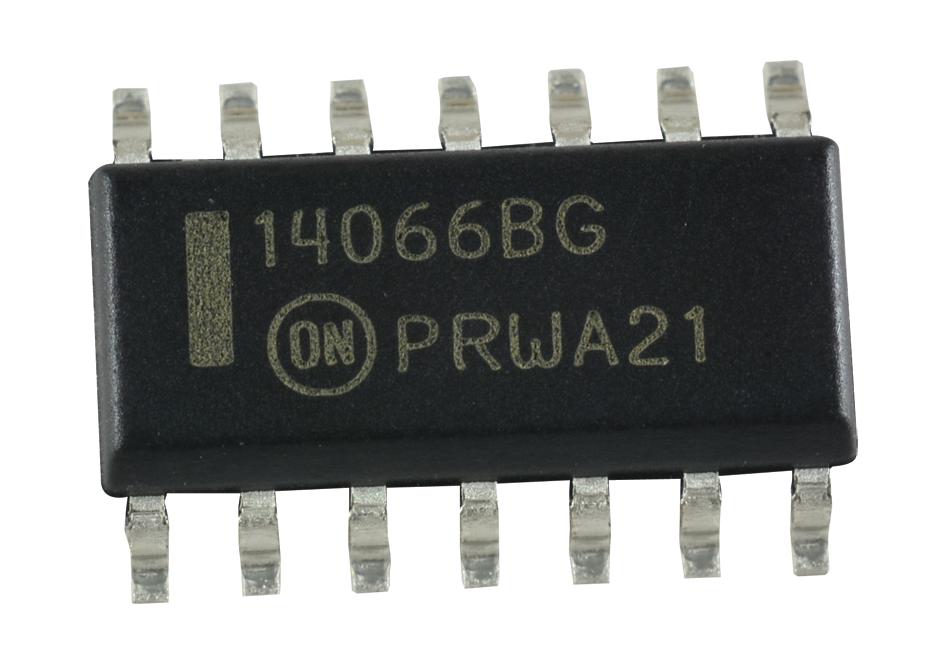

ONSEMI MC14066BDG Quad Analog Switch
The MC14066BDG is a quad analog switch and multiplexer consisting of four independent bilateral switches designed to control both digital and analog signals. This device is suitable for applications such as signal gating, modulation, demodulation, and CMOS logic implementation. It is pin-compatible with the MC14016B and other similar devices but features a significantly lower ON resistance. The switch can handle input voltage swings up to the full supply voltage on each independent control input, and it includes linearized transfer characteristics and triple diode protection on all control inputs.
ONSEMI MC14066BDG Quad Analog Switch Specifications:
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Maximum DC Supply Voltage = 18 V
- Input Voltage Range = 0 to Vpp (up to full supply voltage)
- Power Dissipation per Package = 500 mW
- Switch Through Current = 25 mA
- Control Input Voltage (Low) = 0 to 2.5 V
- Control Input Voltage (High) = 4.0 to 15 V
- On Resistance (Ron) = 220 to 1050 Ohms (dependent on voltage and temperature)
- Propagation Delay Times: tpHL and tpLH = 5 to 40 ns
- Temperature Range = -55°C to +125°C
- Lead Temperature for Soldering = 260°C
- Device Packages = SOIC-14, TSSOP-14, SoeIAJ-14
- RoHS Compliant, Pb-Free
