ONSEMI MC74LCX16244DTG 16-bit Buffer
The MC74LCX16244 is a high-performance, non-inverting 16-bit buffer designed for low-voltage operation from 2.3 to 3.6 V. It provides 3-state, 5 V-tolerant outputs suitable for memory address driving and TTL level bus applications, with fast 4.5 ns propagation delay. Each nibble has independent Output Enable controls, enabling flexible operation. Its high drive capability of 24 mA at outputs, low static current, and compatibility with LVTTL and LVCMOS standards make it ideal for high-speed digital systems requiring reliable, low power, and voltage-tolerant buffering.
ONSEMI MC74LCX16244DTG 16-bit Buffer Specifications:
- Supply Voltage: 2.3 V to 3.6 V
- Propagation delay: 4.5 ns maximum
- Output Drive Current: 24 mA
- Input/Output Voltage Tolerance: up to 5.5 V
- Input Voltage Range: 0 to Vcc
- Static Supply Current: near zero in all states (20 μA)
- Package: TSSOP-48
- High impedance when Vcc = 0 V
- ESD Protection: >2000 V human body model
- Operating Temperature: -40°C to +85°C

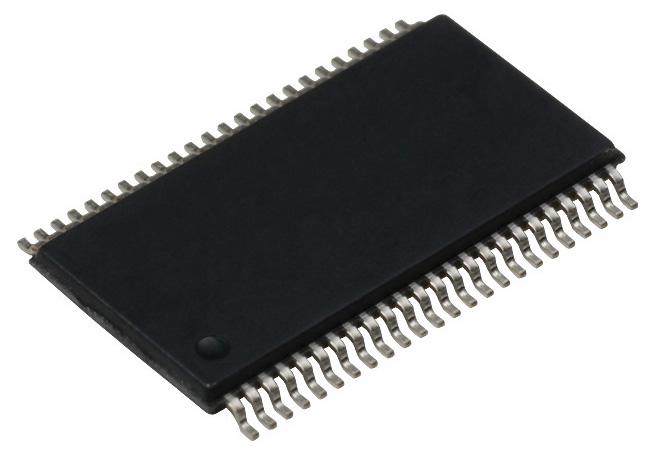

Buy the Buy ON Semiconductor MC74LCX16244 Part Number MC74LCX16244DTG Online
Experience fast, reliable digital buffering with the high-performance 16-bit buffer. Designed for low-voltage operation from 2.3 to 3.6 V, it features 3-state outputs, independent nibble control, and a maximum propagation delay of 4.5 ns. With 24 mA drive capacity, low static current, and compatibility with LVTTL and LVCMOS standards, this buffer is ideal for memory address driving, bus interfaces, and high-speed digital systems. Its 48-pin TSSOP package ensures ease of integration and robust performance.
Buy ON Semiconductor MC74LCX16244 now and experience unmatched reliability and performance with high-speed 16-bit buffering and 5 V-tolerant outputs.
Frequently Asked Questions
Where can I buy ONSEMI MC74LCX16244DTG?
You can click on the BUY or RFQ button to purchase MC74LCX16244DTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74LCX16244DTG?
You can download the MC74LCX16244DTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74LCX16244DTG?
ONSEMI
