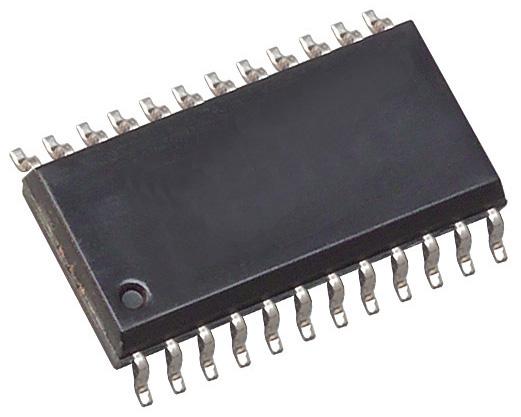

ONSEMI MC74LVX4245DWG Voltage Translator
The MC74LVX4245 is a dual-supply, octal translating transceiver designed to interface between 5.0 V and 3.0 V buses, ideal for mixed-voltage environments such as laptops with 3.3 V CPUs and 5 V displays. It features bidirectional data transfer, 3-state outputs, and control inputs compatible with TTL levels. Suitable for high-speed applications with outputs sourcing/sinking 24 mA at 5.0 V and 12 mA at 3.0 V, in SOIC and TSSOP packages, ensuring compatibility with standard logic and low power consumption.
ONSEMI MC74LVX4245DWG Voltage Translator Specifications:
- Supply Voltage: 4.5 V to 5.5 V (Vcca), 2.7 V to 3.6 V (Vecs)
- Input Voltage Range: 0 V to Vcca/Vecs
- Outputs Source/Sink: 24 mA at 5 V, 12 mA at 3 V
- Propagation Delay: 1.0 to 10 ns (typical, at 25°C)
- Operating Temperature: -40°C to +85°C
- Package Options: SOIC-24, TSSOP-24
- Control Inputs: TTL compatible (OE, TR)
- Voltage Translation Direction: Bidirectional with control signals
- Power Dissipation Capacitance: 55 pF at 10 MHz
- Maximum Ratings: Vcca up to 6 V, Vccp up to 7 V, storage temp -65°C to +150°C
Buy the ON Semiconductor MC74LVX4245 – Reliable Voltage Translator for Industrial Applications
Purchase the ON Semiconductor MC74LVX4245 transceiver online now to ensure seamless interface between 3.3 V and 5 V systems. Its bidirectional translation capability, fast propagation delays, and 3-state outputs make it perfect for mixed-voltage applications such as laptops, embedded systems, and other digital devices. Available in compact SOIC and TSSOP packages, it guarantees high performance, low power consumption, and reliable operation under industrial conditions. Get yours today for efficient and safe voltage level shifting in your projects!
Order your ON Semiconductor MC74LVX4245 dual-supply transceiver today and enhance your mixed-voltage systems with dependable, high-speed signal translation.
Frequently Asked Questions
Where can I buy ONSEMI MC74LVX4245DWG?
You can click on the BUY or RFQ button to purchase MC74LVX4245DWG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74LVX4245DWG?
You can download the MC74LVX4245DWG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74LVX4245DWG?
ONSEMI
