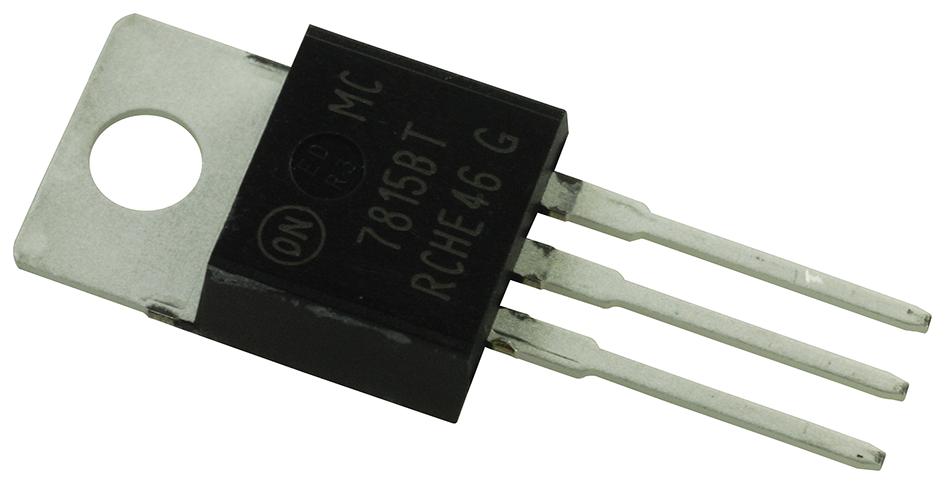

ONSEMI MC7815BTG Voltage Regulator Module
The MC7815BTG is a linear voltage regulator suitable for various applications, including local and on-card regulation. It features internal current limiting, thermal shutdown, and safe-area compensation to ensure reliable operation. When properly heat-sinked, it can deliver output currents exceeding 1.0A. Although primarily designed as a fixed 15V regulator, it can be used with external components to obtain adjustable voltages and currents. Key features include no external components required, internal thermal overload protection, short-circuit current limiting, and output voltage tolerances of 1.5%, 2%, or 4%. Common applications include motor drive and control systems. Delivery may be delayed due to market demand, and discounts are not applicable.
ONSEMI MC7815BTG Voltage Regulator Module Specifications:
- Output Voltage: 15V (nominal)
- Output Voltage Tolerance: 1.5%, 2%, 4%
- Maximum Output Current: Over 1.0A with heatsinking
- Input Voltage Range: Typically 17V to 30V
- Built-in current limiting and thermal shutdown
- Internal safe-area compensation for reliable operation
- No external components required for fixed output
- Package: TO-220
- Operating Temperature Range: -40°C to +125°C
- Device is Pb-Free and RoHS compliant
- Suitable for motor drives, control circuits, and industrial automation
- Delivery can be delayed due to market demand; discounts not applicable
Buy the ON Semiconductor MC7815BTG – Reliable Voltage Regulator for Industrial Applications
Get the ON Semiconductor MC7815BTG online now to ensure your industrial control systems and motor drives operate smoothly with reliable 15V regulation. This high-performance linear regulator features internal current limiting, thermal shutdown, and no external components needed, simplifying your design. With over 1A current capacity and built-in safety features, it guarantees efficient operation in demanding environments. Purchase today for fast delivery and competitive prices, securing a vital component for your automation projects, control circuits, and industrial applications with confidence.
Order your ON Semiconductor MC7815BTG today and provide your projects with dependable 15V power regulation suitable for industrial automation and motor control.
Frequently Asked Questions
Where can I buy ONSEMI MC7815BTG?
You can click on the BUY or RFQ button to purchase MC7815BTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7815BTG?
You can download the MC7815BTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7815BTG?
ONSEMI
