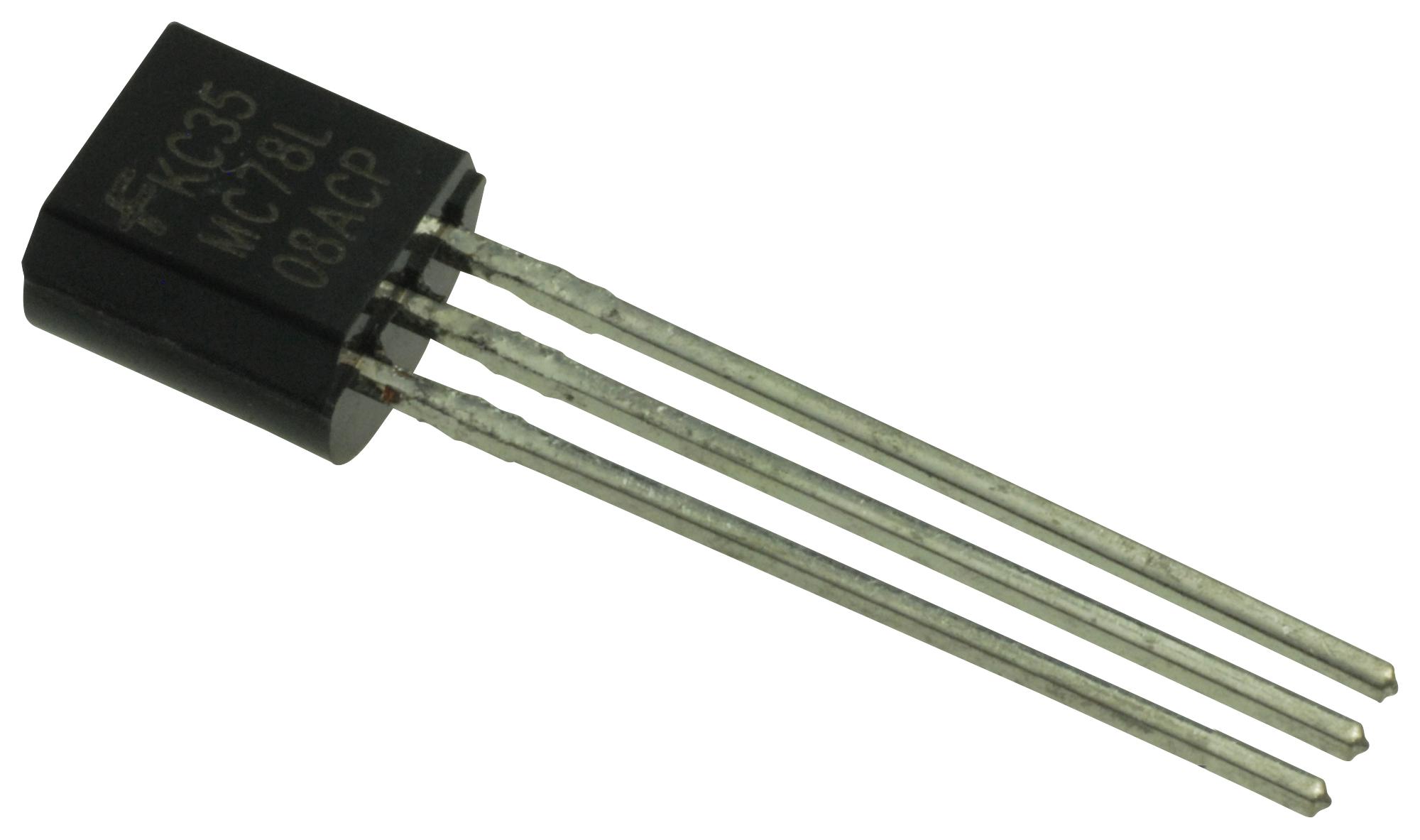

ONSEMI MC78L08ACP Voltage Regulator
The MC78L08ACP is a three-terminal, 0.1A positive voltage regulator in a monolithic integrated circuit package. It provides a fixed output voltage with a tolerance of ±5%, suitable for applications requiring supplies up to 100mA. Key features include thermal overload protection, short-circuit current limiting, a maximum junction temperature of 150°C, and a dropout voltage of approximately 1.7V at 25°C. This voltage regulator is ideal for general-purpose use across various industrial applications.
ONSEMI MC78L08ACP Voltage Regulator Specifications:
- Maximum Output Current: 100 mA
- Output Voltage: 8 V ±5%
- Thermal Overload Protection: Yes
- Short-Circuit Current Limiting: Yes
- Maximum Junction Temperature: 150°C
- Dropout Voltage: ~1.7V at 25°C
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: -65°C to +150°C
- Thermal Resistance, Junction-Case: 50°C/W (TO-92)
- Power Dissipation: Pp < 0.75 W
Buy the Fairchild MC78L08ACP – Reliable Voltage Regulator for Industrial Applications
Order the Fairchild MC78L08ACP voltage regulator online today and ensure stable power delivery for your industrial projects. Featuring thermal overload protection, short-circuit current limiting, and a maximum junction temperature of 150°C, this device guarantees reliable operation at up to 100mA output current. With a dropout voltage of approximately 1.7V at 25°C, it offers excellent performance for various applications. Purchase now to enhance your system’s stability, safety, and efficiency with this trusted power regulation component.
Buy Fairchild MC78L08ACP now and experience unmatched reliability and performance in voltage regulation for industrial systems.
Frequently Asked Questions
Where can I buy ONSEMI MC78L08ACP?
You can click on the BUY or RFQ button to purchase MC78L08ACP from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78L08ACP?
You can download the MC78L08ACP datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78L08ACP?
ONSEMI
