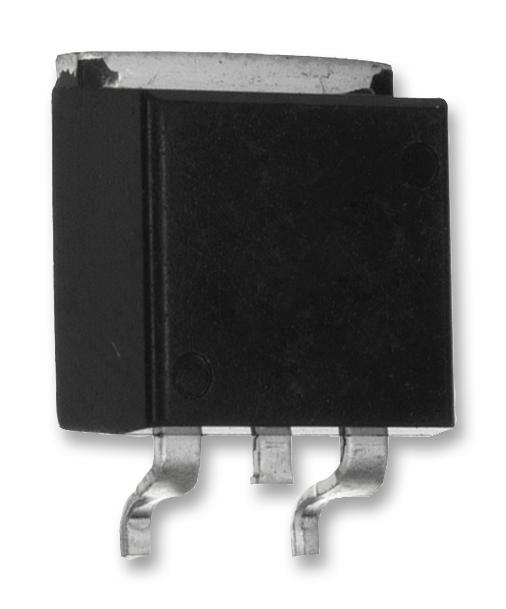

ONSEMI MC78M09BDTRKG Voltage Regulator
The MC78M09BDTRKG is a high-reliability, low-noise, positive voltage regulator designed for various electronic applications. It provides a stable 9.0 V output with a maximum current capability of 700 mA when adequately heat sunk. Features include internal short circuit protection, thermal shutdown, and safe-area pass transistor compensation, ensuring rugged operation in automotive and industrial environments. Packaged in a Pb-Free DPAK-3 case, it supports operating temperatures from -40°C to +125°C. Its precise regulation and high ripple rejection make it ideal for sensitive circuits requiring consistent power supply.
ONSEMI MC78M09BDTRKG Voltage Regulator Specifications:
- Output Voltage: 9.0 V
- Maximum Output Current: 700 mA
- Input Voltage Range: 11V to 24V (up to 35V transient)
- Operating Temperature Range: -40°C to +125°C
- Safe Operating Area Compensation
- Thermal Shutdown and Short Circuit Protection
- Package: Pb-Free DPAK-3
- Thermal Resistance, junction-to-case: 50°C/W
- Thermal Resistance, junction-to-air: 92°C/W
- Maximum Power Dissipation: internally limited
- Dimensions: Case 369C, typical size 6.20 x 6.17 mm
Buy the On Semiconductor Series NCV78M00 9V Voltage Regulator: MC78M09BDTRKG
Enhance your electronic projects with the high-quality MC78M09BDTRKG positive voltage regulator. Offering a stable 9V output at 700mA, this device includes internal short circuit and thermal protection, ensuring durability and safety. Its wide operating temperature range from -40°C to +125°C makes it suitable for automotive, industrial, and portable applications. With a Pb-Free DPAK-3 package, it guarantees compliance with environmental standards. Order online now to experience the dependable power regulation that meets your demanding project requirements and ensures optimal performance.
Order your On Semiconductor Series NCV78M00 9V voltage regulator MC78M09BDTRKG today and ensure reliable power management with high accuracy and robust protection features.
Frequently Asked Questions
Where can I buy ONSEMI MC78M09BDTRKG?
You can click on the BUY or RFQ button to purchase MC78M09BDTRKG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78M09BDTRKG?
You can download the MC78M09BDTRKG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78M09BDTRKG?
ONSEMI
