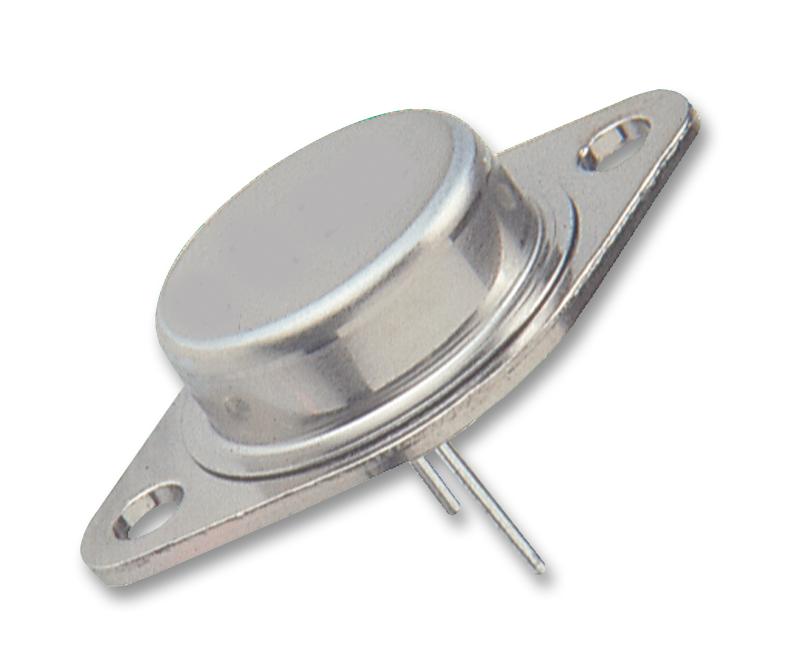

ONSEMI MJ11015G power transistor
The MJ11015G is a high-current, complementary silicon power transistor suitable for use as output devices in general-purpose amplifier applications. Featuring high DC current gain of at least 1000 at 20 A, it has monolithic construction with built-in base-emitter shunt resistor, junction temperature up to +200°C, and maximum collector-emitter voltage of 120 V. Encased in TO-3 package, these transistors are designed for reliable operation at high voltages and currents, making them ideal for power switching and amplification in industrial electronics.
ONSEMI MJ11015G power transistor Specifications:
- Collector-Emitter Voltage: 120 V
- Collector-Base Voltage: 120 V
- Emitter-Base Voltage: 5 V
- Collector Current: 30 A
- Total Device Dissipation: 200 W
- Junction Temperature Range: -85°C to +200°C
- Thermal Resistance, Junction-to-Case: 0.87 °C/W
- Maximum Lead Temperature: 275 °C
- Package: TO-3
- Built-in Base Emitter Shunt Resistor
- High DC Current Gain: Minimum 1000 at 20 A
- Maximum Collector-Emitter Voltage: 120 V
Buy the ON Semiconductor Series Power Transistor: MJ11015G
Purchase the ON Semiconductor MJ11015G power transistor online to ensure reliable high-current switching and amplification. Designed for industrial applications, it offers high DC gain, voltage ratings up to 120 V, and dissipation capacity of 200 W. Its TO-3 package provides robustness, thermal stability, and ease of installation. Ideal for power supply, motor control, and high-performance amplifiers, this transistor guarantees efficient operation and durability under demanding conditions. Buy online today for fast delivery and optimal performance in your electronic projects.
Get ON Semiconductor MJ11015G today—built for precision, high current handling, and long-lasting durability in industrial power applications.
Frequently Asked Questions
Where can I buy ONSEMI MJ11015G?
You can click on the BUY or RFQ button to purchase MJ11015G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MJ11015G?
You can download the MJ11015G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MJ11015G?
ONSEMI
