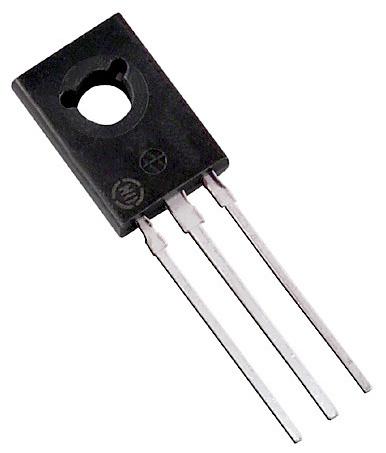

ONSEMI MJE180G Power Transistor
The MJE180G is a complementary silicon power transistor designed for low power audio amplification and high-speed switching applications. It features high DC current gain, high current-bandwidth product, and an annular construction for low leakages, meeting UL 94 V-0 flammability standards. The device operates over -65°C to +150°C junction temperature range, supports collector-emitter voltages up to 80V, and can handle a continuous collector current of 3A. Its compact TO-225 package makes it suitable for power switching, audio, and industrial control systems, ensuring reliable performance in demanding environments.
ONSEMI MJE180G Power Transistor Specifications:
- Collector-Base Voltage: 60V to 100V depending on model
- Collector-Emitter Voltage: 40V to 80V depending on model
- Emitter-Base Voltage: 7.0V
- Collector Current - Continuous: 3.0A
- Peak Collector Current: 6.0A
- Total Power Dissipation: 12.5W at 25°C, derates above 25°C
- Operating Junction Temperature: -65°C to +150°C
- Thermal Resistance, Junction-to-Case: 10°C/W
- Thermal Resistance, Junction-to-Ambient: 83.4°C/W
- Package: TO-225 case style
- Material: Epoxy meets UL 94 V-0, Pb-Free, RoHS compliant
- Switching times and safe operating area curves provided in datasheet
- Supports high speed switching and power amplification applications
Buy the ON Semiconductor MJE180G – Reliable Power Transistor for Industrial Applications
Purchase the ON Semiconductor MJE180G power transistor online to ensure efficient power switching and amplification in your industrial or audio projects. This high-quality device offers high current gain, low leakage, and UL 94 V-0 flammability rating, making it ideal for demanding environments. With a collector-emitter voltage of up to 80V and continuous collector current of 3A, it provides reliable performance for power supplies, industrial controls, and audio amplifiers. Order now to enhance your system’s performance with this durable and ROHS-compliant component.
Buy ON Semiconductor MJE180G now and experience unmatched reliability and high-performance power switching suitable for industrial and audio systems.
Frequently Asked Questions
Where can I buy ONSEMI MJE180G?
You can click on the BUY or RFQ button to purchase MJE180G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MJE180G?
You can download the MJE180G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MJE180G?
ONSEMI
