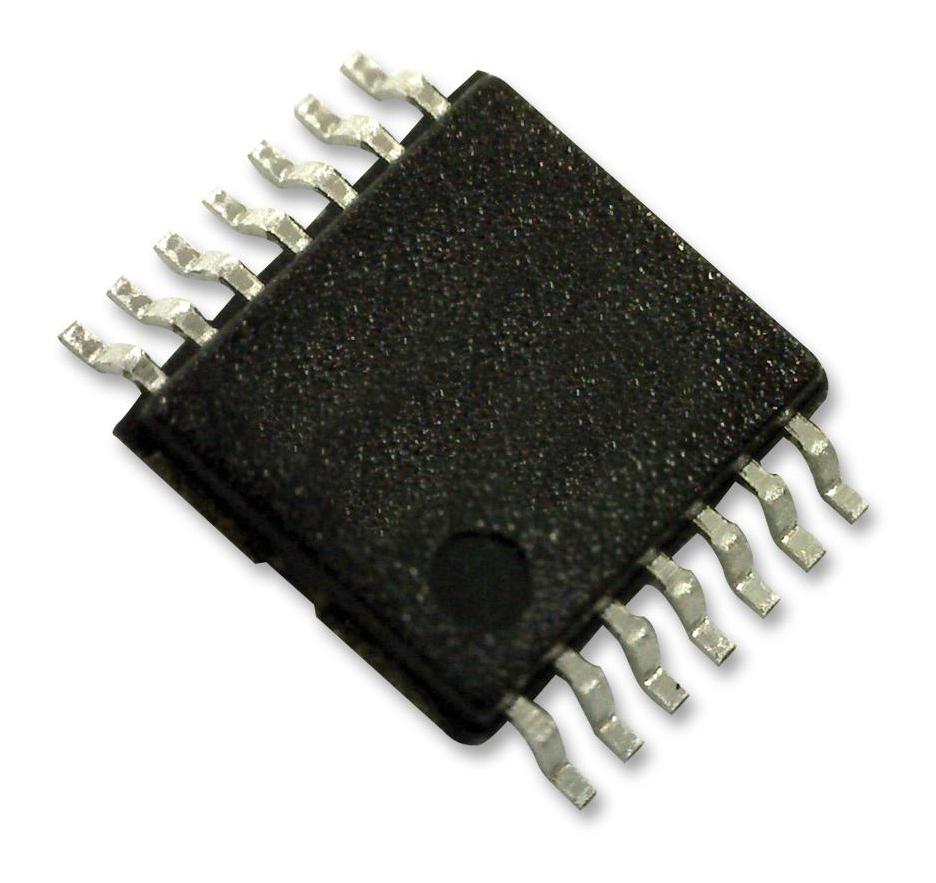

ONSEMI MM74HC08MTCX Quad Logic Gate
The MM74HC08 is a quad 2-input AND gate featuring advanced silicon CMOS technology for high-speed operation comparable to LS-TTL gates, coupled with low power consumption. It offers buffered outputs with high noise immunity, capable of driving 10 LS-TTL loads, and is pin-compatible with the 74LS family. The device is protected against static discharge via internal diode clamps and is available in various packages including SOIC, SOP, TSSOP, and PDIP. It operates over a wide temperature range with low quiescent and input current, suitable for various digital logic applications.
ONSEMI MM74HC08MTCX Quad Logic Gate Specifications:
- Supply Voltage: 2V to 6V
- Input Voltage: 0V to Vcc
- Output Voltage: 0V to Vcc
- Maximum Input Capacitance: 10 pF
- Power Dissipation: 600mW (max), 500mW (S.O. Package)
- Propagation Delay: 7ns (LOW-to-HIGH), 12ns (HIGH-to-LOW)
- Operating Temperature: -40°C to +85°C
- Package Options: SOIC, SOP, TSSOP, PDIP
- Input Current: Max 1μA at room temperature
- Sink/Source Current per pin: Max 25mA
Buy the Fairchild MM74HC08 – Reliable Logic Gate for Industrial Applications
Enhance your digital circuitry with the reliable MM74HC08 quad 2-input AND gate, featuring CMOS technology for high speed and low power consumption. Perfect for industrial automation, digital logic design, and embedded systems, this device provides buffered outputs, static protection, and wide temperature operation from -40°C to +85°C. Available in various packages, it ensures versatility and durability in demanding environments. Order online now to get immediate access to high-quality logic components that optimize performance in your projects and streamline your manufacturing process.
Order your Fairchild Series MM74HC08 today and enhance your digital projects with dependable, high-speed logic gating solutions for industrial use.
Frequently Asked Questions
Where can I buy ONSEMI MM74HC08MTCX?
You can click on the BUY or RFQ button to purchase MM74HC08MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM74HC08MTCX?
You can download the MM74HC08MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM74HC08MTCX?
ONSEMI
