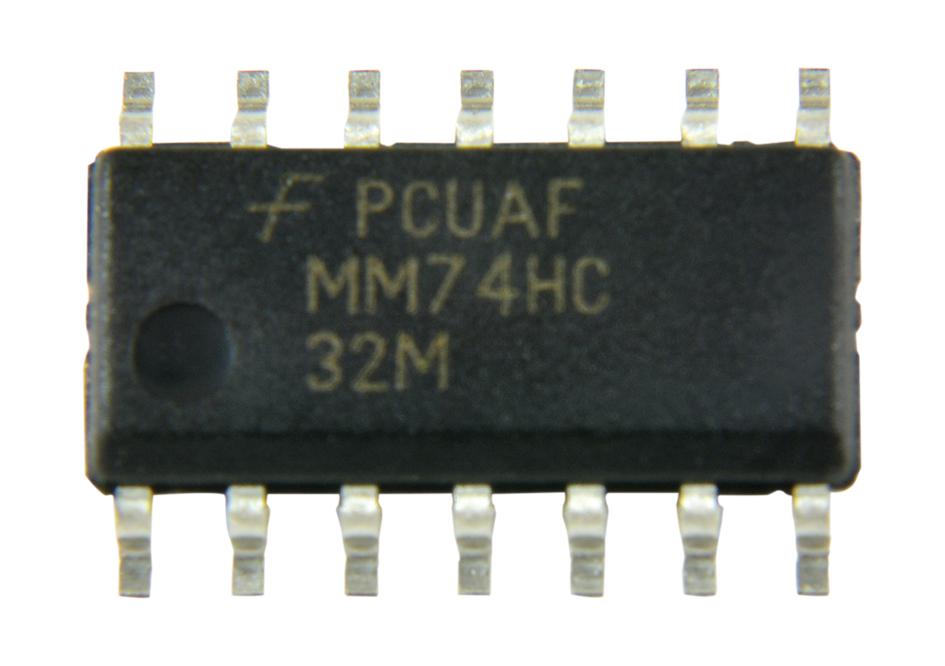

ONSEMI MM74HC32M Quad OR Gate
The MM74HC32M is a quad 2-input OR gate utilizing advanced silicon-gate CMOS technology, providing high-speed operation comparable to LS-TTL devices while maintaining low power consumption typical of standard CMOS circuits. Each gate has buffered outputs offering high noise immunity and the capability to drive up to 10 LS-TTL loads. The 74HC logic family is compatible in function and pin configuration with the 74LS family. Inputs are protected from static discharge damage through internal diode clamps to VCC and ground. The key features include a 10 ns propagation delay, a maximum low quiescent current of 20µA, and a maximum low input current of 1µA. This device is suitable for a variety of industrial applications.
ONSEMI MM74HC32M Quad OR Gate Specifications:
- Power Supply Voltage: 2V-6V
- Propagation Delay: 10ns typical
- Output Drive Capability: Up to 10 LS-TTL loads
- Input Voltage Range: 0V to VCC
- Maximum Quiescent Current: 20µA
- Maximum Input Current: 1µA
- Package Types: SOIC, SOP, TSSOP, PDIP
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -65°C to +150°C
- Lead Soldering Temperature: 260°C for 10 seconds
- Voltage Ratings: VCC -0.5V to +7V
- DC Output Voltage: 0V to VCC
- Input Protection: Internal diode clamps to VCC and ground
- Device Type: Quad 2-input OR gate
- Technology: CMOS silicon-gate
- Package Dimensions: Varies by package type, standard SOIC, SOP sizes
- Power Dissipation: 600mW per device
- Static Protection: Yes, internal diode clamps
Buy the ON Semiconductor Series HC32 OR Gate: MM74HC32M
Purchase the ON Semiconductor Series HC32 MM74HC32M quad 2-input OR gate online today and enhance your circuit design with high-speed CMOS logic. Featuring buffered outputs for high noise immunity, it drives up to 10 LS-TTL loads, with a propagation delay of just 10 nanoseconds. Its low power consumption, maximum quiescent current of 20 microamps, and static discharge protection make it ideal for a wide range of industrial, computing, and consumer applications. Secure your supply today and ensure reliable, efficient digital performance.
Order your ON Semiconductor Series HC32 MM74HC32M quad 2-input OR gate today and give your digital projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy ONSEMI MM74HC32M?
You can click on the BUY or RFQ button to purchase MM74HC32M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM74HC32M?
You can download the MM74HC32M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM74HC32M?
ONSEMI
