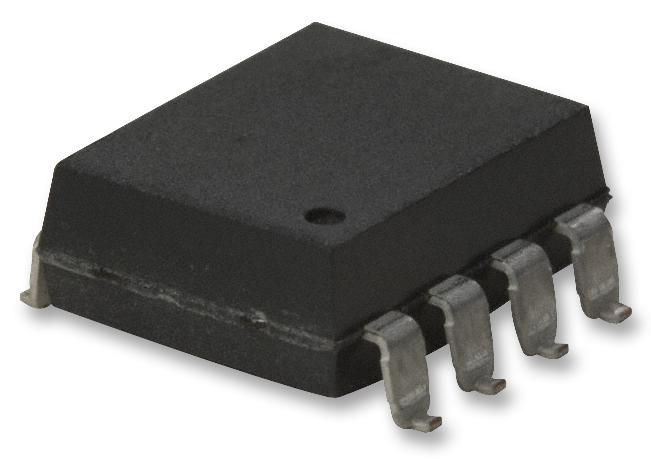

ONSEMI MOC217R2M Optocoupler
The MOC217R2M is a compact, surface-mount optocoupler with a gallium arsenide infrared LED and a silicon phototransistor detector, rated for up to 565 V peak insulation. Suitable for high-density applications, it provides reliable electrical isolation and is ideal for feedback control, system interfacing, and switching circuits. Engineered for safety, it features UL1577 and IEC60747-5-5 approvals, with a 2,500 VACrms withstand voltage, making it a dependable component for industrial and electronic circuit isolation and coupling tasks.
ONSEMI MOC217R2M Optocoupler Specifications:
- Mechanical Package: SOIC-8 surface-mount, with 0.050" lead spacing
- Peak Insulation Voltage: 565 Vpeak
- Isolation Voltage: 2500 VACrms (1 minute)
- Input Current: 200 mA maximum
- Collector-Emitter Voltage: 30 V
- Emitter-Collector Voltage: 7 V
- LED Forward Voltage (IF=10 mA): 1.8 V
- Collector Current: 150 mA typical
- Total Device Power Dissipation: 240 mW at 25°C
- Operational Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +125°C
- Solder Temperature: 260°C for 10 seconds
- Safety Certifications: UL1577, IEC60747-5-5
- Creepage and Clearance: 24 mm
- Case Temperature Limit: 150°C
Buy the ON Semiconductor Series MOC217M Optocoupler: MOC217R2M
Order the ON Semiconductor MOC217R2M optocoupler online today and ensure your circuits have reliable electrical isolation. Its high insulation voltage and safety certifications make it perfect for industrial, feedback, and switching applications. Featuring UL and IEC approvals, it provides excellent performance in compact surface-mount packages that facilitate high-density designs. Secure your supply chain and upgrade your electronics with this trusted, high-quality optocoupler, and enjoy fast delivery and competitive prices for all your industrial automation and electronic circuit needs.
Buy ON Semiconductor MOC217R2M now and experience unmatched reliability and performance in electrical isolation and signal coupling applications.
Frequently Asked Questions
Where can I buy ONSEMI MOC217R2M?
You can click on the BUY or RFQ button to purchase MOC217R2M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC217R2M?
You can download the MOC217R2M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC217R2M?
ONSEMI
