ONSEMI MUN2113T1G Digital Transistor
This digital transistor series features integrated monolithic bias network, replacing external resistors to simplify circuit design, save space, and lower costs. Suitable for automotive and industrial applications, these Pb-Free, RoHS-compliant devices offer maximum ratings of 50V collector-base and collector-emitter voltages, 100mA collector current, and support high-temperature ranges up to 150°C. Available in various packages including SC-59, SOT-23, and SOT-1123, they provide reliable performance for switching and amplification tasks in compact circuit layouts, complying with industry standards like AEC-Q101 qualification.
ONSEMI MUN2113T1G Digital Transistor Specifications:
- Collector-Base Voltage: 50 V
- Collector-Emitter Voltage: 50 V
- Collector Current: 100 mA
- Input Forward Voltage: 40 V
- Input Reverse Voltage: 10 V
- Total Device Dissipation (SC-59): 230 mW
- Junction to Ambient: 540 °C/W
- Maximum Storage Temperature: -55°C to +150°C
- Package Types: SC-59, SOT-23, SOT-1123, SOT-723, SC-70
- RoHS, Pb-Free, Halogen-Free, BFR-Free
- Maximum Power Dissipation varies by package, e.g., 230mW for SC-59, 246mW for SOT-23
- Operating and storage temperature range: -55°C to +150°C

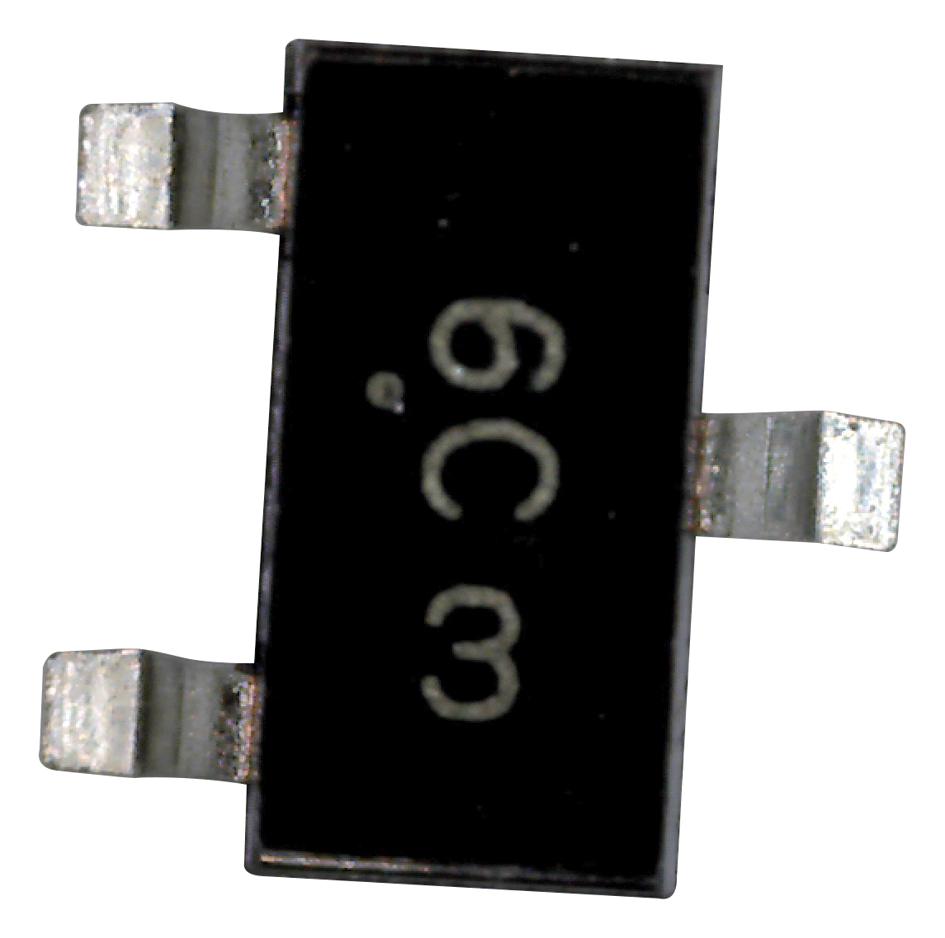

Buy the Buy ON Semiconductor Digital Transistor Part Number MUN2113T1G Online
Purchase the ON Semiconductor Digital Transistor MUN2113T1G online now to enhance your circuit design with space-saving, reliable, and cost-effective switching components. These devices feature integrated bias networks, reducing component count and simplifying assembly. Suitable for automotive, industrial, and general electronics, they offer high voltage and current ratings, excellent thermal performance, and RoHS compliance. Conveniently available in multiple packages like SC-59, SOT-23, and SOT-1123, ensure optimal performance for your high-reliability applications by ordering today for fast delivery and competitive pricing.
Get ON Semiconductor MUN2113T1G today—compact digital transistor with integrated bias network, ideal for space-saving and reliable electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI MUN2113T1G?
You can click on the BUY or RFQ button to purchase MUN2113T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MUN2113T1G?
You can download the MUN2113T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MUN2113T1G?
ONSEMI
