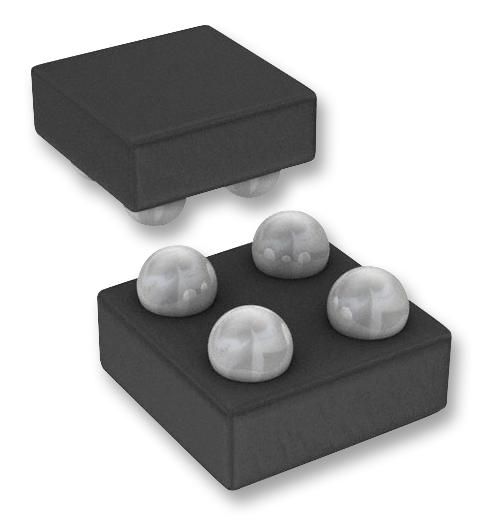

ONSEMI NCP335FCT2G High-Side Load Switch
The NCP334 and NCP335 are ultra-small, high-side P-channel MOSFET load switches designed for portable electronic devices. Operating from 1.2 V to 5.5 V, they support up to 2 A current with low Ron resistances. The NCP335 features an embedded auto-discharge path to eliminate residual voltage on the load. With minimal footprint WLCSP4 packages, these switches optimize battery life and device autonomy by minimizing leakage currents and enabling efficient power management in mobile phones, tablets, cameras, and GPS devices. They feature an active high enable pin, ESD protection, and are Pb-Free.
ONSEMI NCP335FCT2G High-Side Load Switch Specifications:
- Operating Voltage Range: 1.2 V to 5.5 V
- Maximum DC Load Current: 2 A
- On-Resistance: 38 mΩ at 3.3 V
- Package: WLCSP4 0.96 x 0.96 mm, 0.5 mm pitch
- ESD Ratings: 4 kV Human Body Model, 2 kV CDM
- Maximum Junction Temperature: 125°C
- Storage Temperature Range: -40°C to +150°C
- Power Dissipation: 0.5 W in 85°C package
- Input Voltage (Vin): 1.2 V to 5.5 V
- Enable Pin Voltage: 0 to 5.5 V, Active High
- Gate Threshold: Not specified but typical switching at Vin > 1.2 V
- Decoupling Capacitors: 1 μF recommended at IN and OUT
- ESD Protections: Human Body Model 4 kV, Machine Model 250 V, CDM 2 kV
- Pb-Free: Yes
Buy the On Semiconductor Series NCP Load Switch: NCP334 and NCP335
Purchase ON Semiconductor NCP334 and NCP335 high-side load switches online today to optimize power management in your portable and battery-powered devices. These ultra-small, low Ron resistance switches support up to 2 A currents within a 0.96 x 0.96 mm WLCSP4 package, providing an excellent solution for mobile applications. Featuring auto-discharge capabilities (NCP335), active high enable pin, ESD protection, and Pb-Free manufacturing, they ensure energy efficiency, durability, and device longevity. Order now and enhance your product’s power handling and reliability.
Buy ON Semiconductor NCP334 and NCP335 load switches now and experience unmatched power efficiency, compact design, and reliable performance for portable applications.
