ONSEMI NL3S22AHMUTAG High-Speed Data and Audio Switch
The NL3S22AH and NL3S22UH are high-performance, double-pole/double-throw analog switches designed for routing high-speed differential data and audio signals. These compact, Pb-free, RoHS, halogen-free devices support USB 2.0 data rates up to 480 Mbps and feature low ON-resistance, high bandwidth, and ESD protection up to 2 kV. The switches are suitable for use in smartphones, tablets, USB peripherals, and audio/high-speed data switching applications, offering reliable, low-distortion signal paths with minimal crosstalk and insertion loss.
ONSEMI NL3S22AHMUTAG High-Speed Data and Audio Switch Specifications:
- Vcc Range: 2.7 V to 3.6 V
- Control Pins Compatible with 1.8 V Interfaces
- Icc: 60 WA (Typ)
- ESD Performance: 2 kV HBM

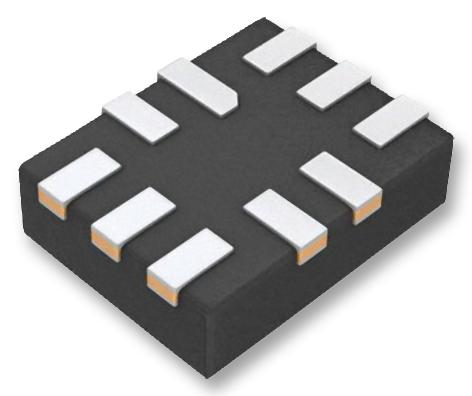

- Available in 1.4 mm x 1.8 mm UQFN10 package
- High Speed Data Path: Data rate up to 480 Mbps, bandwidth >811 MHz
- Audio Path: Pass signals with negative voltages as low as 3 V below ground
- On Resistance (Rps(on)): 5.4 Q (Typ)
- Shunt Resistance (Rg): 0.56 Q (Typ)
- Input Signal Range: 0 V to 3.7 V for data, -3 V to 3 V for audio
- Operational Temperature: -40°C to +85°C
- Maximum Ratings: Vcc up to 44.2 V, ESD protection 2 kV HBM
- Tolerates Vcc transient voltage up to 44.2 V
- Lead Temperature for 10s: 260°C
Buy the ON Semiconductor NL3S22AH – Reliable USB 2.0 and Audio Switch for Industrial Applications
Secure your high-speed data routing and audio switching needs with ON Semiconductor NL3S22AH. Designed for USB 2.0 compliance, it ensures robust, interference-free signals for smartphones, tablets, and various consumer electronics. Its compact UQFN10 package, low ON-resistance, high bandwidth, and excellent ESD protection guarantee durable performance in demanding environments. Whether upgrading existing systems or designing new applications, purchase NL3S22AH online for dependable, industry-grade switching solutions. Enjoy quick delivery and technical support for your next project.
Buy ON Semiconductor NL3S22AH now and experience unmatched reliability and high-speed data switching suitable for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy ONSEMI NL3S22AHMUTAG?
You can click on the BUY or RFQ button to purchase NL3S22AHMUTAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NL3S22AHMUTAG?
You can download the NL3S22AHMUTAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NL3S22AHMUTAG?
ONSEMI
