ONSEMI NLSX4373MUTAG Level Translator
The NLSX4373 is a 2-bit configurable dual-supply bidirectional level translator with automatic sensing, operating over a wide Vcc range of 1.5 V to 5.5 V. It supports open-drain outputs with integrated 10 kΩ pullup resistors, ideal for low-voltage communication protocols like I2C, SMBus, and PMBus. The device ensures high-speed data transfer up to 20 Mb/s, features overvoltage tolerant enable and I/O pins, and is suitable for mobile devices, ASIC level translation, and automotive applications. Compact packages include UDFN8, SO-8, and Micro8, with robust ESD protection.
ONSEMI NLSX4373MUTAG Level Translator Specifications:
- Supply Voltage Range: 1.5 V to 5.5 V
- Data Rate: 20 Mb/s
- Open-Drain Outputs with 10 kΩ pullup resistors
- Wide Operating Temperature: -40°C to +85°C
- ESD Protection: >7000 V Human Body Model
- Packages: UDFN8, SO-8, Micro8
- Overvoltage Tolerance: Yes, on I/O and Enable pins
- Power-up Sequencing: Nonpreferential
- Maximum Rated Voltages: Vcc and Vy up to 7.0 V
- Input Voltage HIGH: VOc - 0.4 V, Vcc - 2/3 V
- Input Voltage LOW: 0.15 V
- Propagation Delay: 15-20 ns depending on Vcc/Vy levels
- Maximum Short Circuit: 40 mA
- Device is Pb-Free and AEC-Q100 qualified

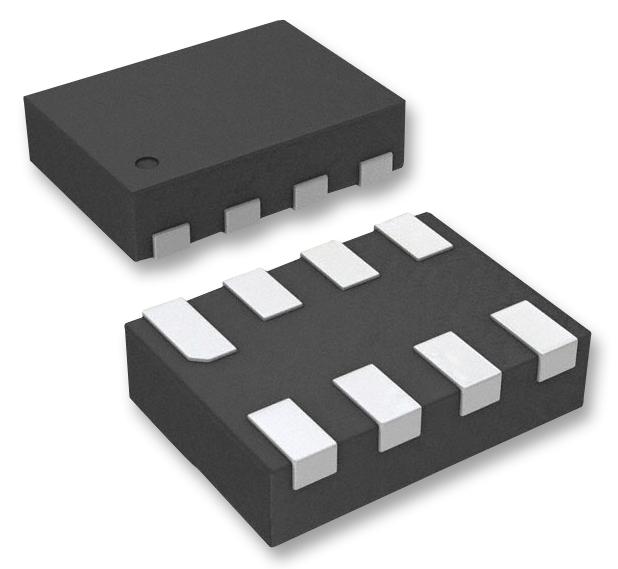

Buy the ON Semiconductor NLSX4373 – Reliable Level Translator for Industrial Applications
Enhance your electronic systems with the reliable NLSX4373 dual-supply level translator. Operate seamlessly over a wide voltage range from 1.5 V to 5.5 V, supporting high data rates of 20 Mb/s. Its open-drain architecture with integrated 10 kΩ pullup resistors makes it ideal for I2C, SMBus, and automotive communication. Compact packages, overvoltage tolerant I/O, and low power consumption ensure top performance in low-voltage, high-speed applications. Purchase online today for dependable and efficient voltage translation in industrial and consumer electronics.
Order your ON Semiconductor NLSX4373 level translator today and ensure robust, high-speed voltage level shifting for your industrial and communication projects.
