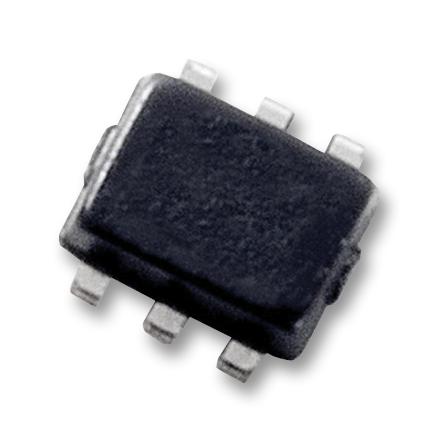

ONSEMI NST3946DP6T5G Dual Transistor
The NST3946DP6T5G is a dual general purpose transistor in a compact SOT-963 package, combining PNP and NPN transistors for surface-mount applications. Designed for low-power amplification, it features high collector-emitter voltage ratings of 40 V and 60 V, and offers low saturation voltages suitable for various electronic circuits. Its robust thermal and electrical characteristics, including a maximum collector current of 200 mA, make it ideal for space-constrained designs requiring reliable transistor performance, especially in automotive and industrial applications. Pb-Free, RoHS compliant, and qualified for demanding environments.
ONSEMI NST3946DP6T5G Dual Transistor Specifications:
- Collector-Emitter Voltage: 40 V
- Collector-Base Voltage: 60 V
- Emitter-Base Voltage: 6.0 V
- Collector Current: 200 mA
- Total Device Dissipation (Dual Heated): 350 mW @ 25°C
- Thermal Resistance Junction-to-Ambient: 357°C/W
- Pb-Free, Halogen Free, RoHS Compliant
- Package: SOT-963, Case 527AD
- Maximum junction temperature: +150°C
- Electrostatic Discharge: 2 kV (HBM)
- Storage Temperature Range: -55°C to +150°C
Buy the Buy ON Semiconductor NST3946DP6T5G Part Number NST3946DP6T5G Online
Purchase the ON Semiconductor NST3946DP6T5G dual transistor online for space-efficient, reliable amplification in various electronic applications. This product features high collector-emitter voltage of 40 V and 60 V, with a maximum collector current of 200 mA, making it suitable for compact designs in automotive, industrial, and consumer electronics. Its low saturation voltages and RoHS compliance ensure optimal circuit performance and environmental safety. Available in a SOT-963 surface-mount package, this device is ideal for applications demanding space conservation without compromising on quality or endurance.
Order your ON Semiconductor NST3946DP6T5G dual surface-mount transistors today and enhance your electronic designs with reliable, space-saving components.
Frequently Asked Questions
Where can I buy ONSEMI NST3946DP6T5G?
You can click on the BUY or RFQ button to purchase NST3946DP6T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NST3946DP6T5G?
You can download the NST3946DP6T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NST3946DP6T5G?
ONSEMI
