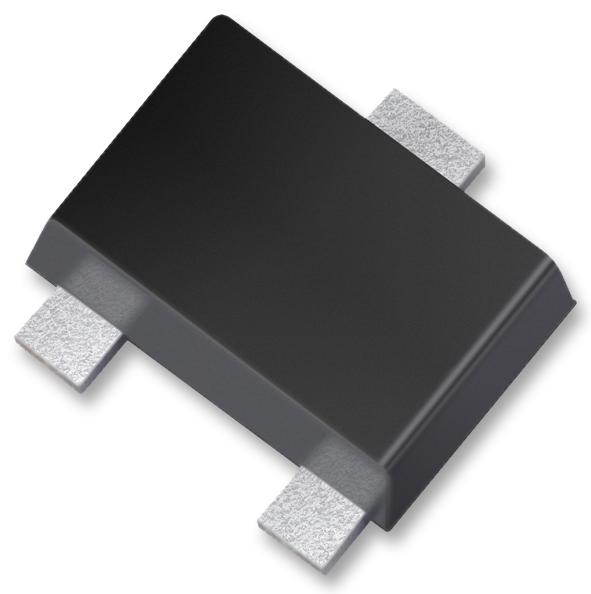

ONSEMI NTK3134NT5G Power MOSFET
The NTK3134N is a compact, single N-Channel Power MOSFET designed for load and power switching, interface switching, and battery management in compact electronics. Operating at low gate voltages, it features low Rps(on), high current capacity, and ESD protection, making it suitable for portable device applications. Its small footprint, proven reliability, and RoHS compliance ensure efficient performance in various electronics systems, offering reduced size and weight without compromising power efficiency or thermal management, ideal for densely packed electronic circuits.
ONSEMI NTK3134NT5G Power MOSFET Specifications:
- Drain-to-Source Voltage: 20 V
- Gate-to-Source Voltage: +6 V
- Continuous Drain Current at 25°C: 890 mA
- Continuous Drain Current at 85°C: 640 mA
- Pulsed Drain Current: 18 A
- Power Dissipation at 25°C: 450 mW
- Thermal Resistance Junction-to-Ambient: 280 °C/W
- Maximum Junction Temperature: 150 °C
- Lead Soldering Temperature: 260 °C for 10 s
- Package Type: SOT-723
- Gate Threshold Voltage: 0.45 V to 1.2 V
- On-Resistance (Vgs=4.5V): 0.2 Ω to 0.35 Ω
- Gate Leakage Current: <0.5 μA
- Capacitance (Ciss): 79 pF to 120 pF
- Switching Delay Time: ~67 ns to turn-on, 17.3 ns delay off
- Reverse Recovery Time: 84 ns
- Size: Small footprint, suitable for surface mounting with minimal space requirements
Buy the On Semiconductor Series NTK Power MOSFET: NTK3134N
Purchase the On Semiconductor NTK3134N Power MOSFET online today and enhance your electronic projects with a reliable, high-performance component. This MOSFET offers low Rps(on), high current capacity, and excellent thermal management in a compact SOT-723 package, ideal for portable electronics, load switching, and battery management. Its low gate voltage operation makes it compatible with logic-level circuits, ensuring energy-efficient switching in space-constrained designs. Enjoy fast delivery and quality assurance when you buy from authorized online distributors and take your electronics to the next level.
Buy On Semiconductor NTK3134N now and experience unmatched reliability and performance in compact power switching solutions.
Frequently Asked Questions
Where can I buy ONSEMI NTK3134NT5G?
You can click on the BUY or RFQ button to purchase NTK3134NT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTK3134NT5G?
You can download the NTK3134NT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTK3134NT5G?
ONSEMI
