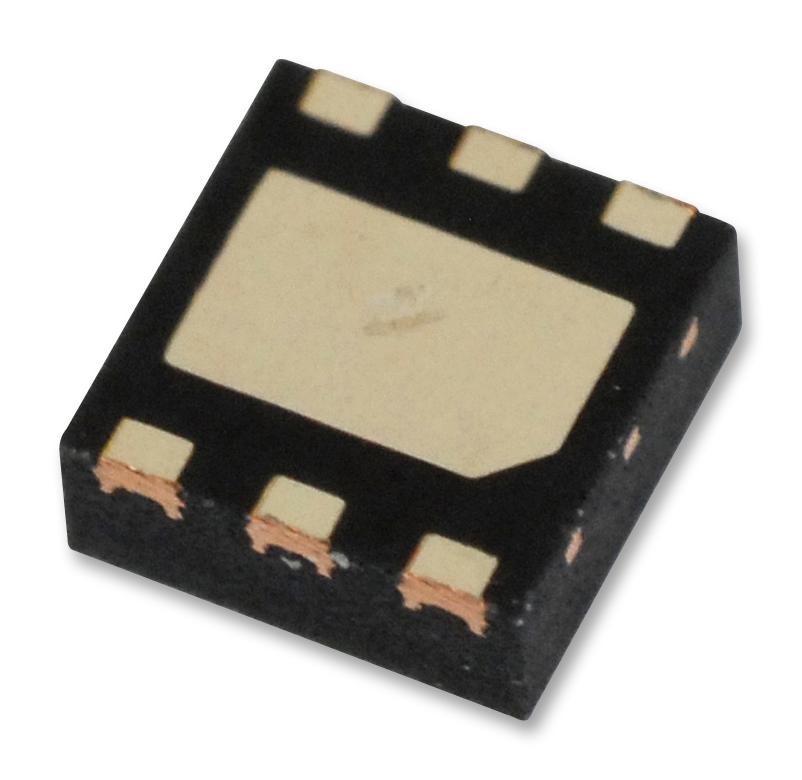

ONSEMI NUP3115UPMUTAG Transient Voltage Suppressor
The NUP3115UPMU is a low-capacitance transient voltage suppressor designed to protect high-speed data lines and power circuits from ESD and transient events. Featuring a compact UDFN6 package measuring 1.6 x 1.6 mm with a profile of only 0.50 mm, it provides excellent clamping capabilities, low leakage current, and fast response rates. Suitable for USB 2.0 high-speed interfaces, cell phones, MP3 players, and other sensitive electronic devices, it ensures reliable protection while occupying minimal PCB space. The device supports up to three data lines and a power line, with a stand-off voltage of 5.5 V and Vcc protection up to 15 V, making it ideal for slim electronic designs needing robust ESD immunity.
ONSEMI NUP3115UPMUTAG Transient Voltage Suppressor Specifications:
- Low Capacitance: 0.8 pF
- Package: UDFN6, 1.6 x 1.6 mm
- Profile: 0.50 mm
- Stand Off Voltage: 5.5 V
- Protection: Up to three data lines plus Vcc
- Vcc Protection: 15 V
- D,, D2, D3 Pins Protection: 6.4 V minimum
- Clamping Voltage: 3A surge at 22 V, 1A surge at 16 V
- Peak Pulse Current: 5.0 A
- Maximum Reverse Peak Pulse Current: 5.0 A
- Breakdown Voltage: 60–80 V (Di, D2, D3), 15–16 V (Vcc)
- IEC61000-4-2 ESD Protection Level: 4
- Maximum Reverse Leakage Current: 10 µA at Vawne
- Junction Capacitance: 8–10 pF at 0 V, 1 MHz
- Operating Junction Temperature Range: -40°C to 125°C
- Storage Temperature Range: -55°C to 150°C
- Maximum Soldering Temperature: 260°C (Pb-Free, 10 seconds)
Buy the Buy ON Semiconductor NUP3115UPMU Part Number NUP3115UPMU Online
Secure your electronic devices with the NUP3115UPMU, a compact low-capacitance transient voltage suppressor designed for high-speed data and power line protection. Its ultra-slim UDFN6 package ensures easy integration into space-constrained designs such as USB 2.0 interfaces, mobile phones, and MP3 players. With a stand-off voltage of 5.5 V and Vcc protection up to 15 V, it provides excellent ESD immunity, fast response, low leakage current, and optimal clamping, safeguarding sensitive circuits from voltage transients and electrostatic discharges in small footprint applications.
Buy ON Semiconductor NUP3115UPMU now and experience unmatched reliability and high-speed transient protection in ultra-slim packages.
