ONSEMI RSL10SIP001GEVB Wireless Development Module

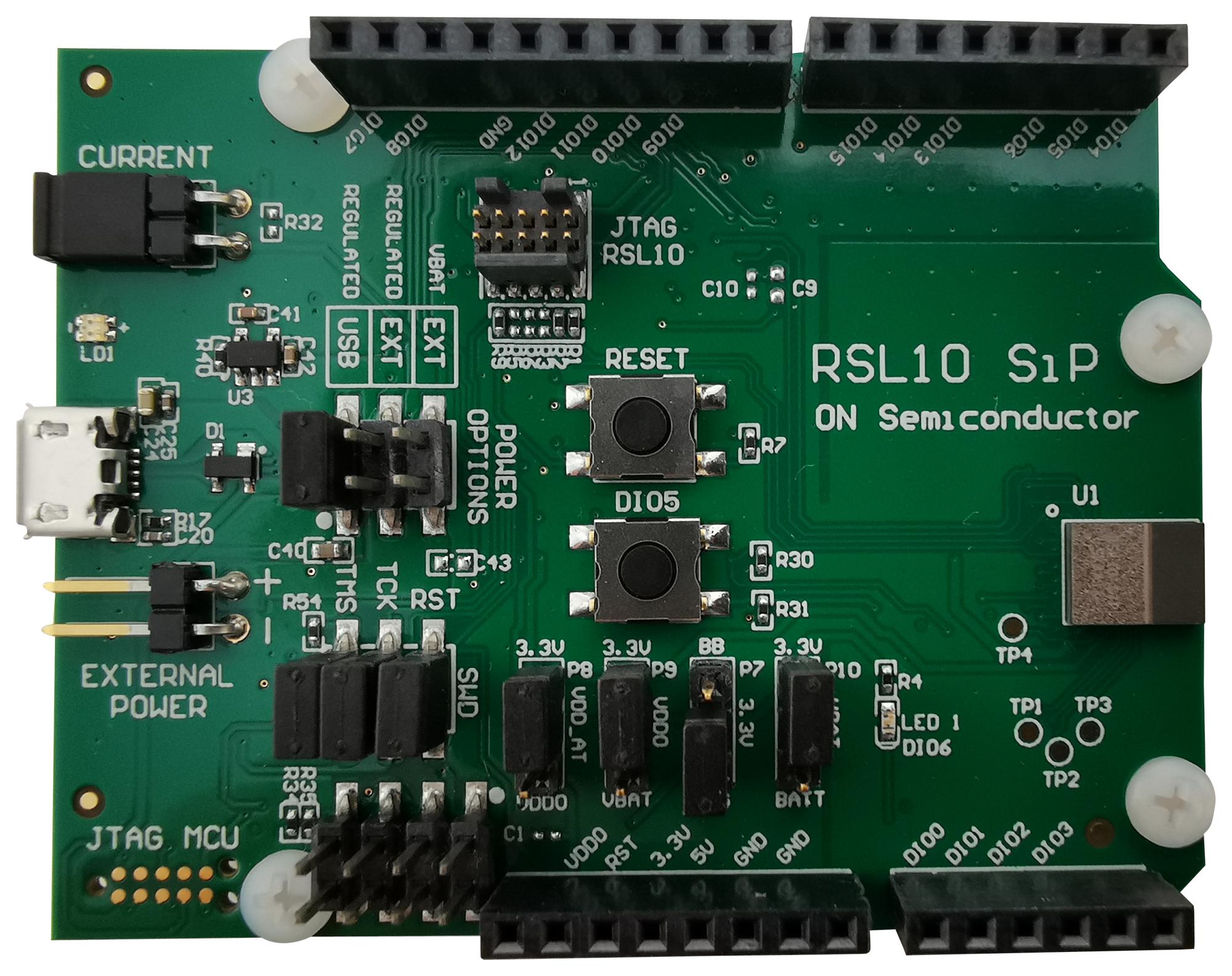

The RSL10 SIP Evaluation and Development Board is designed for evaluating the RSL10 SIP wireless module and facilitating application development. Equipped with standard headers for input/output connections, it features an onboard communication interface translating debug port signals to USB, along with a level shifter for voltage compatibility. The board supports various power sources including USB and external supplies, with options for regulated or unregulated inputs. It includes LEDs for status indication, current measurement headers, and a dedicated J-Link debugging interface, making it ideal for developers working on Bluetooth and RF applications.
ONSEMI RSL10SIP001GEVB Wireless Development Module Specifications:
- Power Sources: Micro USB with regulator, external power connector with or without regulator, unregulated external supply (3.3V to 12V), rechargeable battery
- Communication Interface: USB to debug port, supports J-Link SWJ-DP (JTAG/SWD)
- Voltage Levels: VDDO adjustable from 1.1 V to 3.3 V, VDDO and 3.3 V power rails, regulated or unregulated supply options
- I/O: 16 digital I/Os with multiplexed interfaces including I2C, SPI, UART, PWM, and PCM
- Level Translators: Supports bi-directional translation from 0.9 V to 4.5 V
- LED Indicators: Dual-color LED and green status LED
- Measurement: Headers for current consumption measurement, includes power regulation monitoring
- Physical Dimensions: Designed for Arduino form factor, headers for easy access
- On-Board Components: Onboard J-Link debugger, antenna included, multiple jumpers and headers for configuration
- Size: Compatible with Arduino form factor for integration
Buy the ON Semiconductor Series Evaluation Wireless Module: EVBUM2565
Purchase the ON Semiconductor Wireless Development Module today to streamline your Bluetooth and RF application development. This versatile evaluation board offers comprehensive connectivity options, onboard debugging, voltage level translation, and status indicators. Designed for compatibility with Arduino form factor, it simplifies integration into various projects. Whether you’re developing new wireless solutions or testing RF performance, this board provides the tools you need for precise measurement, easy configuration, and reliable operation—making it an ideal choice for engineers and developers.
Get ON Semiconductor RSL10 SIP Evaluation and Development Board today—perfect for Bluetooth performance testing, application development, and prototyping with versatile power options.
Frequently Asked Questions
Where can I buy ONSEMI RSL10SIP001GEVB?
You can click on the BUY or RFQ button to purchase RSL10SIP001GEVB from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RSL10SIP001GEVB?
You can download the RSL10SIP001GEVB datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RSL10SIP001GEVB?
ONSEMI
