ONSEMI TL431BCDR2G Adjustable Voltage Regulator
The TL431BCDR2G is a high-performance, adjustable shunt regulator with a 2.5 V reference and low dynamic impedance, suitable for power supplies, voltage monitor, and precision applications. It offers programmable output voltage up to 36 V, with a tolerance of ±0.4% at 25°C, ensuring stability and accuracy across various temperatures. The device operates with a wide current range of 1.0 mA to 100 mA, and features low output noise, making it ideal for precision control and regulation circuits. Its robust design includes Pb-Free, RoHS, and halogen-free compliance, suitable for automotive and industrial use, with multiple package options including SOIC-8, TO-92, and PDIP-8, for flexible integration.
ONSEMI TL431BCDR2G Adjustable Voltage Regulator Specifications:
- Reference Voltage: 2.47 - 2.52 V at 25°C with a tolerance of ±0.4%
- Output Voltage Programmable Up to 36 V
- Operating Current Range: 1.0 mA to 100 mA
- Dynamic Impedance: 0.22 Ω typical
- Temperature Coefficient: 50 ppm/°C typical
- Operating Temperature Range: -40°C to +125°C depending on variant
- Package options include SOIC-8, TO-92, PDIP-8
- Pb-Free, Halogen-Free, RoHS Compliant
- Low Output Noise Voltage
- Maximum Cathode to Anode Voltage: 37 V
- Total Power Dissipation varies with package (e.g., 0.70 W for D, LP suffix)
- Reference Input Voltage of approximately 2.495 V at 25°C
- Low temperature coefficient ensuring stable voltage reference over temperature
- Device features latch-up protection and withstands ESD ratings over 2000 V (HBM)
- Suitable for use in digital voltmeters, power supplies, op-amp circuitry, and feedback control systems

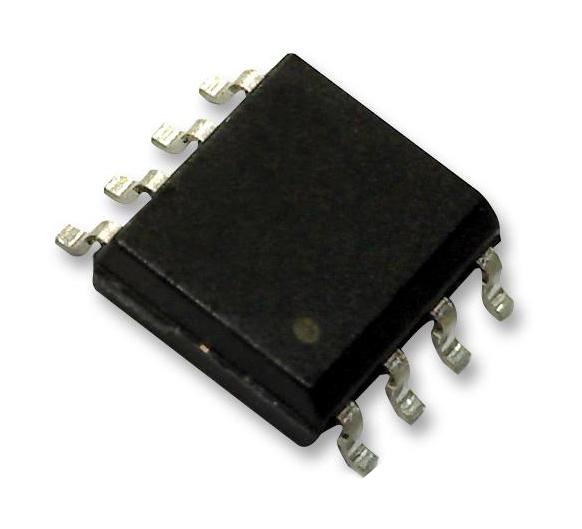

Buy the ON Semiconductor Series Programmable Reference: TL431BCDR2G
Enhance your electronic projects with the TL431BCDR2G adjustable voltage regulator from ON Semiconductor. This precision shunt regulator provides a stable 2.5 V reference that can be programmed up to 36 V. It offers low output noise, wide operational current range of 1.0 mA to 100 mA, and ensures high stability and accuracy over temperature variations. Its multiple package options, including SOIC-8, TO-92, and PDIP-8, make it ideal for power management, voltage monitoring, and control circuits, ensuring dependable performance for professional and hobbyist applications alike.
Order your ON Semiconductor Series TL431BCDR2G today and give your circuits the reliable, adjustable voltage reference they need for precise regulation.
