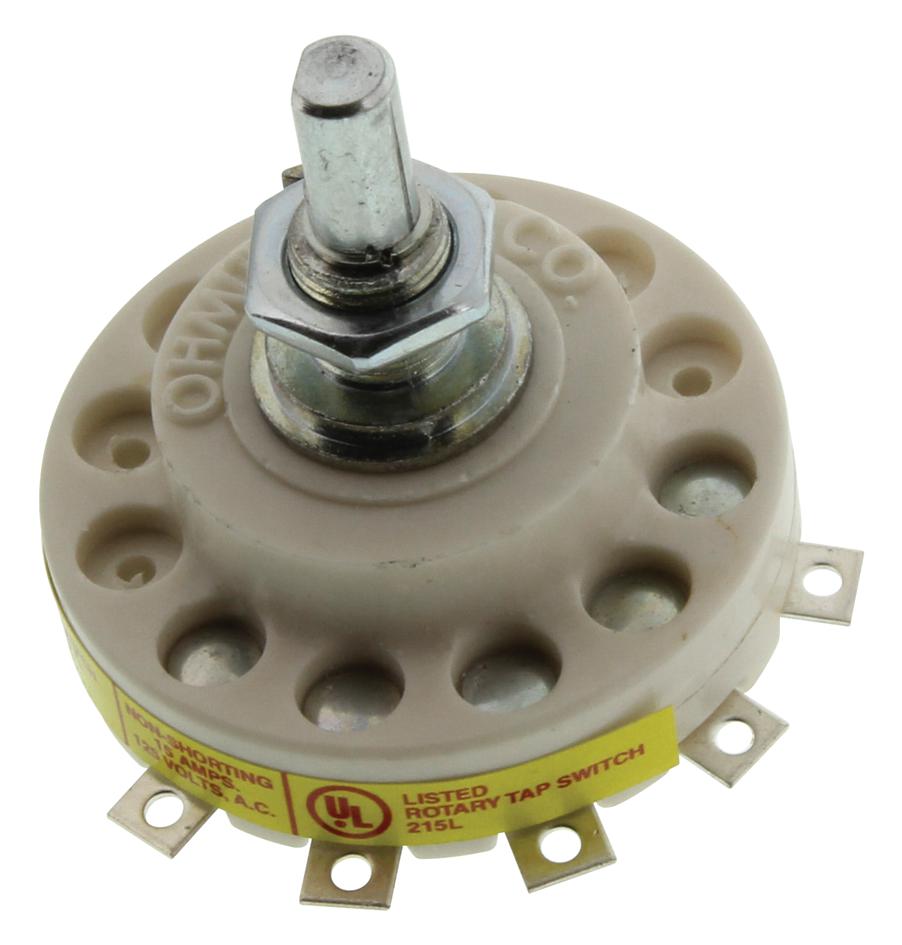

Ohmite 1115E High-Current Rotary Switch
Ohmite power tap switches are robust electro-mechanical devices engineered for convenient and dependable power distribution in industrial settings. These switches offer high current handling capabilities in a compact design, featuring reinforced non-metal bodies (for some models) and solid metal alloy contacts. They are constructed to resist arcing, burning, and charring, ensuring long-term reliability. Tandem assemblies are available for increased functionality, and the switches are UL listed for specific models. The non-shorting design disconnects the previous circuit before establishing contact with the succeeding tap, preventing potential issues. They are subject to wear and have a finite life.
Ohmite 1115E High-Current Rotary Switch Specifications:
- Overall Rating: 7A 125V (Model 111)
- Max. no. of taps: 11
- Diameter: 1.56 / 39.6 mm
- Depth behind panel: 1/16 / 20.6 mm
- Shaft Model: 1/8 / 45.2 mm
- Torque: 7-12 oz.-in.
- Rating (DC): 7A 20V
- Body Material: Ceramic, Polyester, or Melamine Phenolic
- Contacts: Silver alloy
- Terminals: Soldering (711 accepts quick connectors, 412 accepts #10 screws, 608 accepts 0.25” bolts)
Buy the 111-5E OHMITE High-Current Rotary Switch | myMectronic
Purchase the Ohmite 111-5E Power Tap Switch securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite 1115E?
You can click on the BUY or RFQ button to purchase 1115E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part 1115E?
You can download the 1115E datasheet or visit the Ohmite website for support.
Who is the manufacturer of 1115E?
Ohmite
