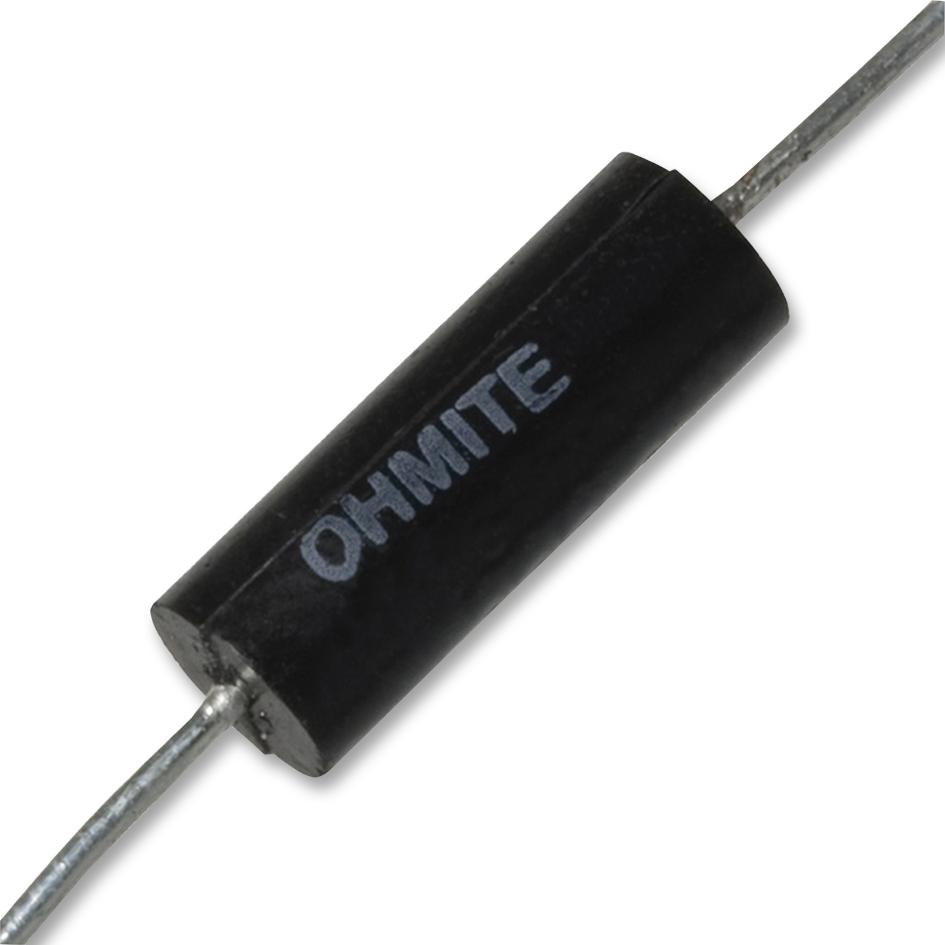

Ohmite 15FR250E Current Sense Resistor
The 15FR250E is a highly reliable axial wire element current sense resistor designed for precise current measurement in industrial and electronic applications. Featuring a 1% tolerance standard, low inductance below 0.25Ω, and RoHS compliance, it offers excellent thermal stability from -55°C to 275°C. Packaged with tinned copper terminals and silicone molding, it supports various wattages up to 5W, with a resistance range of 0.005 to 0.25 ohms. Its robust construction ensures durability, low thermal EMF less than +2μV/°C, and high dielectric withstand voltage, making it ideal for sensitive current sensing circuits.
Ohmite 15FR250E Current Sense Resistor Specifications:
- Series: 15
- Wattage: 5W
- Resistance Range: 0.005 to 0.25 ohms
- Resistance Tolerance: ±1%
- Maximum Voltage: 1000 VRMS (3 and 5W), 500 VRMS (2W)
- Temperature Range: -55°C to 275°C
- Encapsulation: Silicone molding compound
- Terminals: Tinned copper leads
- Derating: Linearly from 100% at +25°C to 0% at +275°C
- Thermal EMF: Less than +2μV/°C
- Overload: 5 times rated wattage for 5 seconds
- Insulation Resistance: Not less than 1000 MΩ
- Dielectric Withstanding Voltage: 1000 VRMS for 3 and 5W
- Dimensions: Length approximately 23.8 mm, diameter 0.935 inches
Buy the Ohmite 15FR250E – Reliable Current Sense Resistor for Industrial Applications
Discover the high-precision, axial wire current sense resistor designed for accurate current measurement. The 15FR250E features a 1% tolerance, RoHS compliance, and operates reliably from -55°C to 275°C. Its silicone molding encapsulation and tinned copper terminals ensure durability and low thermal EMF. Suitable for industrial, electronic, and sensitive circuit applications, this resistor offers excellent stability, low inductance below 0.25Ω, and electrical performance with high dielectric withstand voltage. Enhance your circuit's accuracy by ordering online today.
Buy Ohmite 15FR250E now and experience unmatched reliability and performance in precise current measurement solutions.
Frequently Asked Questions
Where can I buy Ohmite 15FR250E?
You can click on the BUY or RFQ button to purchase 15FR250E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part 15FR250E?
You can download the 15FR250E datasheet or visit the Ohmite website for support.
Who is the manufacturer of 15FR250E?
Ohmite
