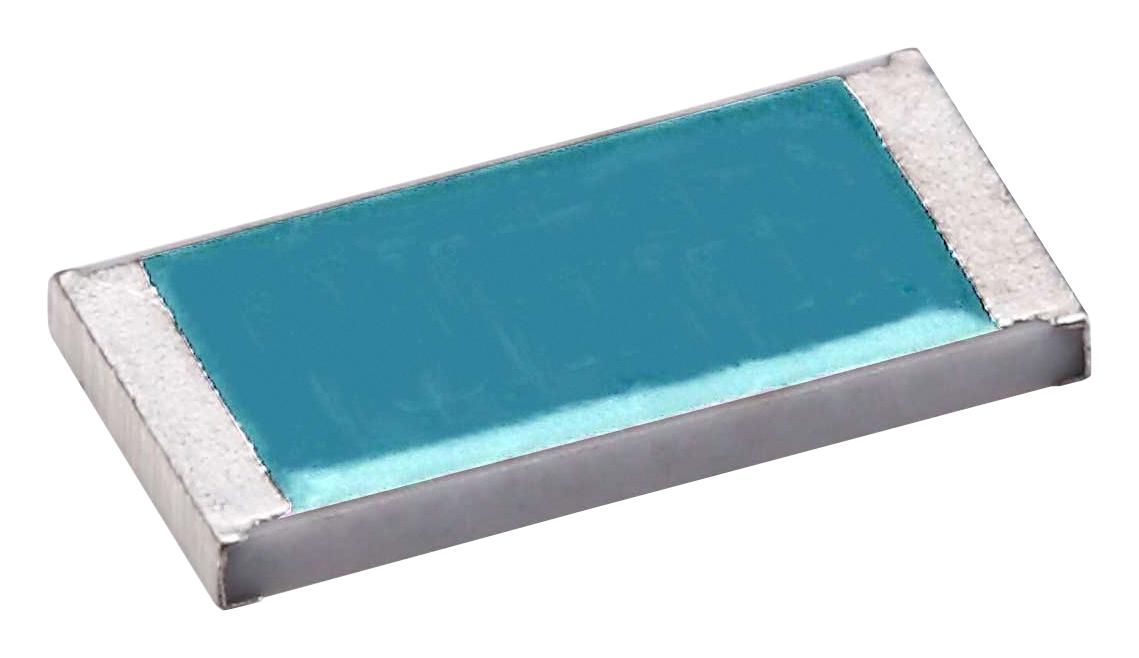

Ohmite ALN2512F120RE1 High Power Chip Resistor
This high-power thick film chip resistor features an aluminum nitride substrate for superior thermal performance, with a resistance range of 102 to 2K ohms, suitable for industrial and telecom applications. It has a lead-free wraparound termination over a nickel barrier, complies with RoHS standards, and is designed for operation up to 155°C with a power rating of 3.5W at 70°C, reaching 22W with temperature control. It offers excellent thermal stability, overcurrent protection, and is packaged in industry-standard 2512 size for easy PCB mounting, making it ideal for demanding electronic circuits.
Ohmite ALN2512F120RE1 High Power Chip Resistor Specifications:
- Resistance Range: 102 to 2KΩ
- Power Rating: 3.5W at 70°C, up to 22W with temperature control
- Temperature Coefficient of Resistance: +150 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Maximum Operating Voltage: 200V
- Overload Voltage: 2.5*Rated Voltage
- Terminals: Lead-free wraparound over nickel barrier
- Size: 2512 standard package
- Storage Temperature: 15°C to 28°C, Humidity < 80% RH
- Resistance Tolerance: ±1% or +5%
- TCR: +150 ppm/°C
- Solderability: 95% coverage at 245°C for 3 seconds
- Thermal Stability: Endurance test at 70°C for 1000 hours
- Moisture Resistance: 240 hours at 280% RH
- Soldering Method: Reflow with peak temperature at 265°C for 10 seconds
Buy the OHMITE ALN2512F120RE1 – Reliable High Power Chip Resistor for Industrial Applications
Purchase the high power chip resistor designed for demanding industrial and telecom applications online today. Featuring aluminum nitride substrates, lead-free wraparound terminals, and a power rating of up to 22W with temperature control, this resistor ensures optimal thermal management and durability in your electronic circuits. It comes in standard 2512 size, with resistance options from 102Ω to 2KΩ, making it suitable for various high-stress environments. Ensure your projects have reliable resistance components with easy online ordering and fast delivery.
Order your OHMITE Series ALN2512F120RE1 high power chip resistor today and secure dependable thermal performance for demanding industrial and telecom projects.
Frequently Asked Questions
Where can I buy Ohmite ALN2512F120RE1?
You can click on the BUY or RFQ button to purchase ALN2512F120RE1 from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ALN2512F120RE1?
You can download the ALN2512F120RE1 datasheet or visit the Ohmite website for support.
Who is the manufacturer of ALN2512F120RE1?
Ohmite
