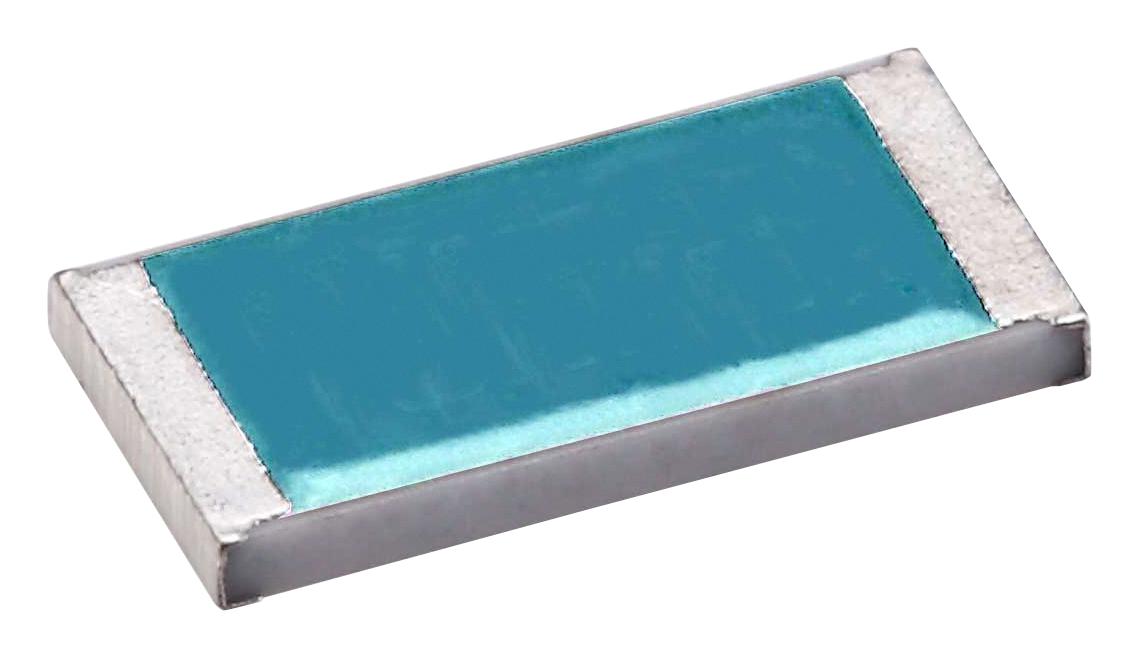

Ohmite ALN2512F75R0E1 High Power Chip Resistor
The ALN2512F75R0E-1 is a high-power thick film chip resistor designed for industrial and telecommunication applications. It features an aluminum nitride substrate with a resistive element, offering excellent thermal stability and reliable performance at temperatures ranging from -55°C to +155°C. The resistor has a resistance of 75 ohms with a 1% tolerance, capable of handling 3.5W at 70°C and up to 22W with temperature control. Its lead-free construction includes wraparound nickel barrier terminations, suitable for PCB mounting using industry-standard 2512 size.
Ohmite ALN2512F75R0E1 High Power Chip Resistor Specifications:
- Resistance Range: 102 - 2KΩ
- Tolerance: ±1% (E24 E96) / ±5% (E24)
- Temperature Coefficient of Resistance (TCR): +150 ppm/°C
- Operating Temp. Range: -55°C to +155°C
- Max. Power Rating: 3.5W @70°C, 22W with temperature control
- Max. Operating Voltage: 200V
- Overload Voltage: 2.5×Rated Voltage
- Storage Temp.: 15°C to 28°C, Humidity < 80% RH
- Solderability: 95% min. coverage at 245°C for 3 sec
- Terminal Strength: No mechanical damage under 3kg force
- Moisture Resistance: 240 hrs at 280% RH, resistance change within ±0.50%
- Reflow Soldering: Peak temp of 265°C, 10 sec. at maximum temperature
Buy the Buy High Power Chip Resistor Part Number ALN2512F75R0E-1 Online
Discover the high power chip resistor designed for demanding industrial and telecom environments. Rated for 75Ω resistance with 1% tolerance, it features an aluminum nitride substrate for excellent thermal stability. Capable of handling 3.5W at 70°C and up to 22W with temperature control, its lead-free construction ensures compliance with RoHS standards. Suitable for PCB mounting with industry-standard size 2512, it provides reliable performance under high temperature and humidity conditions, making it ideal for precision and durability in your electronic projects.
Buy high power chip resistor ALN2512F75R0E-1 now and experience unmatched reliability and thermal performance for industrial and telecom applications.
Frequently Asked Questions
Where can I buy Ohmite ALN2512F75R0E1?
You can click on the BUY or RFQ button to purchase ALN2512F75R0E1 from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ALN2512F75R0E1?
You can download the ALN2512F75R0E1 datasheet or visit the Ohmite website for support.
Who is the manufacturer of ALN2512F75R0E1?
Ohmite
