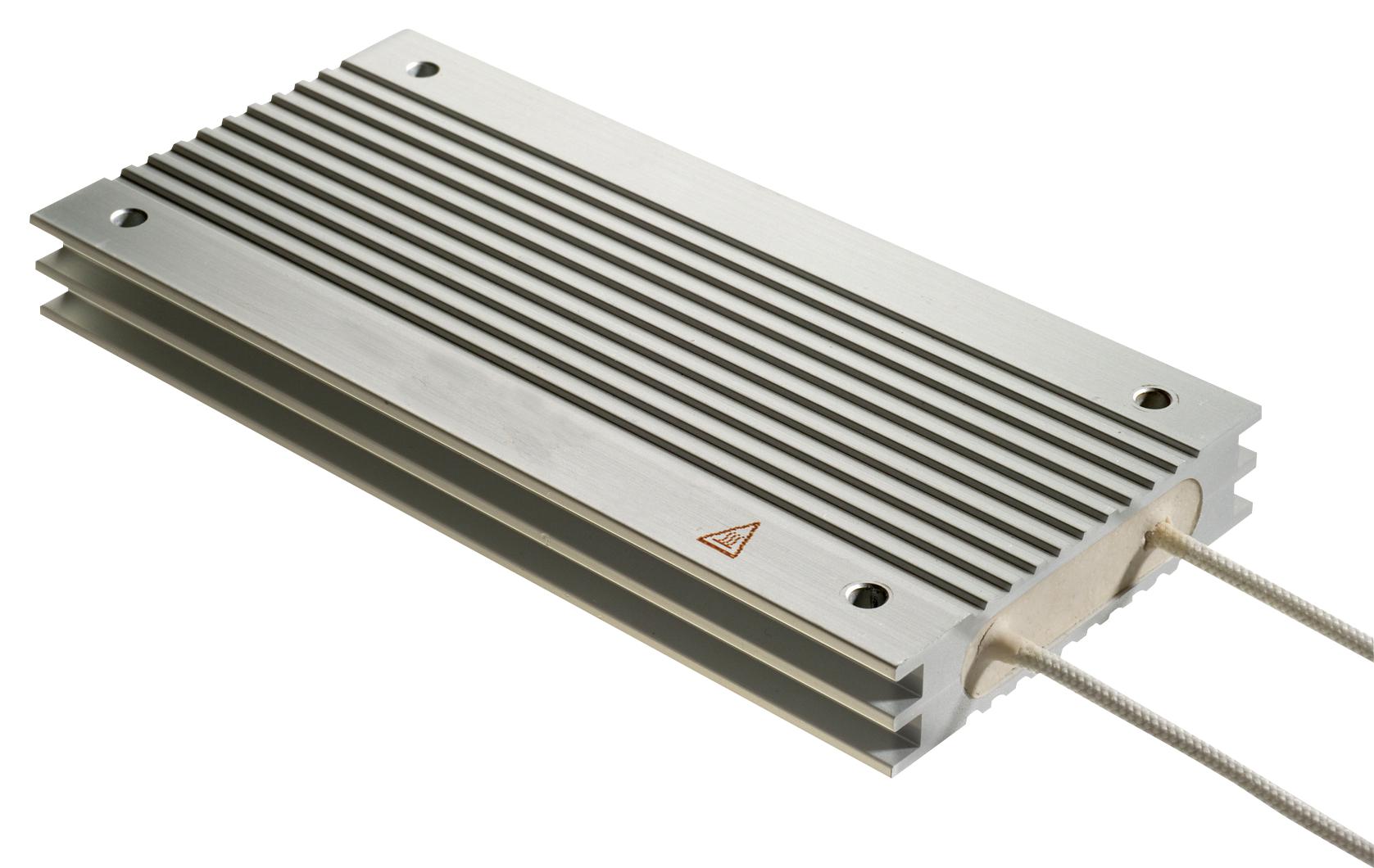

Ohmite ARF2004RJ Low Profile Wirewound Resistor
OHMITE's ARF200 4R J is a low-profile wirewound metal clad resistor engineered for demanding applications requiring high pulse capability, such as braking and inverter/converter systems. Its flexible design allows for efficient heat dissipation, especially when combined with a heatsink. The resistor boasts high power density and a low profile, making it suitable for space-constrained environments. It is RoHS compliant, ensuring environmental responsibility. Typical applications include power conversion, braking systems, and other industrial control circuits.
Ohmite ARF2004RJ Low Profile Wirewound Resistor Specifications:
- Tolerance: ± 5% (J)
- Maximum Surface Temperature: +250°C
- Temperature Coefficient: ≤ ± 150ppm/°C
- Operating Voltage: √(PxR)
- Pulse Overload: 10 x P, 5 sec
- Insulation Resistance: at 500V ≥ 10GΩ
- Insulation Testing Voltage: 4000V
- Wattage (without heatsink): 100
- Wattage (with heatsink): 200
- Max Voltage: 1000
- Ohmic Value Range: 3R6 - 390R
- L1 (ARF200): 110
- L2 (ARF200): 86
- Dimensions L1: 110mm
- Dimensions L2: 86mm
- Ø4.6-4x: N/A
- 1.5mm2: N/A
- 300min: N/A
Buy the ARF200 4R J OHMITE Low Profile Wirewound Resistor | myMectronic
Purchase the ARF200 4R J resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite ARF2004RJ?
You can click on the BUY or RFQ button to purchase ARF2004RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ARF2004RJ?
You can download the ARF2004RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of ARF2004RJ?
Ohmite
