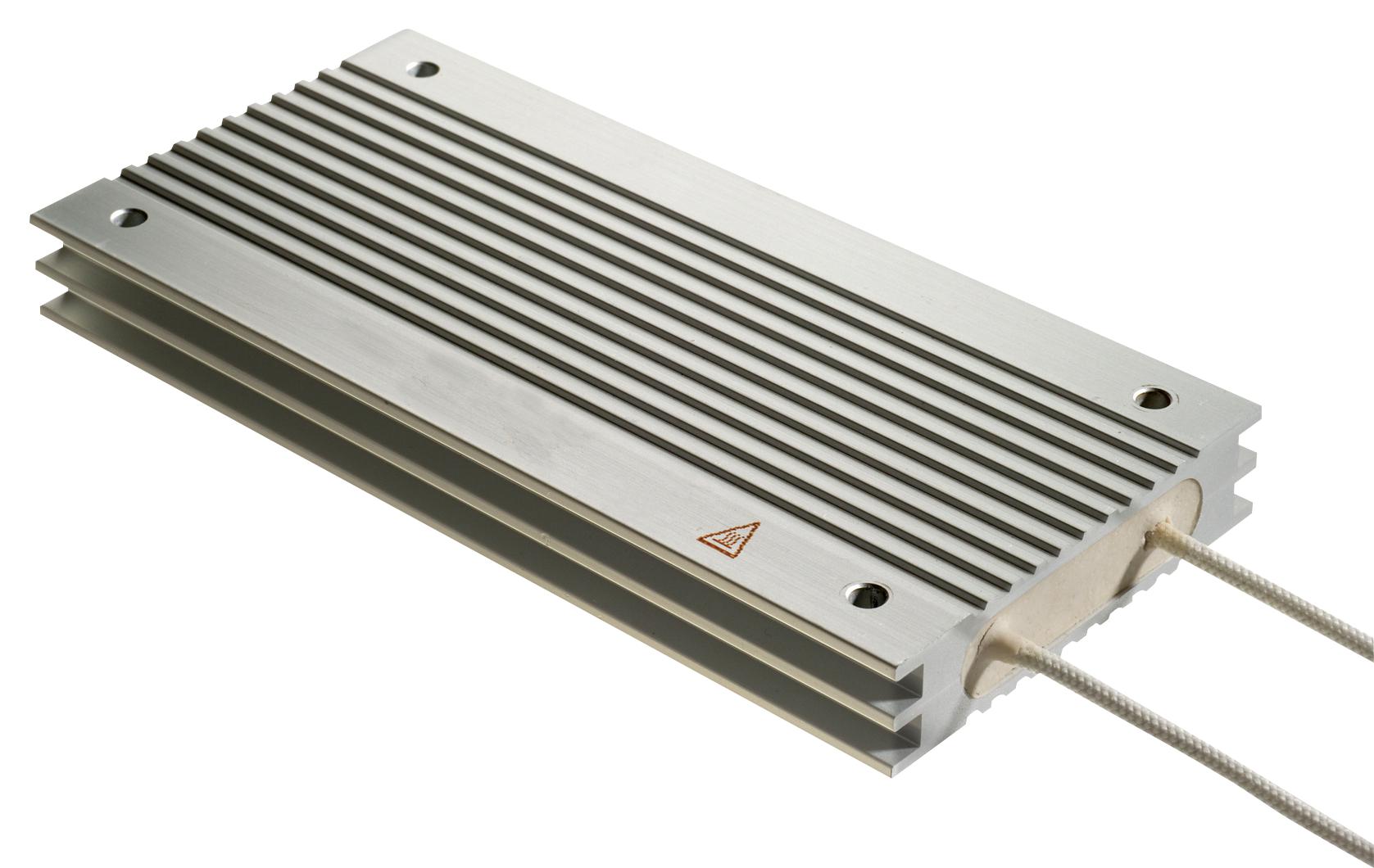

Ohmite ARF30025RJ Low Profile Wirewound Resistor
The OHMITE ARF series of low-profile wirewound metal clad resistors are engineered for demanding applications requiring high pulse capability, such as braking and inverter/converter systems. These resistors feature a flexible design, high power density, and can be heatsink-mounted to achieve enhanced power levels. They are characterized by their low profile, standard 600V cabling, and are RoHS compliant, ensuring environmental responsibility. The ARF300 25R J specifically offers a resistance value range of 5R6 - 560R and is suitable for a wide range of industrial and electronic applications.
Ohmite ARF30025RJ Low Profile Wirewound Resistor Specifications:
- Tolerance: ± 5% (J)
- Maximum Surface Temperature: +250°C
- Temperature Coefficient: ≤ ± 150ppm/°C
- Operating Voltage: √(PxR)
- Pulse Overload: 10 x P, 5 sec
- Insulation Resistance: at 500V ≥ 10GΩ
- Insulation Testing Voltage: 4000V
- Wattage (without heatsink): 150W
- Wattage (with heatsink): 300W
- Max Voltage: 1500V
- Ohmic Value Range: 5R6 - 560R
- Dimensions L1: 163mm
- Dimensions L2: 139mm
- Dimensions Max: 79mm max
- Dimensions Thickness: 8.5mm max
