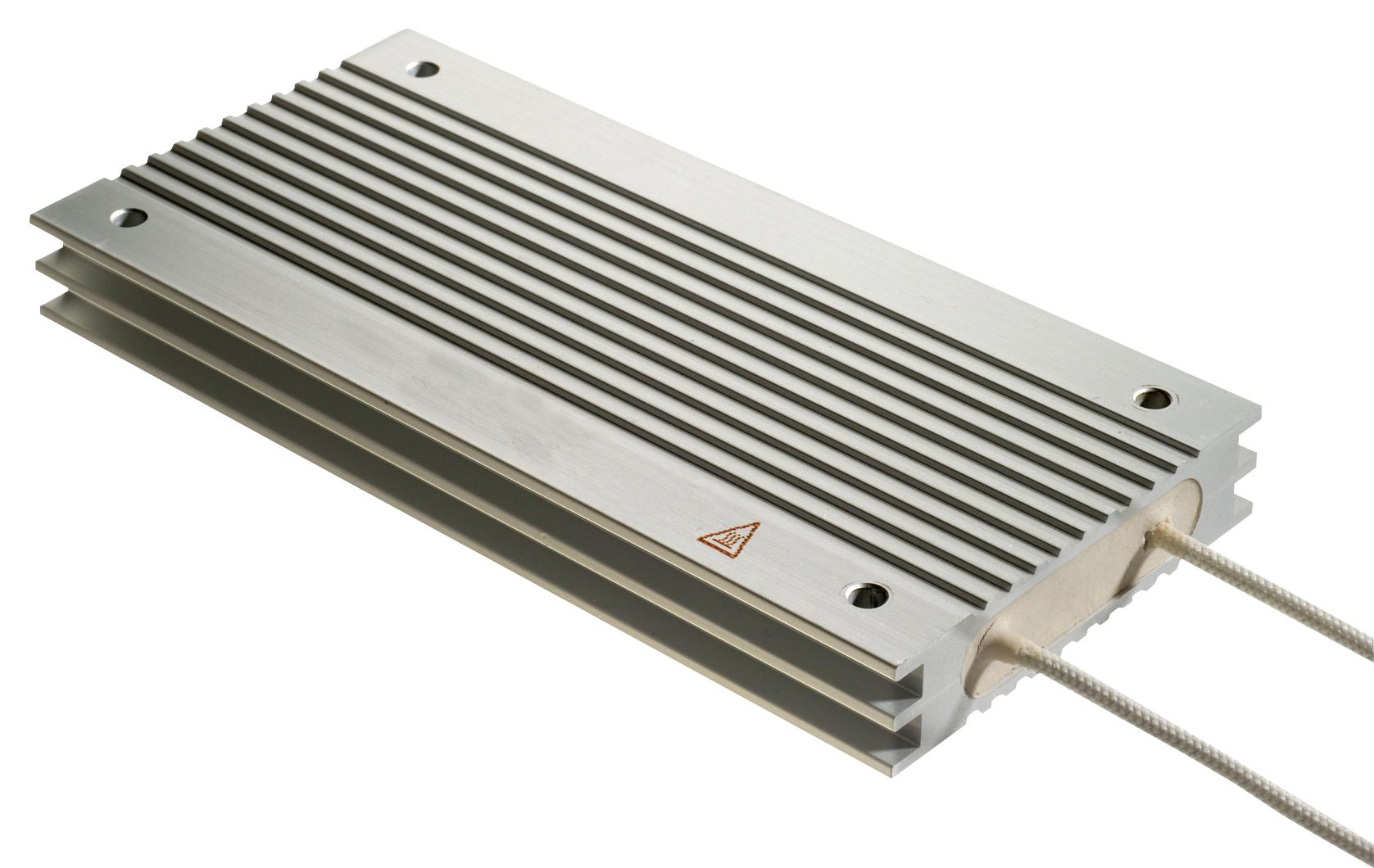

Ohmite ARF3006RJ Low Profile Wirewound Resistor
The OHMITE ARF series of low-profile wirewound metal clad resistors are engineered for demanding applications requiring high power density and robust performance. These resistors are ideally suited for braking and inverter/converter circuits, where they provide reliable resistance with a compact form factor. The ARF300 6R J model features a low profile design, high power density, and is RoHS compliant. Optional heatsinking allows for increased power dissipation, expanding its application range. They are built to withstand high pulse loads and operate reliably in challenging environments.
Ohmite ARF3006RJ Low Profile Wirewound Resistor Specifications:
- Tolerance: ± 5% (J)
- Maximum Surface Temperature: +250°C
- Temperature Coefficient: ≤ ± 150ppm/°C
- Operating Voltage: √(PxR)
- Pulse Overload: 10 x P, 5 sec
- Insulation Resistance: at 500V ≥ 10GΩ
- Insulation Testing Voltage: 4000V
- Wattage (without heatsink): 150W
- Wattage (with heatsink): 300W
- Max Voltage: 1500V
- Ohmic Value Range: 5R6 - 560R
- L1 (ARF300): 163mm
- L2 (ARF300): 139mm
- Dimensions (mm): Ø4.6-4x1.5mm2
- Standard Resistance Value: 5R6 - 560R
