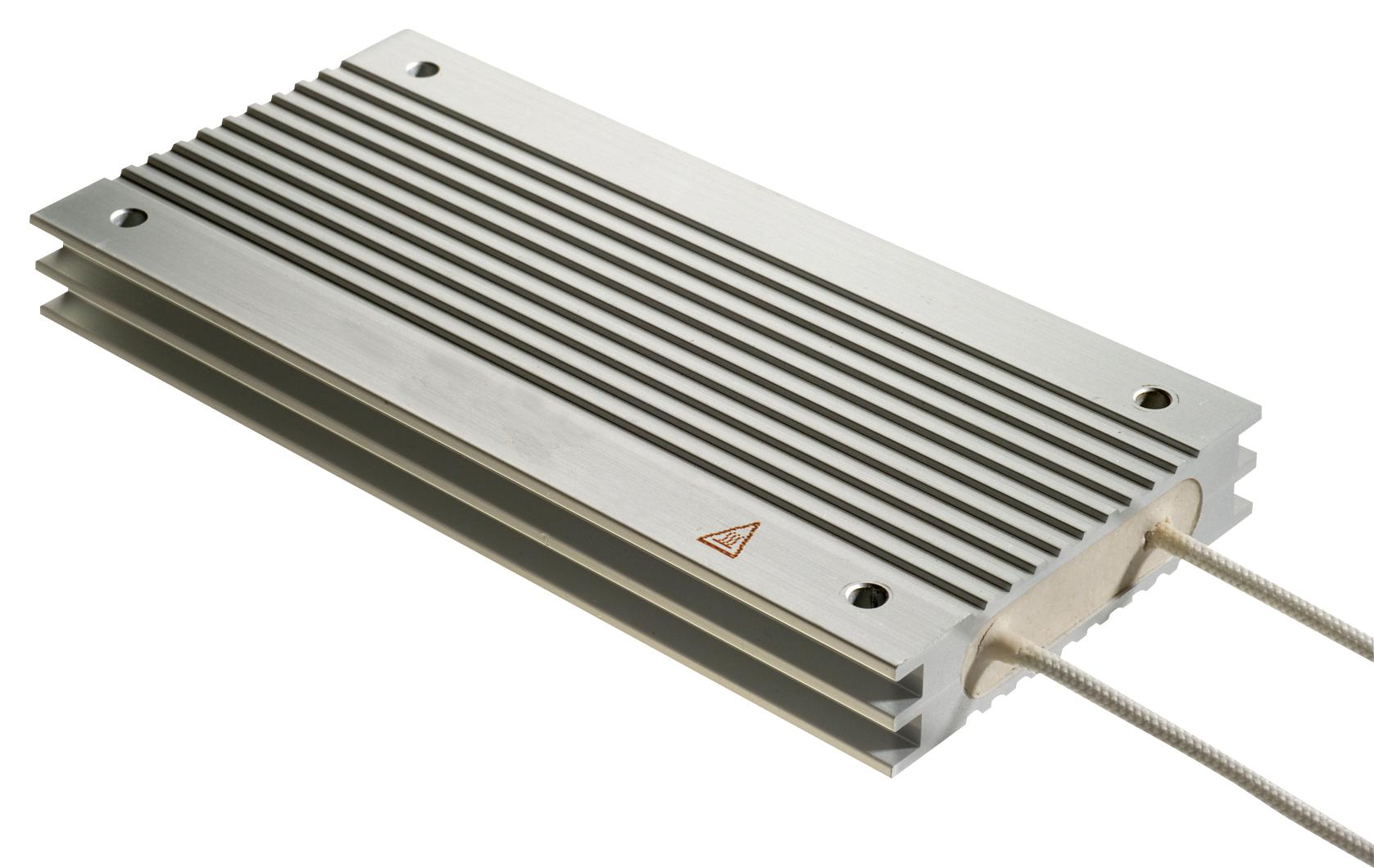

Ohmite ARF40010RJ Low Profile Wirewound Resistor
The OHMITE ARF series of low-profile wirewound metal clad resistors are ideal for applications requiring high power density and pulse handling capabilities, such as braking and inverter/converter systems. These resistors feature a flexible design, low profile, and standard 600V cabling. They can be mounted with a heatsink to further increase power dissipation. The ARF400 10R J specifically offers a resistance value of 10 ohms with a tolerance of ±5% (J code) and is RoHS compliant, making it suitable for a wide range of industrial applications.
Ohmite ARF40010RJ Low Profile Wirewound Resistor Specifications:
- Tolerance: ± 5% (J)
- Maximum Surface Temperature: +250°C
- Temperature Coefficient: ≤ ± 150ppm/°C
- Operating Voltage: √(PxR)
- Pulse Overload: 10 x P, 5 sec
- Insulation Resistance: at 500V ≥ 10GΩ
- Insulation Testing Voltage: 4000V
- Wattage (without heatsink): 200W
- Wattage (with heatsink): 400W
- Max Voltage: 1500V
- Ohmic Value Range: 7R5 - 820R
- Dimensions L1: 216mm
- Dimensions L2: 192mm
- Dimensions Max: 79mm max
- Dimensions Thickness: 8.5mm max
