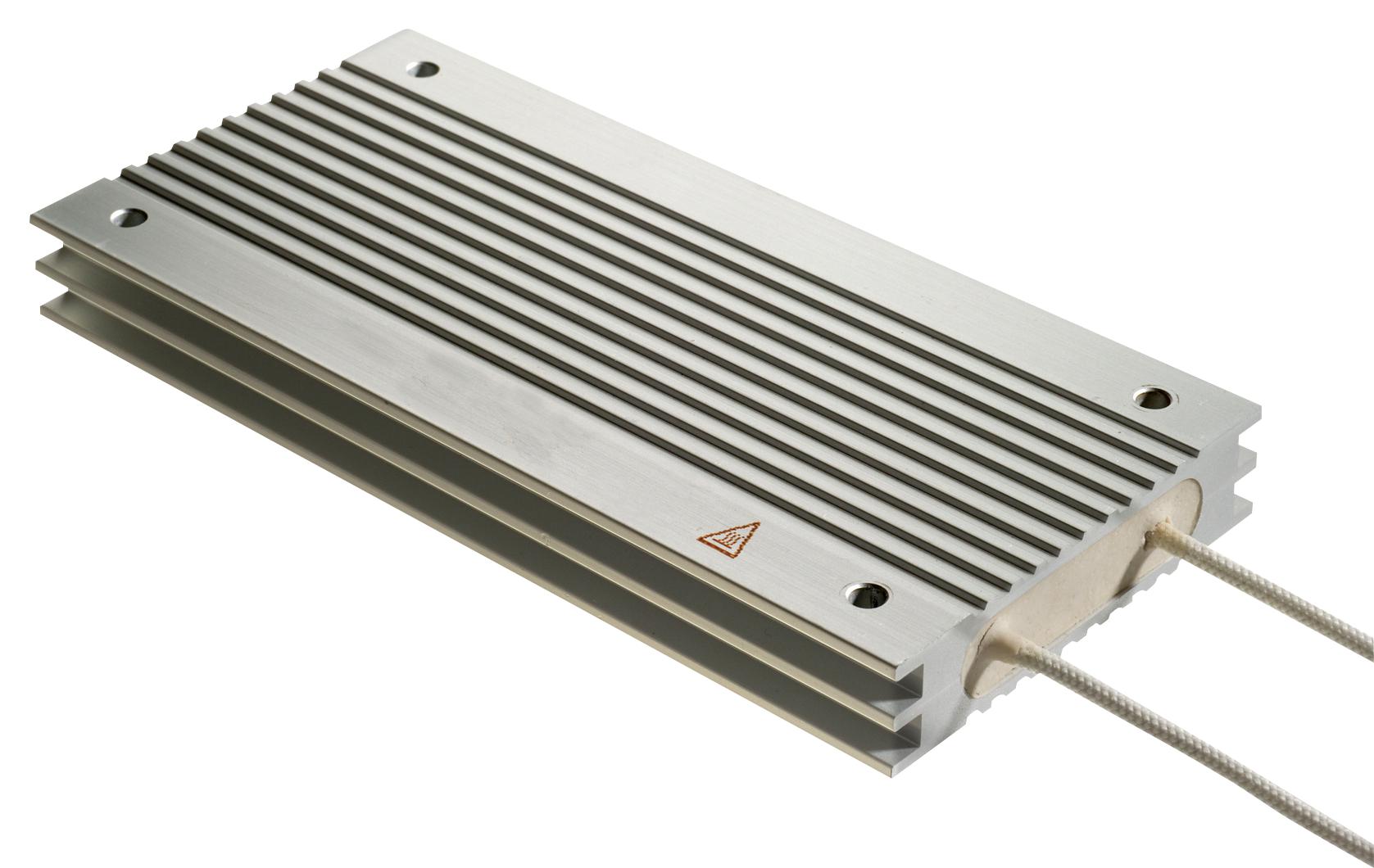

Ohmite ARF50068RJ High Power Metal Clad Resistor
The ARF Low Profile Wirewound Metal Clad Resistors are high-performance, compact resistors designed for braking, inverter, and converter applications. They offer high pulse capability and enhanced power levels when heatsink mounted, making them suitable for demanding electrical environments. These resistors feature a low profile design, high power density, and standard 600V cable compatibility. RoHS compliant, they withstand surface temperatures up to +250°C and are ideal for applications requiring reliable, high-power Wound Metal Clad resistors with robust insulation resistance and voltage ratings.
Ohmite ARF50068RJ High Power Metal Clad Resistor Specifications:
- Resistance Range: 2.2Ω - 220Ω
- Power Ratings: 150W, 200W, 300W, 400W, 500W, 600W
- Tolerance: ±5% (J)
- Maximum Surface Temperature: +250°C
- Voltage Rating: 600V (standard cable)
- Pulse Overload Capacity: 10x P for 5 seconds
- Insulation Resistance: ≥ 10GΩ at 500V
- Insulation Testing Voltage: 4000V
- Dimensions (mm): ARF150 - 80 x 56, ARF200 - 110 x 86, ARF300 - 163 x 139, ARF400 - 216 x 192, ARF500 - 270 x 246, ARF600 - 300 x 276
- Type: Metal Clad Wirewound Resistors
- RoHS Compliance: Yes
- Operating Voltage: Up to 1500V depending on model
- Maximum Power Dissipation: Varies with model, up to 600W
- Temperature Coefficient: < +150ppm/°C
Buy the ARCOL Series ARF Low Profile Wirewound Metal Clad Resistors: ARF50068RJ
Procure the ARCOL ARF series high power metal clad resistor directly online and ensure your circuits are protected with reliable, compact, and high pulse capability resistors. Ideal for inverter and braking systems, these resistors come with standard 600V cables and are RoHS compliant. They deliver exceptional performance with temperature resistance up to +250°C, insulation resistance above 10GΩ, and robust construction. Purchase now for fast delivery and maintain optimal system efficiency in your high-power electronic projects.
Buy ARCOL ARF50068RJ low profile wirewound resistors now and experience reliable high-power performance for demanding electrical applications.
Frequently Asked Questions
Where can I buy Ohmite ARF50068RJ?
You can click on the BUY or RFQ button to purchase ARF50068RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ARF50068RJ?
You can download the ARF50068RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of ARF50068RJ?
Ohmite
