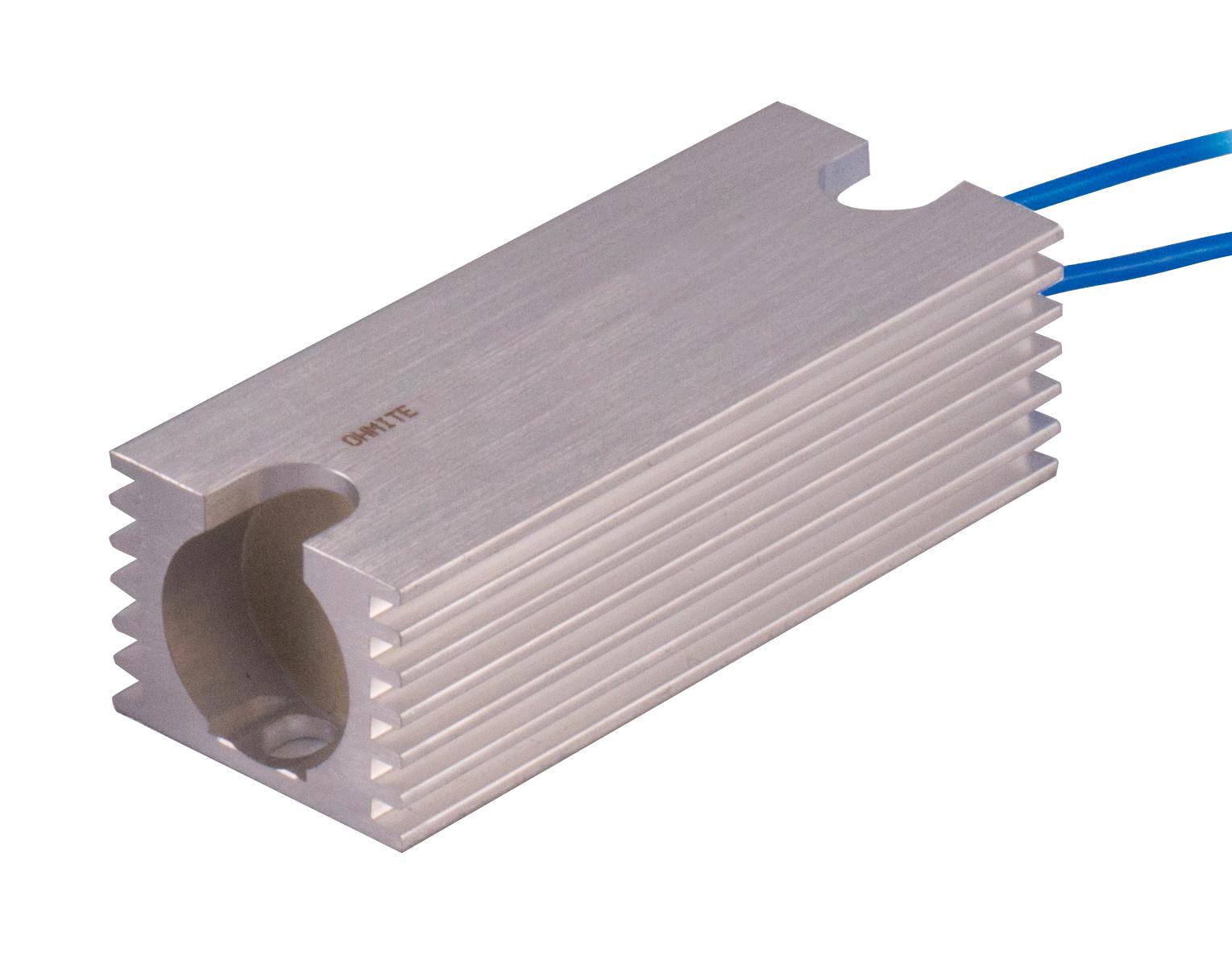

Ohmite ARG160C4RJ Wirewound Power Resistor
The Ohmite ARG series features high-power wirewound resistors housed in aluminum cases with efficient finned profiles for superior thermal performance. Suitable for electronic circuits such as motor control, braking, and frequency converters, these resistors provide reliable heat dissipation through insulated connectors and include models ranging from 120W to 500W power ratings. Able to operate up to 250°C surface temperature, they offer precise tolerances, stability over time, and excellent isolation resistance, making them ideal for demanding industrial applications requiring stable and durable power resistance solutions.
Ohmite ARG160C4RJ Wirewound Power Resistor Specifications:
- Power Ratings: 150W (ARG120), 200W (ARG160), 300W (ARG240), 400W (ARG320), 500W (ARG400)
- Max Voltage: 1,000VAC to 2,300VAC depending on resistance
- Surface Temperature: Max 250°C
- Resistance Range: 1R6 to 910R
- Tolerance: ±5%
- TCR: < +150ppm/°C
- Isolation Resistance: >10GΩ at 50VAC
- Operating Temperature: -55°C to +250°C
- Climatic Category: 50/200/56
- Pulse Overload Capability: 10x Pnep for 5 seconds
- Physical Dimensions: ARG120 L1 90mm, L2 79mm; ARG160 L1 105mm, L2 94mm, Weight 208g; ARG240 L1 155mm, L2 144mm, Weight 310g; ARG320 L1 200mm, L2 189mm; ARG400 L1 260mm, L2 249mm
- Connectors: 0.28-inch female quick connectors
- Insulation Voltage: 4000VAC
Buy the Ohmite Series ARG Wirewound Power Resistors: ARG160C4RJ
Order the Ohmite ARG160C4RJ wirewound power resistor today for high-performance electronic circuits needing stable, efficient heat dissipation and robust power handling. Engineered for reliability in demanding environments, this resistor offers excellent thermal stability, precise resistance tolerance, and high overload capacity. Its aluminum housing with finned profile ensures effective heat management. Whether for motor control, braking, or frequency converters, purchase online now and ensure your industrial setup benefits from top-tier power resistors designed for durability and optimal performance across varied temperature ranges and electrical loads.
Get Ohmite ARG160C4RJ today—built for demanding industrial power applications with reliable thermal performance and long-lasting durability.
