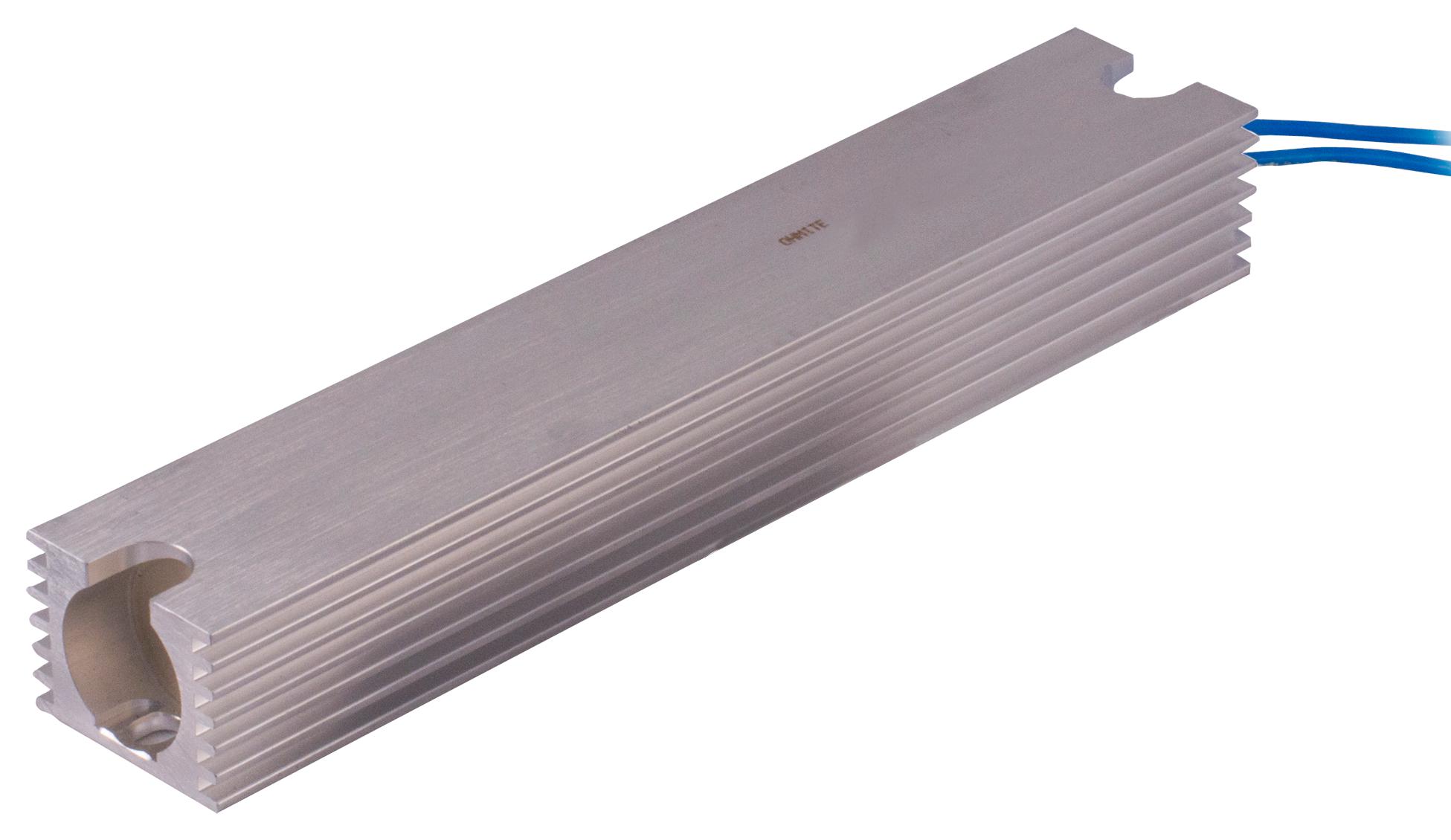

Ohmite ARG320C12RJ Power Resistor
The ARG series consists of wirewound power resistors housed in aluminum casings, designed for high thermal efficiency and capable of heatsinking for enhanced power dissipation. Suitable for electronic circuits such as motor control, braking, and frequency converters, these resistors feature insulated connectors and are built to withstand high surface temperatures up to 250°C. Their robust construction ensures reliable performance under overload conditions, with stability over extended periods, making them ideal for demanding industrial and power electronic applications.
Ohmite ARG320C12RJ Power Resistor Specifications:
- Nominal load at 25°C: ARG320C12RJ 320W, with heatsink 80W
- Resistance range: 4.7Ω to 910Ω
- Max. overload voltage: up to 2,300VAC
- Maximal surface temperature: 250°C
- Resistance tolerance: ±5%
- Temperature coefficient: < +150ppm/°C
- Isolation resistance: >10GΩ at 50VAC
- Isolation test voltage: 4000VAC
- Climatic category: 50 / 200/56
- Pulse overload capability: 10x nominal power for 5 seconds
- Dimensions (L1 x L2): 200mm x 189mm
- Weight: approximately 400 grams for ARG320C model
- Thermal cutoff and stability features ensure long-term reliability
Buy the Buy Ohmite ARG Series Power Resistors Part Number ARG320C12RJ Online
Purchase the Ohmite ARG320C12RJ power resistor online today for efficient thermal dissipation and robust construction suitable for demanding electronic and industrial applications. With high overload capacity, stable performance over time, and excellent insulation properties, this resistor is perfect for motor control, braking systems, and frequency converters. Enjoy fast shipping and expert support when you buy online, ensuring your projects stay on schedule and operate reliably with this high-quality power component engineered for durability and precision performance.
Get Ohmite ARG320C12RJ high-power resistor today—designed for reliable thermal management and long-lasting industrial performance.
