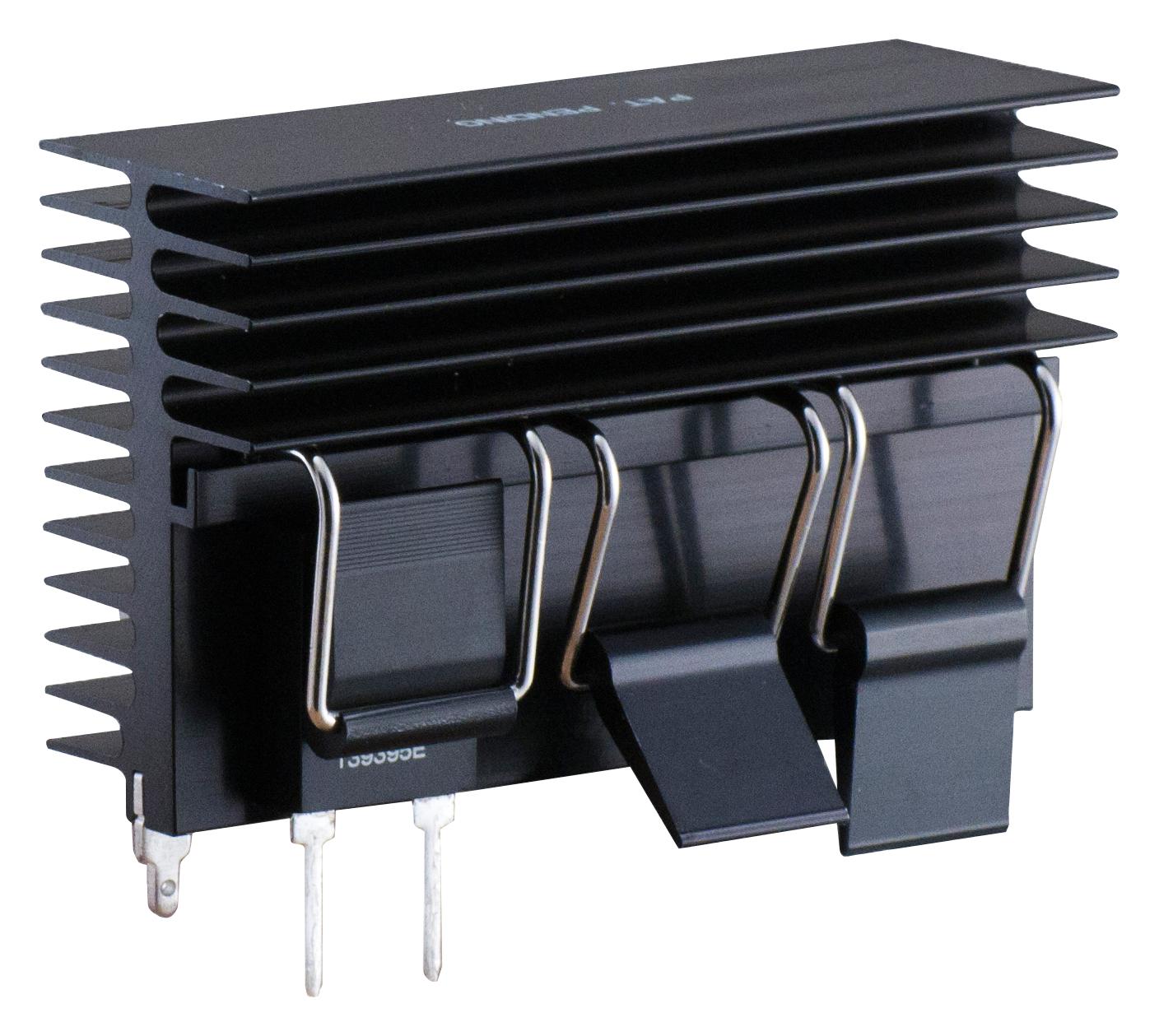

Ohmite CR20150AE High-Performance Aluminum Heatsink
The CR series heatsinks are high-performance, configurable cooling solutions with universal cam-clips compatible with TO-247, TO-264, and other packages. Made from aluminum alloy 6063-T5, they feature tool-free assembly, minimal cost, and flexible design for high power density electronics. Suitable for forced convection cooling, these heatsinks provide reliable thermal management with easy installation, maximum repeatability, and reduced hardware parts. Their thermal resistance ranges from 3.0°C/W to 5.3°C/W depending on size, supporting efficient heat dissipation for various electronic components.
Ohmite CR20150AE High-Performance Aluminum Heatsink Specifications:
- Material: Aluminum Alloy 6063-T5 or Equivalent
- Heatsink Area: 25, 50, 75 in²
- Weight: 1.0 oz (CR101-25), 2.0 oz (CR101-50), 3.0 oz (CR101-75), 1.8 oz (CR201-25), 3.6 oz (CR201-50), 5.4 oz (CR201-75), etc.
- Dimensions: Lengths 25 mm, 50 mm, 75 mm; Widths vary per model; Thickness approximately 0.105 inches (2.66mm)
- Thermal Resistance: Ranges from 3.0°C/W to 5.3°C/W depending on model
- Surface Finish: Anodized (A) or Degreased (V)
- Mounting: Universal cam-clip system, tool-free assembly, compatible with TO-247, TO-264 packages
- Certifications: RoHS compliant, ASTM A228 spring wire clips, RoHS compliant tin over copper finish
- Operational Environment: Suitable for forced convection cooling, high power density electronic modules
Buy the Ohmite CR Series – Reliable Heatsinks for Industrial Applications
Discover the reliable performance of the Ohmite CR series heatsinks, designed for high power density and compact electronic packages. Featuring universal cam-clip mounting for quick, tool-free installation, these heatsinks are perfect for forced convection cooling in demanding industrial and electronic applications. Made from durable aluminum alloy 6063-T5 with optional anodized or degreased finish, they offer optimal thermal resistance, flexible configuration, and long-term reliability. Ensure your electronic components stay cool and perform optimally with these easy-to-install, high-efficiency heatsinks.
Buy Ohmite CR series heatsinks now and ensure efficient thermal management with easy, tool-free assembly for high power electronic components.
Frequently Asked Questions
Where can I buy Ohmite CR20150AE?
You can click on the BUY or RFQ button to purchase CR20150AE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part CR20150AE?
You can download the CR20150AE datasheet or visit the Ohmite website for support.
Who is the manufacturer of CR20150AE?
Ohmite
