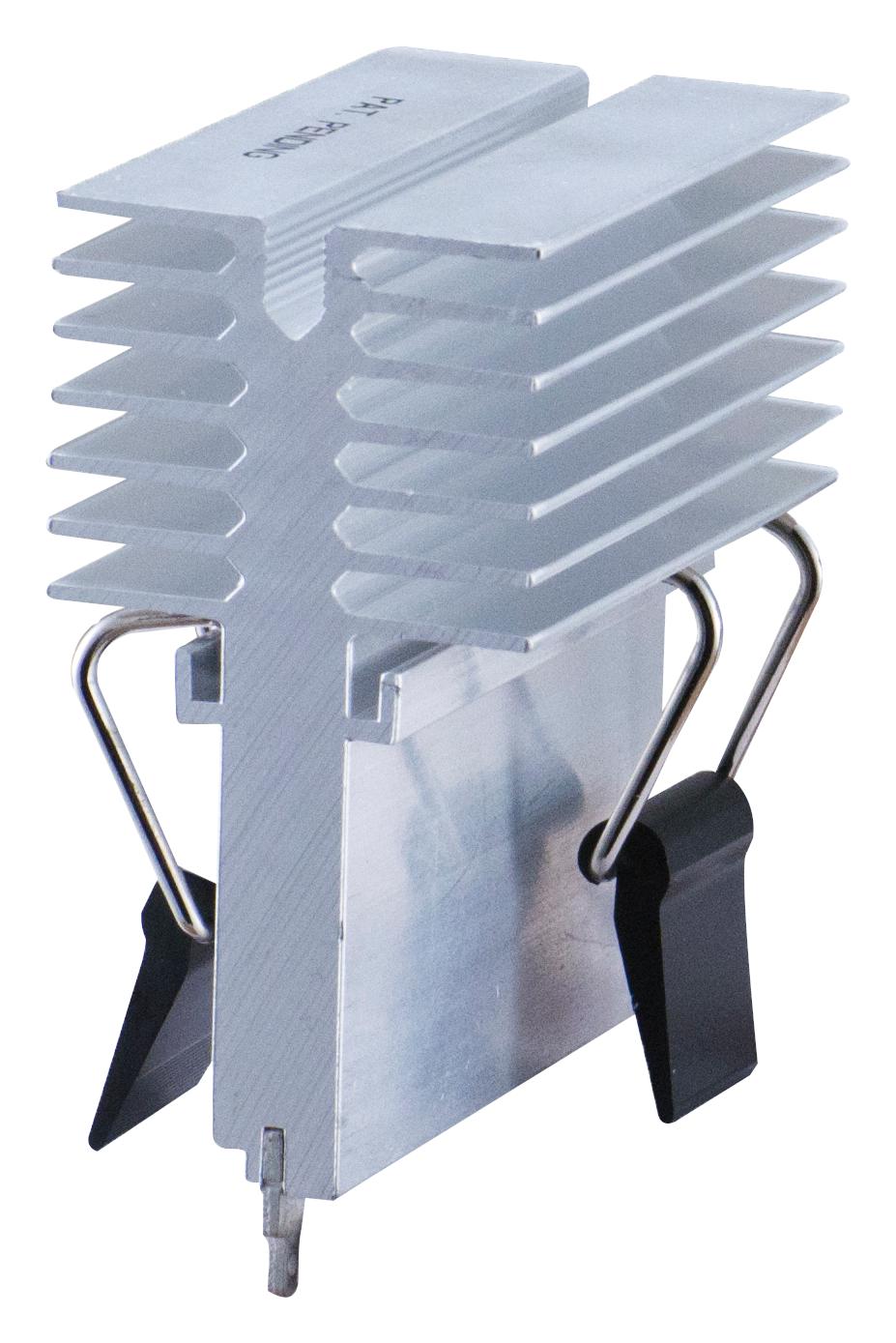

Ohmite CR30125VE High-performance heatsink
The CR series heatsinks with universal cam-clip are designed for high-performance, high-density electronic applications. Made from surface thermal Aluminum Alloy 6063-T5, these heatsinks feature tool-free assembly with resilient spring clips, reducing costs and assembly time. They provide excellent thermal performance with resistance values as low as 3.0°C/W and are ROHS compliant. Suitable for TO-247 and TO-264 packages, these heatsinks ensure reliable component cooling for compact, high-power electronic systems in demanding environments.
Ohmite CR30125VE High-performance heatsink Specifications:
- Material: Aluminum Alloy 6063-T5
- Surface Finish: Anodized or degreased
- Heatsink Area: varies (e.g., CR301-25: 25 in²)
- Weight: 1.38 oz (39 g) to 6.74 oz (191 g)
- Dimensions: length 25 mm to 75 mm, width and height as per model
- Thermal Resistance: from 8.1°C/W to 3.0°C/W depending on model
- Coatings: Anodized or degreased
- Mounting: Universal cam-clip system, tool-free
- Application: High power density electronics, forced convection cooling
- RoHS Compliance: Yes
- Part Numbers: CR101-25, CR101-50, CR101-75, CR201-25, CR201-50, CR201-75, CR301-25, CR301-50, CR301-75, CR401-25, CR401-50, CR401-75
Buy the Ohmite Series CR Heatsink: CR30125VE
Order the Ohmite CR30125VE heatsink online today and benefit from quick, hassle-free delivery. Its universal cam-clip system allows tool-free assembly, saving time and reducing costs. Crafted from durable Aluminum Alloy 6063-T5, it offers excellent thermal performance with a low thermal resistance of 8.1°C/W, suitable for TO-247 and TO-264 packages. Ideal for high-density electronic systems requiring efficient forced convection cooling, this heatsink ensures reliable operation in demanding environments and is compliant with RoHS standards for environmentally safe electronic assembly.
Buy Ohmite CR30125VE heatsink now and experience unmatched reliability with efficient cooling for high-power electronic applications.
Frequently Asked Questions
Where can I buy Ohmite CR30125VE?
You can click on the BUY or RFQ button to purchase CR30125VE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part CR30125VE?
You can download the CR30125VE datasheet or visit the Ohmite website for support.
Who is the manufacturer of CR30125VE?
Ohmite
