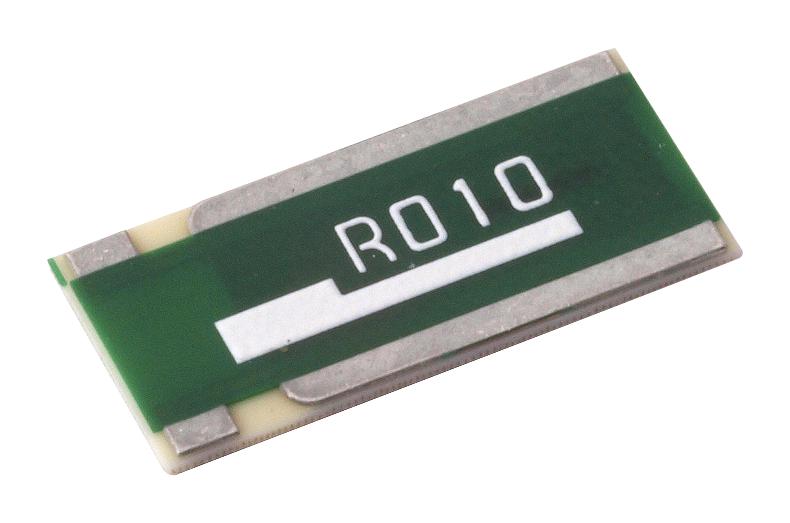

Ohmite FC4L76R001GER Current Sense Resistor
The FC4L series features four-terminal current sense resistors with metal foil construction, ensuring very stable resistance temperature coefficient. Designed for automatic insertion with industry-standard sizes, these resistors are suitable for high heat and low electromotive use. They employ Ni-Cu-Mn resistive elements with a built-in four-terminal Kelvin design, featuring larger electrodes for current management and smaller electrodes for precise measurement. Resistant to temperature extremes from -85°C to +155°C, these components are ideal for industrial applications requiring stable, high-performance current sensing.
Ohmite FC4L76R001GER Current Sense Resistor Specifications:
- Resistance Range: 0.25Ω to 50mΩ depending on series
- Power Ratings: 0.25W, 1W, 2W, 3W, 5W
- Temperature Coefficient of Resistance: ±100ppm/°C
- Operating Temperature Range: -85°C to +155°C
- Max. Temperature for Rated Power: 70°C, up to 245°C for soldering heat
- Dimensions: Standard sizes vary per series, typical length approx. 7.087 inches for reel packaging
- Construction: Metal foil with Ni-Cu-Mn resistive element
- Tolerance: ±0.5%, ±1%, ±2%, ±3%
- Endurance: 1000 cycles at temperature extremes, moisture resistance rated
- Voltage Rating: Based on resistance and power rating, typically 1.5x power value in volts
- Weight: 0.015g to 0.110g depending on series and size
- Encapsulation: Protective coating with epoxy sealing
- Packaging: Reel packaging with specific dimensions and taping specifications
Buy the Buy Ohmite FC4L Current Sense Resistor Part Number FC4L76R001GER Online
Order Ohmite FC4L current sense resistors online today and ensure your industrial applications have precise, stable, and reliable current measurement. Engineered with metal foil construction, these four-terminal resistors offer excellent temperature stability, high heat resistance, and robust durability, making them ideal for demanding environments. Whether you need a 0.25W or 5W package, purchasing online guarantees quick delivery, expert support, and competitive pricing to keep your projects on track with consistent performance.
Buy Ohmite FC4L current sense resistors now and experience unmatched reliability and performance in your industrial electronic designs.
Frequently Asked Questions
Where can I buy Ohmite FC4L76R001GER?
You can click on the BUY or RFQ button to purchase FC4L76R001GER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4L76R001GER?
You can download the FC4L76R001GER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4L76R001GER?
Ohmite
