Ohmite FC4L76R003FER Current Sense Resistor
The FC4L series features four-terminal current sense resistors with metal foil construction, offering high stability and precise resistance measurement. Designed for automatic insertion, these resistors come in industry-standard sizes and are suitable for high heat resistance use and low heat electromotive applications. They employ Ni-Cu-Mn resistive elements, providing a built-in 4-terminal design with larger electrodes for current management and smaller electrodes for measurement. Available in 2W and 5W packages, they ensure reliable performance in demanding electronic circuit environments.
Ohmite FC4L76R003FER Current Sense Resistor Specifications:
- Resistance Range: 0.25W 5mΩ-100mΩ, 1W 1mΩ-50mΩ, 2W 1mΩ-100mΩ, 3W 1mΩ-100mΩ, 5W 1mΩ-50mΩ
- Series Rating: 0.25W to 5W depending on model
- Resistance TCR: ±41% 450 ppm/°C, ±45% +100 ppm/°C
- Operating Temperature Range: -85°C to +155°C (FC4L16: -40°C to +125°C)
- Maximum Power: 0.25W to 5W depending on series
- Maximum Voltage: Rated Power x Resistance value (up to 120W for higher series)
- In-rush Current Overload: Rated voltage, 10msec ON/60sec OFF, cycles depend on series
- Solderability & Endurance: Meets military standards, withstands high temperature & moisture conditions
- Size & Packaging: Industry-standard sizes, reeling options, suitable for wave and reflow soldering
- Construction: Metal foil, Ni-Cu-Mn resistive element, thermally stable, low inductance

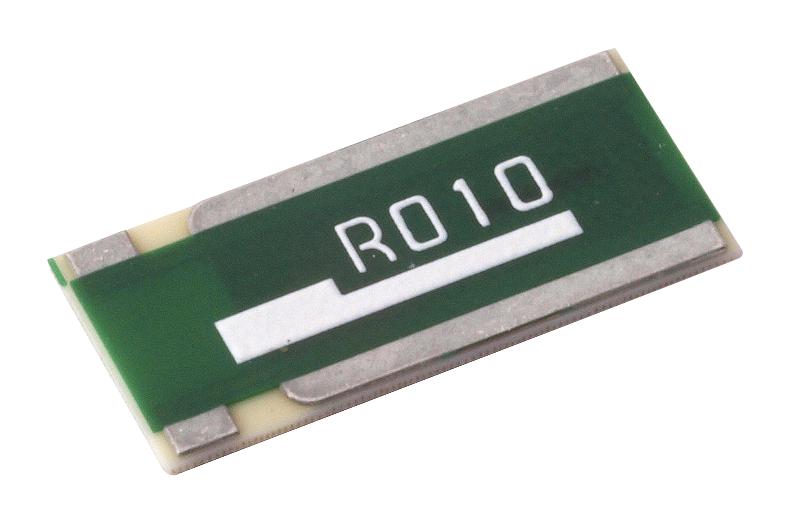

Buy the Buy Ohmite FC4L Series Current Sense Resistors Part Number FC4L76R003FER Online
Experience precise current measurement with the Ohmite FC4L series, featuring four-terminal metal foil construction designed for stability and high heat resistance. These resistors are perfect for automatic insertion and high-performance circuits, offering excellent thermal stability and low inductance. Available in various power ratings in industry-standard sizes, they ensure reliable operation under demanding conditions. Purchase online today to enhance your electronic designs with this durable, high-quality sense resistor, backed by trusted performance and fast shipping.
Buy Ohmite FC4L76R003FER high-accuracy sense resistor now and ensure reliable current measurement with high stability for your electronic applications.
Frequently Asked Questions
Where can I buy Ohmite FC4L76R003FER?
You can click on the BUY or RFQ button to purchase FC4L76R003FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4L76R003FER?
You can download the FC4L76R003FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4L76R003FER?
Ohmite
