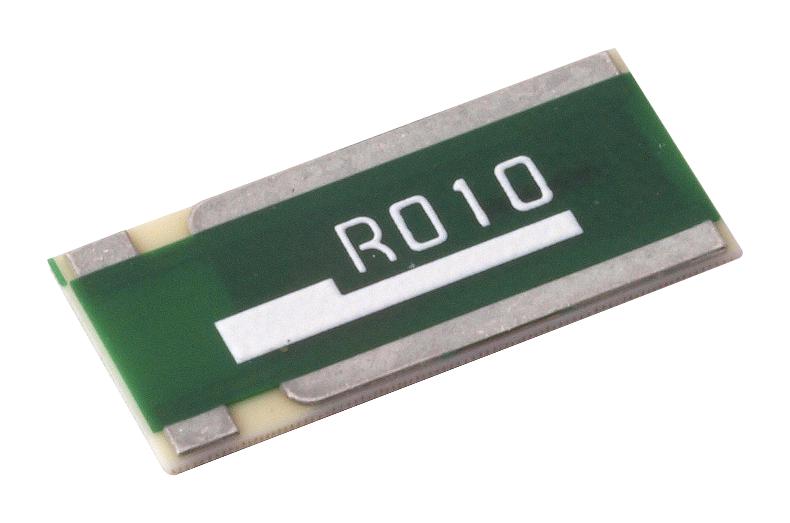

Ohmite FC4L76R010FER Current Sense Resistor
The FC4L Series consists of four-terminal, metal foil current sense resistors designed for high stability and precision in electronic circuits. These resistors feature industry-standard sizes, high heat resistance, and low electromotive force. Constructed with Ni-Cu-Mn resistive elements, they include a built-in four-terminal Kelvin design with large electrodes for current management and smaller electrodes for measurement. Suitable for automatic insertion, these resistors offer reliable performance in various industry applications, including precision measurement and power sensing, with options in 2W and 5W packages, ensuring durability and consistent resistance over temperature ranges from -85°C to +155°C.
Ohmite FC4L76R010FER Current Sense Resistor Specifications:
- Power Series Rating: 2W, 4W, 5W
- Resistance Range: 0.25mΩ to 100mΩ
- Resistance Tolerance: ±0.5%, ±1%, ±2%, ±3%
- Temperature Coefficient of Resistance: ±41 ppm/°C to ±45 ppm/°C
- Operating Temperature Range: -85°C to +155°C (FC4L16: -40°C to +125°C)
- Max Temperature for Rated Power: 70°C at ambient
- Rated Voltage: (Rated power x Resistance value)
- In-rush Current: Up to 95A depending on series
- Solderability: Meets industry standards with soldering temperatures up to 260°C
- Moisture Resistance: Tested for 1,000 hours at 60°C and 85% RH
- Physical Dimensions: Industry standard sizes with specific mounting tapes and reel packages
Buy the Buy Ohmite FC4L Series Current Sense Resistor Part Number FC4L76R010FER Online
Purchase the Ohmite FC4L series current sense resistor FC4L76R010FER online today and ensure your electronic systems benefit from high stability, precise resistance measurement, and reliable performance. Designed for automatic insertion and high heat resistance, this resistor offers excellent durability across a wide temperature range, making it ideal for power sensing and measurement applications. With industry-standard sizes, low electromotive force, and robust construction, you can trust this component for long-term operational stability and accuracy in demanding environments.
Get Ohmite FC4L series current sense resistor FC4L76R010FER today—built for precision and long-lasting durability in power measurement applications.
Frequently Asked Questions
Where can I buy Ohmite FC4L76R010FER?
You can click on the BUY or RFQ button to purchase FC4L76R010FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4L76R010FER?
You can download the FC4L76R010FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4L76R010FER?
Ohmite
