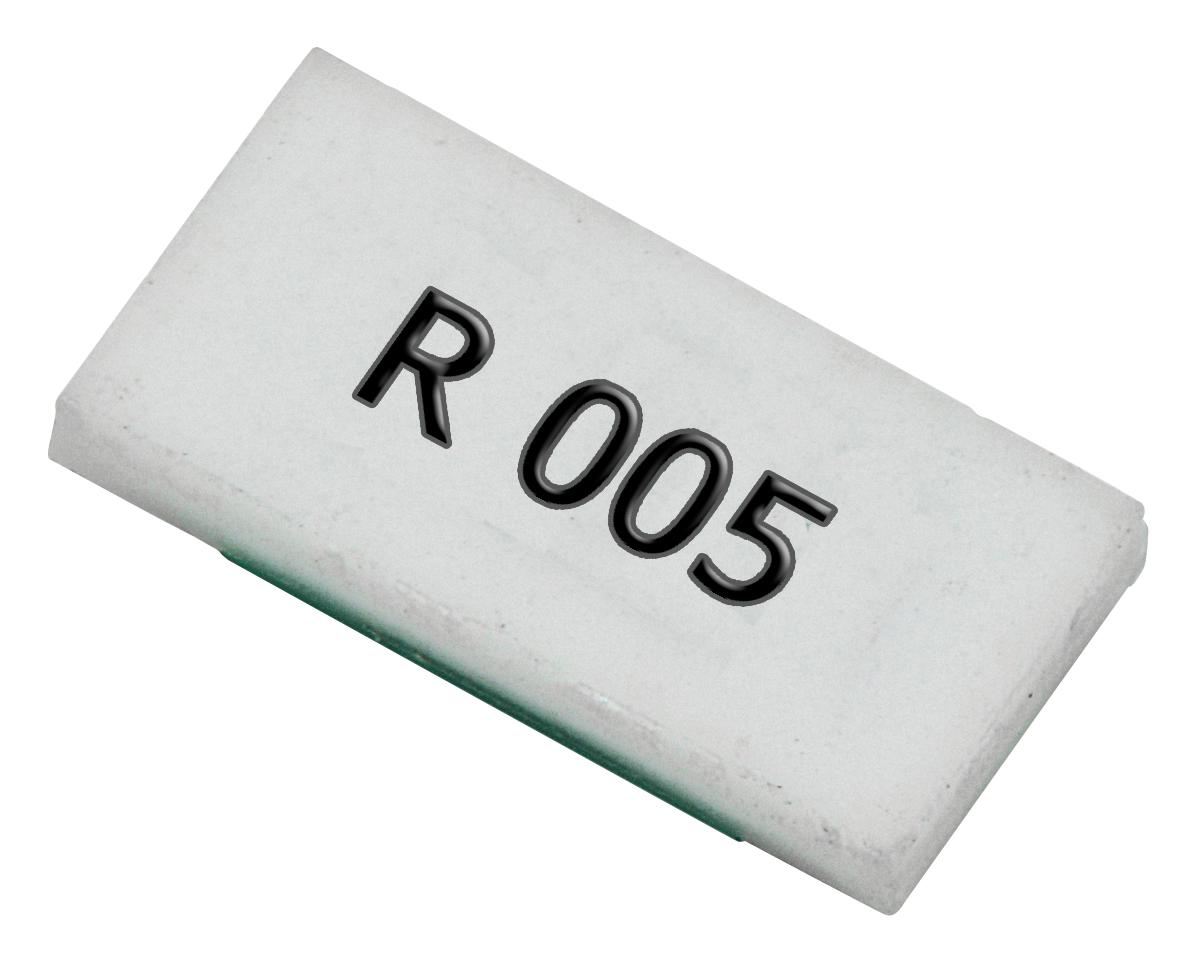

Ohmite FC4TR005FER Low Resistance Chip
The FC4T chip features a four-terminal 'Kelvin' configuration, enabling precise current measurement by allowing current to flow through two terminals while sensing voltage across the remaining two. This setup reduces the influence of resistance and terminal temperature effects for improved accuracy. Made with Ohmite's proprietary metal foil technology, it provides an excellent Temperature Coefficient of Resistance (TCR), even at very low resistance levels down to 50 ppm. Suitable for precision applications requiring stable, low-resistance components with high temperature stability and reliability.
Ohmite FC4TR005FER Low Resistance Chip Specifications:
- Power Resistance: 0.5W at 70°C
- Resistance Range: 0.005-0.100Ω
- Tolerance: 0.5%, 1%
- Temperature Coefficient of Resistance: 50ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Max. Current: 27.55A (max power depends on resistance)
- Construction: Cu/Ni/Sn terminals, epoxy resin coating, alumina substrate
- Resistance of Electrodes: <5mΩ
- Maximum Soldering Temperature: 275°C for 20 seconds
- Certified as UL and CSA compliant
Buy the Ohmite FC4TR005FER – Reliable Precision Resistance for Industrial Applications
Get your Ohmite metal foil low resistance chip now online and ensure precise, stable current measurements in industrial and electronic applications. Designed with Kelvin configuration and low TCR, this component guarantees high accuracy and reliability. With a robust construction, it withstands high temperatures and environmental stress, making it ideal for precision measurement, instrumentation, and low-resistance applications. Purchase today for swift delivery and integrate trusted, high-quality resistance components into your projects with confidence and ease.
Order your Ohmite Series FC4TR005FER low resistance chip today and enhance your industrial measurement systems with dependable, high-precision components.
Frequently Asked Questions
Where can I buy Ohmite FC4TR005FER?
You can click on the BUY or RFQ button to purchase FC4TR005FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4TR005FER?
You can download the FC4TR005FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4TR005FER?
Ohmite
