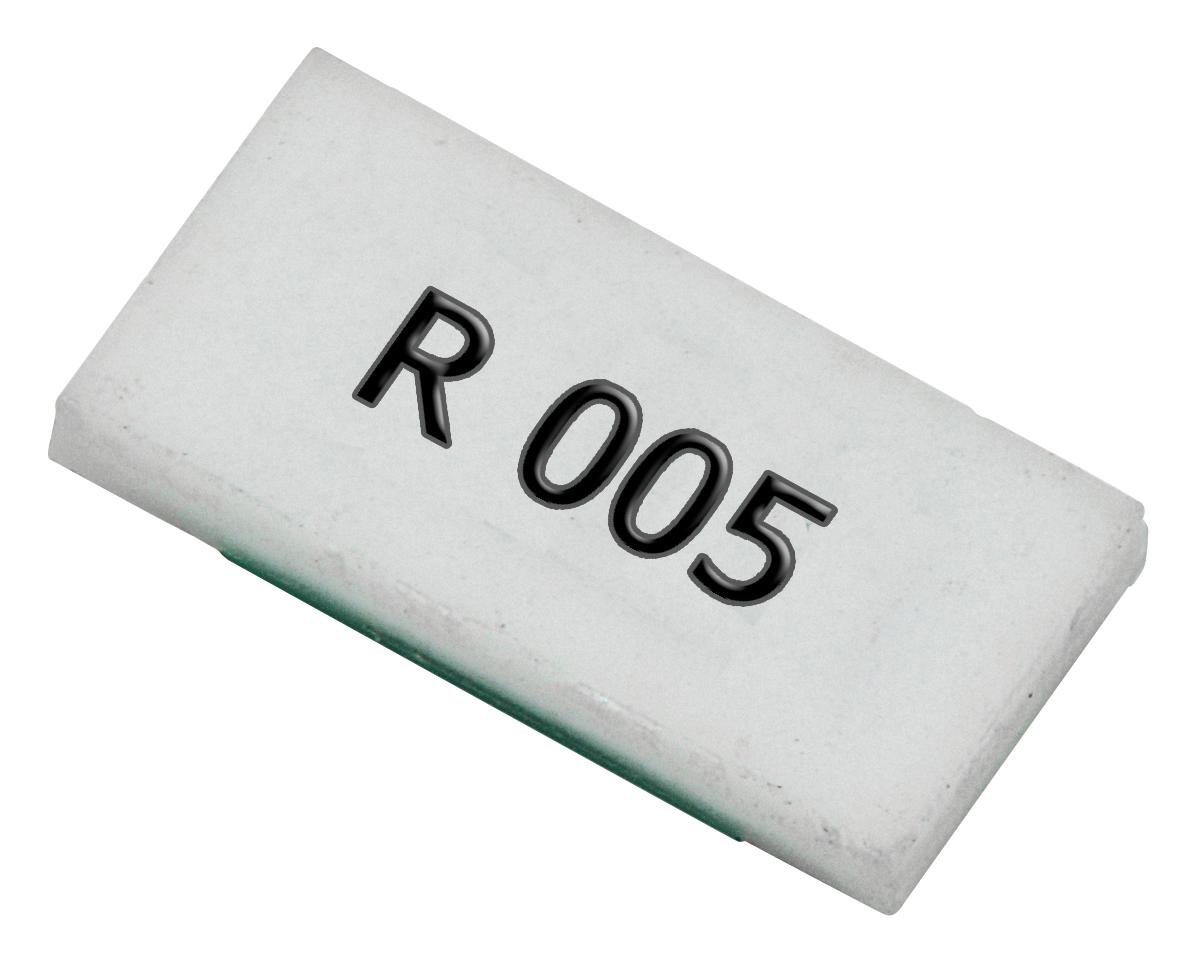

Ohmite FC4TR015DER Low Resistance Measurement Chip
The FC4T chip features a four-terminal Kelvin configuration, allowing current to be applied through two terminals while measuring voltage across the other two. This design minimizes the effects of terminal resistance and temperature coefficient, resulting in more accurate current measurements. Manufactured with Ohmite's proprietary Metal Foil technology, it offers an excellent Temperature Coefficient of Resistance (TCR), even for very low resistance values down to 50 ppm. Its epoxy resin coating and copper alloy electrodes enable reliable performance in high-temperature environments, making it suitable for precise measurement applications.
Ohmite FC4TR015DER Low Resistance Measurement Chip Specifications:
- Power Rating: 0.5W @70°C
- Resistance Range: 0.005-0.100Ω
- Resistance Tolerance: 0.5% and 1%
- Temperature Coefficient of Resistance: 50ppm
- Operating Temperature Range: -55°C to +155°C
- Terminals: Cu/Ni/Sn
- Construction: Epoxy resin coating, Cu-alloy resistor
- Max. Current: 27.55A (max. power = resistance value)
- Size: 1206 package
- Peak Operating Voltage and Power Output varies with resistance
- Short Time Overload, High Temp. Exposure, Solderability, Mechanical Shock, and Resistance to Solder Heat tests confirm durability
- Compliance: IEC60115 standards with robust performance in various environmental conditions
Buy the Ohmite Series FC4T Metal Foil Low Value Chip: FC4TR015DER
Order the Ohmite FC4TR015DER low resistance measurement chip today online and benefit from superior accuracy with four-terminal Kelvin configuration. Manufactured using advanced Metal Foil technology, this resistor ensures excellent TCR performance, stability, and durability in high-temperature environments. Its epoxy resin coating and copper alloy terminals provide reliable performance for precision current measurement applications. Whether for industrial, testing or calibration purposes, purchase online now to enjoy fast delivery and competitive pricing on this high-quality component.
Buy Ohmite FC4TR015DER now and experience unmatched reliability and high-precision current measurement with durable Metal Foil technology.
Frequently Asked Questions
Where can I buy Ohmite FC4TR015DER?
You can click on the BUY or RFQ button to purchase FC4TR015DER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4TR015DER?
You can download the FC4TR015DER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4TR015DER?
Ohmite
