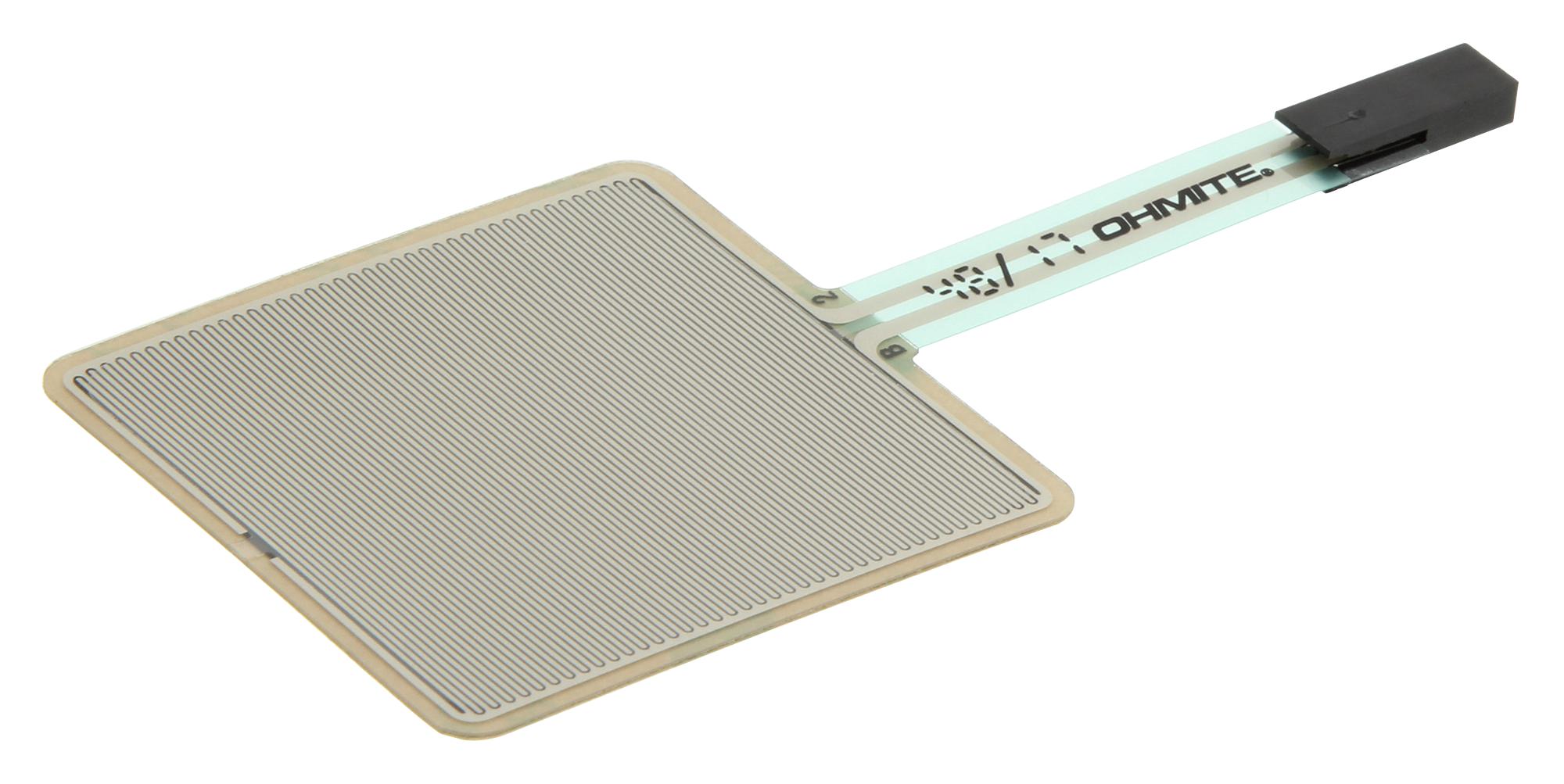

Ohmite FSR01CE Force Sensing Resistor
The force sensing resistor features a 39.70 x 39.70 mm active sensing area in a standard square format, with a dynamic resistance that varies inversely with applied force. Ideal for human-machine and machine-machine interface applications, it detects force changes from approximately 20 grams to 5 kilograms, depending on size, shape, and materials. The device includes a compatible connector housing based on Nicomatic standards, providing reliable signal connectivity. Designed for applications requiring force variation detection, it is not intended for high-accuracy weight measurement or precise force quantification, ensuring durability and consistent performance.
Ohmite FSR01CE Force Sensing Resistor Specifications:
- Active area: 39.70 x 39.70 mm
- Thickness (including sensor): 0.375mm
- Overall sensor width: 43.69 x 43.69 mm
- Tail length: 83.09 mm
- Tail width: 39.40 mm
- Force range: up to 5kg
- Force actuation force: less than 20g for 10MΩ resistance
- Long-term drift: less than 2% over 48 hours at 1kg
- Operating temperature range: -20°C to +85°C
- Storage temperature: -20°C to +85°C
- Cycle durability: 10 million cycles at 0.5kg force
- Hysteresis: 5%
- Connector: Nicomatic-compatible housing
- Interconnect options: Solder tab, connector housing, female locking housing
Buy the Buy Ohmite FSR Series Part Number FSR01CE Online
Purchase the Ohmite FSR01CE force sensing resistor today, perfect for detecting applied force variations in diverse applications. Its 39.70 x 39..70 mm active sensing area ensures precise force detection from roughly 20 grams to 5 kilograms. Featuring a connector compatible with Nicomatic standards and a rugged design, it offers durability and consistent performance under various environmental conditions. Ideal for HMI and MMI interfaces, this sensor provides excellent repeatability over millions of cycles. Shop online now for fast delivery and trusted quality.
Buy Ohmite FSR01CE force sensing resistor now and experience reliable force detection for human-machine interface applications.
