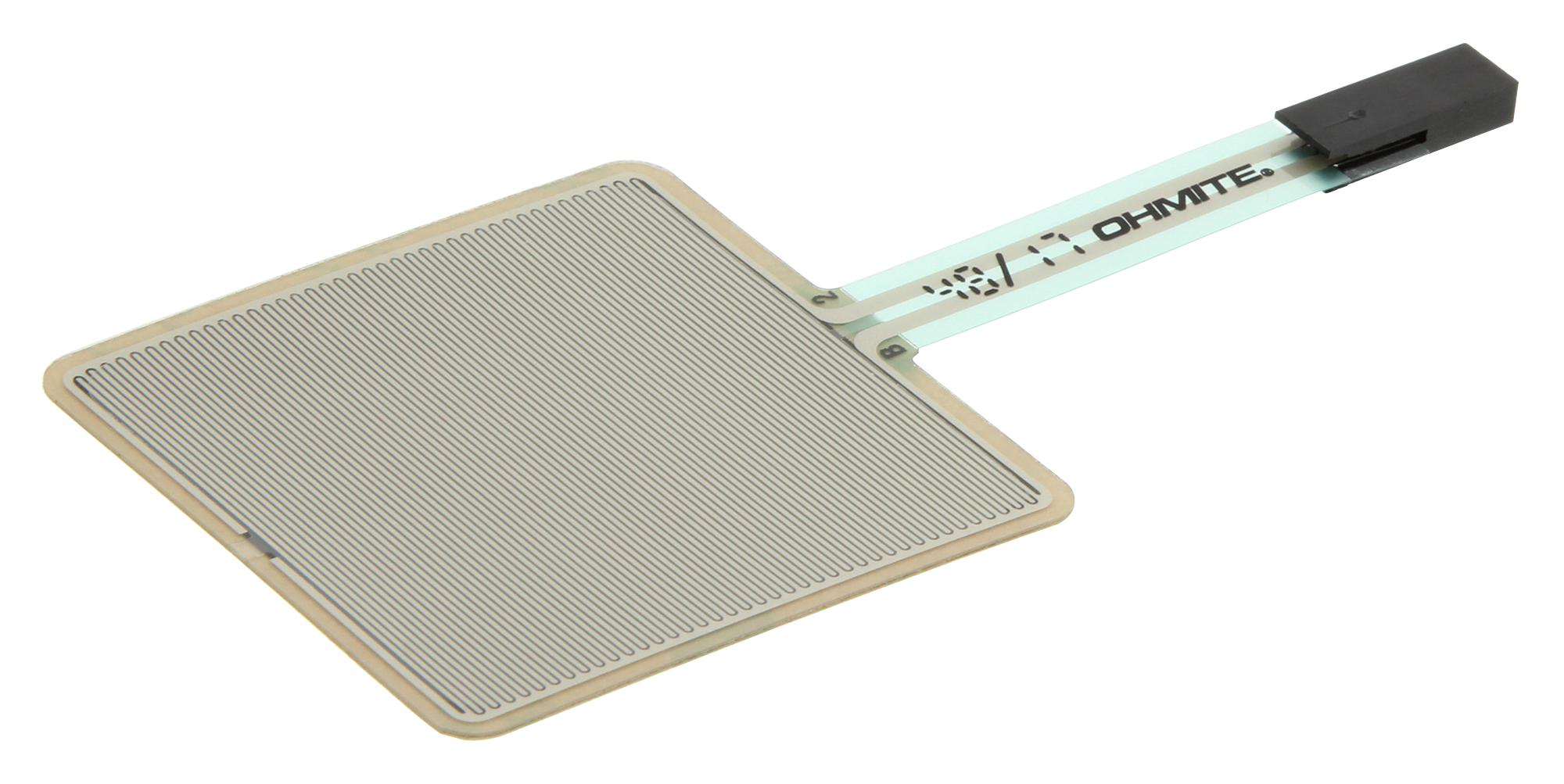

Ohmite FSR01DE Force Sensing Resistor
The Force Sensing Resistor series provides dynamic resistance that varies inversely with applied force, ideal for Human-Machine and Machine-Machine interfaces. These sensors, with force ranges up to 5kg, are designed for applications detecting changes in force rather than precise weight measurements. They feature different sizes and configurations, with actuation forces typically below 20g to 80g. Suitable for various force sensing and interface applications, they offer consistent repeatability, stability in storage, and durability for up to 10 million cycles, making them reliable for interactive and automation projects.
Ohmite FSR01DE Force Sensing Resistor Specifications:
- Thickness (including sensor overall): 0.325mm - 0.425mm
- Active area sizes: 15.20mm x 604.60mm to 43.69mm x 43.69mm
- Tail length: 6.35mm to 762mm
- Force to reach 10MΩ: <15g to <20g
- Force range: Up to 5kg, various models
- Long-term drift: <1% to 2% over 48 hours at 1kg
- Repeatability: Standard deviation within 2%
- Storage temperature: -20°C to +85°C with minimal resistance change
- Lifecycle durability: Up to 10 million cycles with 3Hz force application
- Hysteresis: 5% average change in resistance over 100 actuations
- Operational temperature range: -20°C to +85°C
- Resistance change in harsh conditions: 7-12% in storage and high humidity
- Trace pitch: 0.25mm to 0.50mm, spacer height: 0.125mm
- Interconnect options: Bare tail, solder tab, connector housing, or locking connector housing
Buy the Buy Ohmite Force Sensing Resistor Series FSR Part Number FSR01DE Online
Purchase the Ohmite Force Sensing Resistor Series FSR01DE online today and benefit from high-precision force detection suitable for interactive control, robotics, and automation projects. These sensors feature stable resistance characteristics, long-term durability, and a wide force range up to 5kg, making them perfect for dynamic force measurement in various industrial and technological applications. Easy to integrate with multiple interconnect options, they ensure dependable performance and consistent results, helping you achieve your project goals efficiently and cost-effectively.
Order your Ohmite Series FSR01DE force sensing resistor today and enhance your force detection projects with reliable, precise sensors designed for durability.
Frequently Asked Questions
Where can I buy Ohmite FSR01DE?
You can click on the BUY or RFQ button to purchase FSR01DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FSR01DE?
You can download the FSR01DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of FSR01DE?
Ohmite
