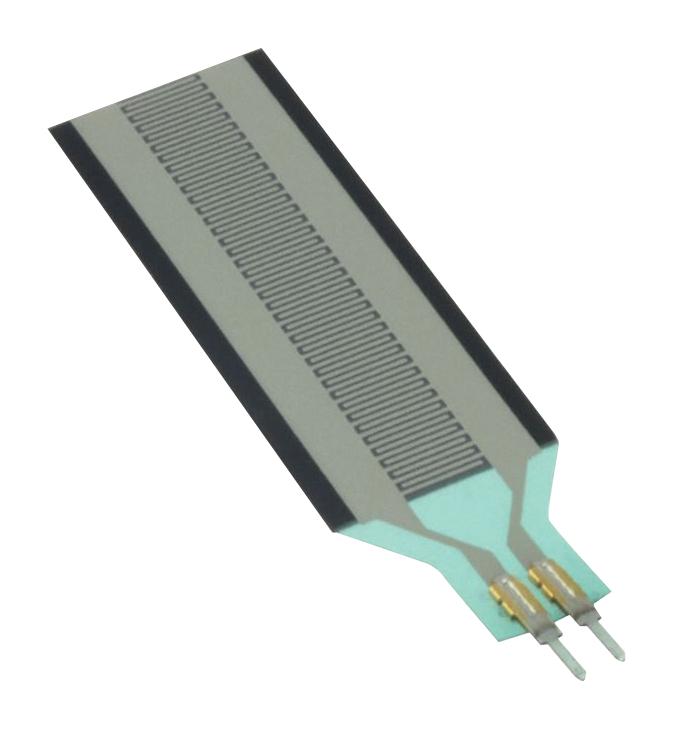

Ohmite FSR02CE Force Sensing Resistor
The force sensing resistor series exhibits dynamic resistance related to applied force, commonly used in Human-Machine Interface and Machine-Machine Interface applications. These sensors respond to forces up to 5kg, with low actuation forces under 20g to 15g depending on the model. Designed for detecting changes in applied force rather than precise weight measurement, they deliver consistent performance over long-term use, high humidity, and temperature variations, making them ideal for flexible force detection in industrial and automation projects.
Ohmite FSR02CE Force Sensing Resistor Specifications:
- Active area: FSRO1 39.70 x 39.70mm, FSRO2 60.4 x 10.2mm, FSRO3 25.42mm, FSRO4 5.60mm, FSROS 5.60mm, FSRO6 14.70mm, FSRO7 14.70mm
- Thickness (including sensor and adhesive): 0.325mm to 0.425mm
- Force range: Up to 5kg, with linear region of log/log
- Actuation force: <20g to 15g depending on model, average of 100 samples
- Long-term drift: <2% to 1% over 48 hours at 1kg
- Temperature range: -20°C to +85°C
- Storage conditions: -20°C for 250hrs, +85°C for 250hrs
- High humidity storage: 85°C/85%RH for 250hrs, change in resistance 8-12%
- Lifecycle durability: 3% to 17% resistance change over 10 million cycles
- Hysteresis: <5% over 100 actuations
- Operational temperature: -20°C to +85°C
- Trace pitch: 0.25mm to 0.50mm, Spacer height: 0.125mm
- Terminal types: Bare tail, Solder tab, Female crimp with housing, Female locking connector housing
Buy the Ohmite FSR02 – Reliable Force Sensing Resistor for Industrial Applications
Enhance your force measurement and control systems with the Ohmite FSR series force sensing resistors. Engineered for durability and consistent performance, these sensors respond to forces up to 5kg with low actuation force. Ideal for Human-Machine and Machine-Machine Interface applications, they are suitable for diverse environments including high humidity and temperature variations. Easily integrate these thin, reliable sensors into your automation, robotics, or touch interface projects to achieve accurate force detection and improved operational efficiency. Order now for fast delivery.
Order your Ohmite Series FSR02 force sensing resistor today and benefit from precise force detection for your industrial automation projects.
Frequently Asked Questions
Where can I buy Ohmite FSR02CE?
You can click on the BUY or RFQ button to purchase FSR02CE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FSR02CE?
You can download the FSR02CE datasheet or visit the Ohmite website for support.
Who is the manufacturer of FSR02CE?
Ohmite
