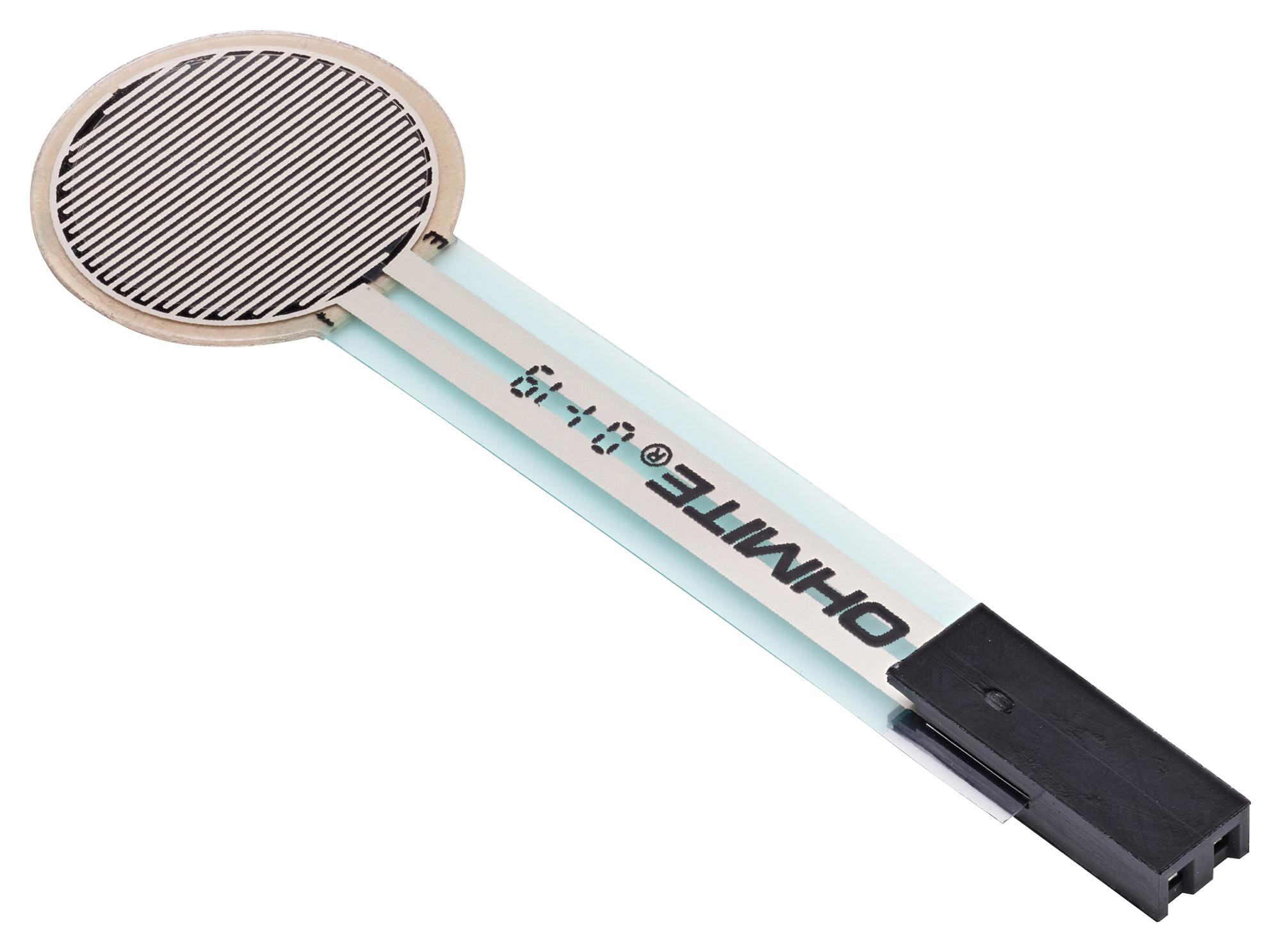

Ohmite FSR07CE Force Sensing Resistor
The FSR series force sensing resistors feature dynamic resistance that varies inversely with applied force. Designed for Human-Machine Interface (HMI) and Machine-Machine Interface (MMI) applications, they detect shifts in force, with ranges up to 5kg. Variants like FSR07 offer low actuation force thresholds, high durability over 10 million cycles, and stability across temperature and humidity extremes. Ideal for detecting force changes rather than precise weight measurement, these sensors serve in touch-sensitive controls and force detection systems with reliable long-term performance.
Ohmite FSR07CE Force Sensing Resistor Specifications:
- Series: FSR07
- Active area: 18.00mm
- Thickness: 0.375mm
- Overall sensor width: 25.00mm
- Overall length: 56.34mm
- Tail length: 7.62mm
- Tail width: 3.81mm
- Force range: Up to 5kg
- Actuation force: <15g
- Long term drift: 1%
- Repeatability: 2%
- Storage temp: -20°C to +85°C
- Storage humidity: 85%RH for 250hrs
- Lifecycle durability: 10M cycles with 3-3% change
- Hysteresis: 5%
- Operational temp: -20°C to +85°C
- Force resolution: Suitable for detecting force changes, not precise weight measurement
Buy the Buy Ohmite FSR Series Force Sensing Resistor Part Number FSR07CE Online
Discover the reliable Ohmite Force Sensing Resistor FSR07CE, designed for detecting changes in applied force with high durability and stability. Its low actuation force threshold of less than 15 grams makes it perfect for sensitive human-machine interfaces and force detection systems. The sensor offers a robust lifespan of over 10 million cycles, excellent temperature and humidity stability, and accurate force response up to 5kg. Purchase online today to incorporate precise, durable force sensing capabilities into your project or product.
Buy Ohmite FSR07CE now and experience unmatched reliability and performance in force detection applications with long life and stability.
Frequently Asked Questions
Where can I buy Ohmite FSR07CE?
You can click on the BUY or RFQ button to purchase FSR07CE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FSR07CE?
You can download the FSR07CE datasheet or visit the Ohmite website for support.
Who is the manufacturer of FSR07CE?
Ohmite
