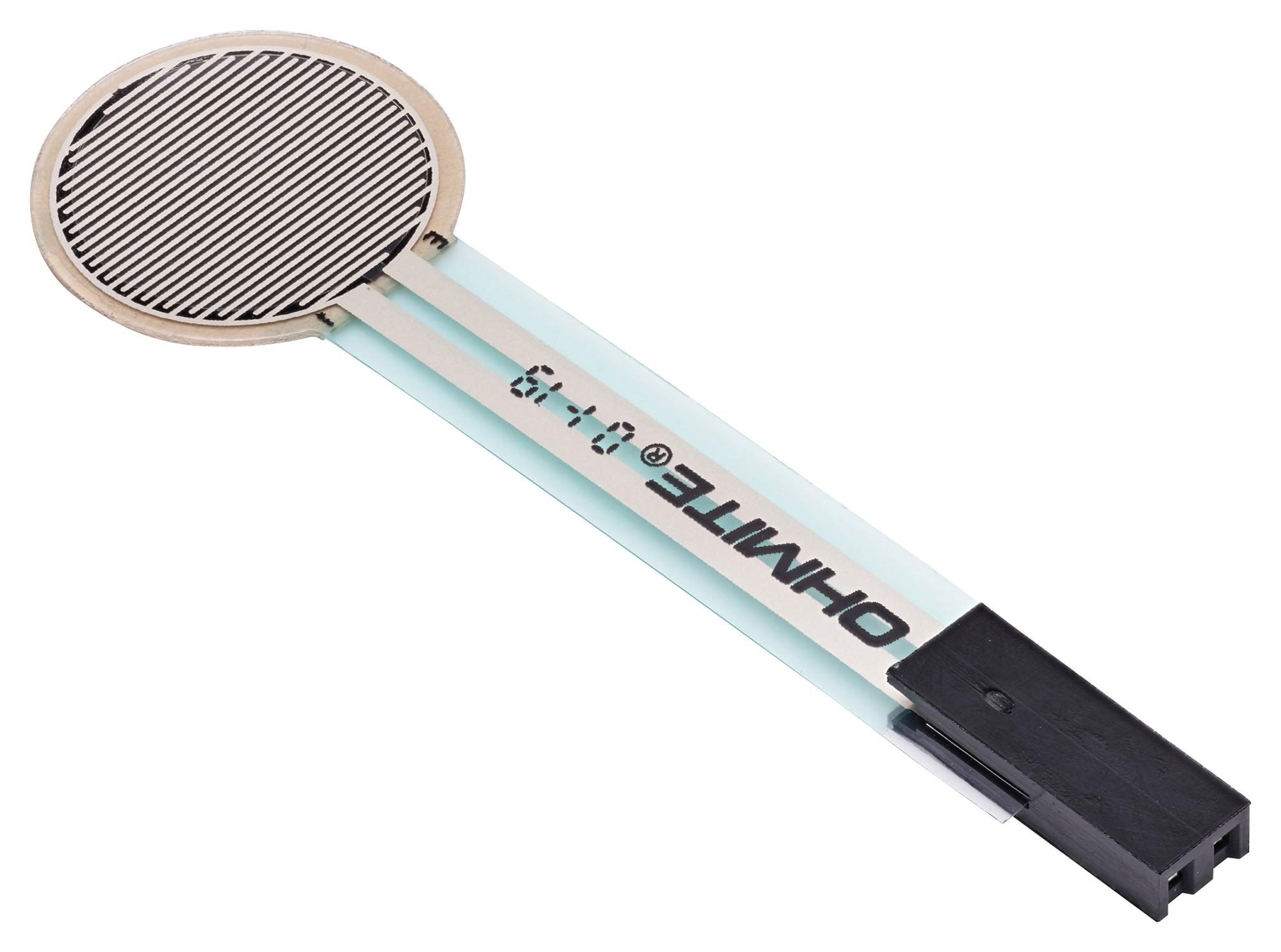

Ohmite FSR07DE Force Sensing Resistor
The FSR Series Force Sensing Resistor detects varying applied forces with resistance inversely related to force. Ideal for Human-Machine Interface (HMI) and Machine-Machine Interface (MMI) applications, these sensors operate in a force range up to 5kg. The series offers different sizes, thicknesses, and connection options such as solder tabs and connectors. Designed for durability and stability, they feature low hysteresis, minimal drift, and a long lifecycle reaching 10 million cycles, making them suitable for force detection in diverse environments.
Ohmite FSR07DE Force Sensing Resistor Specifications:
- Series: FSR07
- Active area: 18.00mm diameter
- Thickness: 0.375mm
- Overall sensor length: 56.34mm
- Tail length: 7.62mm
- Tail width: 0.25mm
- Force range: Up to 5kg
- Actuation force to reach 10MQ: <15g
- Lifecycle durability: 10 million cycles
- Temperature range: -20°C to +85°C
- Hysteresis: 5%
- Long term drift: <2%
- Storage temperature: -20°C to +85°C
- Humidity storage: 85°C/85%RH for 250 hours with <12% resistance change
- Force sensitivity: Inversely proportional to resistance, suitable for dynamic force detection
- Electrical characteristics: Minimum force required to reach 10MQ, reliable repeatability
- Connection options: Solder tab, connector housing, female locking connector
- Designed for applications where force change detection is essential, not for precise weight measurement
Buy the Buy Ohmite FSR Series Part Number FSR07DE Online
Order the Ohmite Force Sensing Resistor FSR series online today to benefit from high durability, excellent repeatability, and wide force detection range up to 5kg. These sensors are perfect for human and machine interface applications, providing accurate resistance changes based on applied force. With options for solder tabs and connector housings, they ensure easy integration into your systems. Trust in Ohmite’s quality to deliver consistent performance, long lifecycle, and resistance stability across various environmental conditions for your force detection needs.
Buy Ohmite FSR07DE now and experience reliable force sensing ideal for human-machine interfaces with durable long life.
Frequently Asked Questions
Where can I buy Ohmite FSR07DE?
You can click on the BUY or RFQ button to purchase FSR07DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FSR07DE?
You can download the FSR07DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of FSR07DE?
Ohmite
