Ohmite HS1001KF High Power Aluminium Resistor
The HS Aluminium Housed Resistor is designed for high-power applications with direct heatsink mounting and thermal compound, complying with MIL 18546 and IEC 115 standards. It features wound construction for high pulse capability, low inductance, and a range of ohmic values from R005 to 100K. Suitable for use in demanding environments, it offers excellent insulation resistance, adjustable tolerances, and is RoHS compliant. The resistor's surface temperature rise is managed by heat dissipation including proprietary heatsinks, ensuring reliable performance at high ambient temperatures.
Ohmite HS1001KF High Power Aluminium Resistor Specifications:
- Power Dissipation Range: 4W to 300W depending on size
- Resistance Values: R005 to 100K
- Tolerance: +5% (J), +10% (K), also available +1% (F), +2% (G), +3% (H)
- Temperature Coefficient: < 1K 100ppm Std., > 1K 25ppm Std.
- Insulation Resistance: Minimum 10,000 MΩ (dry)
- Operating Voltage: Divide standard max by 1.414 for NHS models
- Temperature Rise: Controlled by heat sinking, max hot spot temperature 200°C
- Physical Dimensions: Refer to specific series sizes, e.g., HS100 Max dimensions 88.0mm length
- RoHS Compliant: Yes
- Construction: Wound, aluminium enclosure with heatsinking options
- Mounting: Direct heatsink mounting with thermal compound, optional proprietary heatsinks
- Certifications: MIL 18546, IEC 115 compatibility

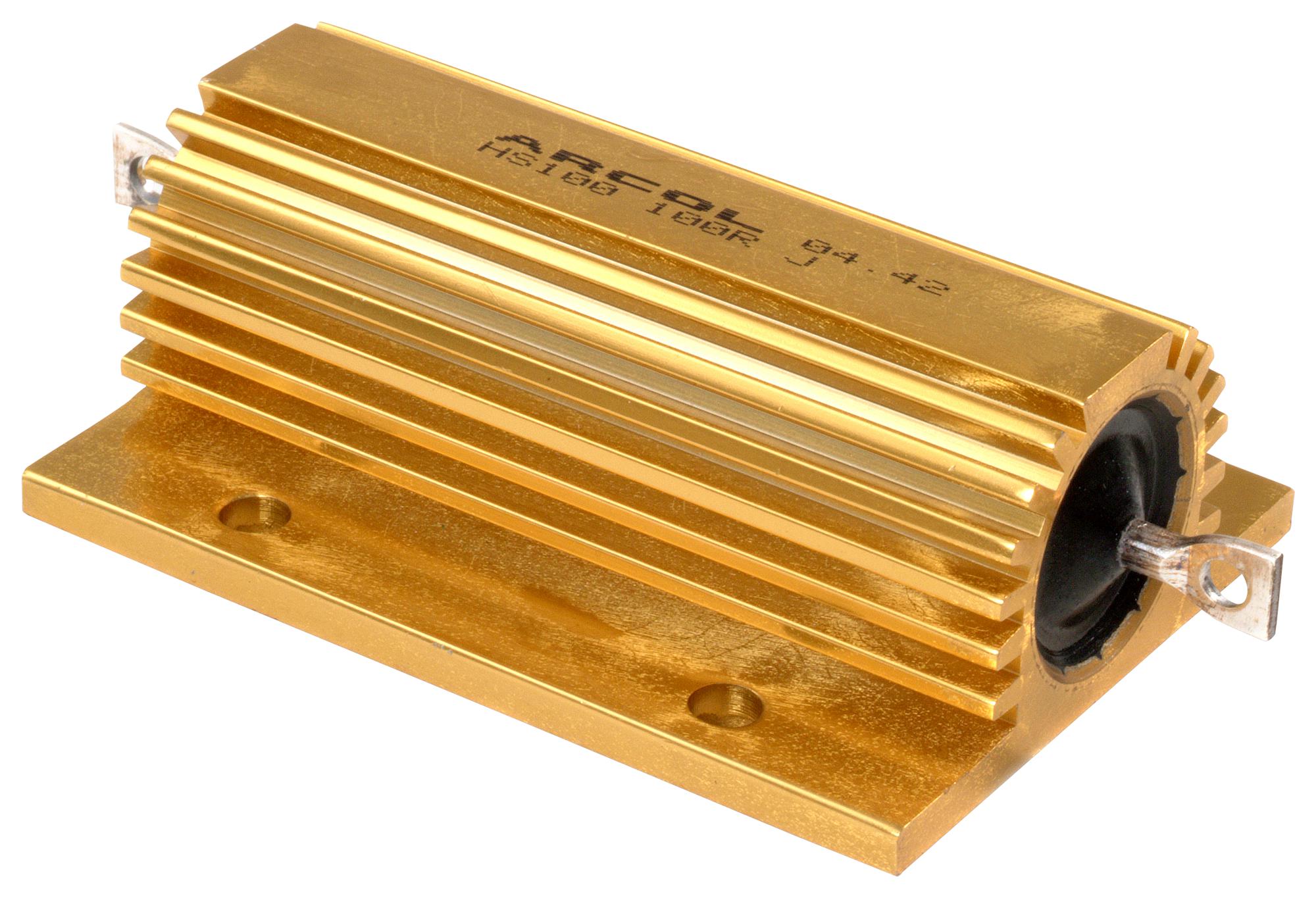

Buy the Arcol Series HS High Power Resistor: HS1001KF
Experience the reliable performance of the Arcol HS series high power aluminium resistor, designed for demanding industrial applications. It offers excellent pulse capability, low inductance, and accurate resistance values, all in a robust aluminium housing that ensures efficient heat dissipation. Ideal for direct heatsink mounting, it complies with MIL 18546 and IEC 115 standards, and is RoHS compliant. Whether for high-temperature environments or high-power pulsed applications, this resistor ensures durability, consistent performance, and easy integration into your system. Order online today for fast, secure delivery.
Buy Arcol HS1001KF high power aluminium housed resistor now and ensure reliable performance and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Ohmite HS1001KF?
You can click on the BUY or RFQ button to purchase HS1001KF from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS1001KF?
You can download the HS1001KF datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS1001KF?
Ohmite
