Ohmite HS10150RJ High Power Resistor
The HS Aluminium Housed Resistors are designed for high power applications with direct heatsink mounting, offering excellent thermal performance. Made to meet MIL 18546 and IEC 115 standards, these resistors feature wound construction for high pulse capability, low inductance, and customizable designs. They are RoHS compliant, with voltage and resistance ratings depending on size, and feature a maximum surface temperature of 200°C. Suitable for use in power dissipation, electronic circuitry, and industrial applications where reliable high power resistance is required.
Ohmite HS10150RJ High Power Resistor Specifications:
- Power Dissipation: 150 Watts at 25°C, derates linearly to zero at 200°C
- Resistance Range: R005 to 100K depending on size and wattage
- Tolerance: ±5% (J), ±10% (K), available with other tolerances (F, G, H)
- Insulation Resistance: Minimum 10,000 MΩ
- Temperature Coefficient: Typically <1K, 100ppm; >1K, 25ppm
- Max Surface Temperature: 200°C
- Voltage Ratings: Dependent on size; for example, HS150 approx 4500V peak
- Physical Dimensions: Vary by model (e.g., HS150 size includes length approx 121mm, width 72.5mm, height 24.1mm)
- Construction: Aluminium housing, wound wire element, optional low inductance (NHS) version available
- Mounting: Designed for direct heatsink mounting with thermal compound for optimal heat transfer
- RoHS Compliant: Yes

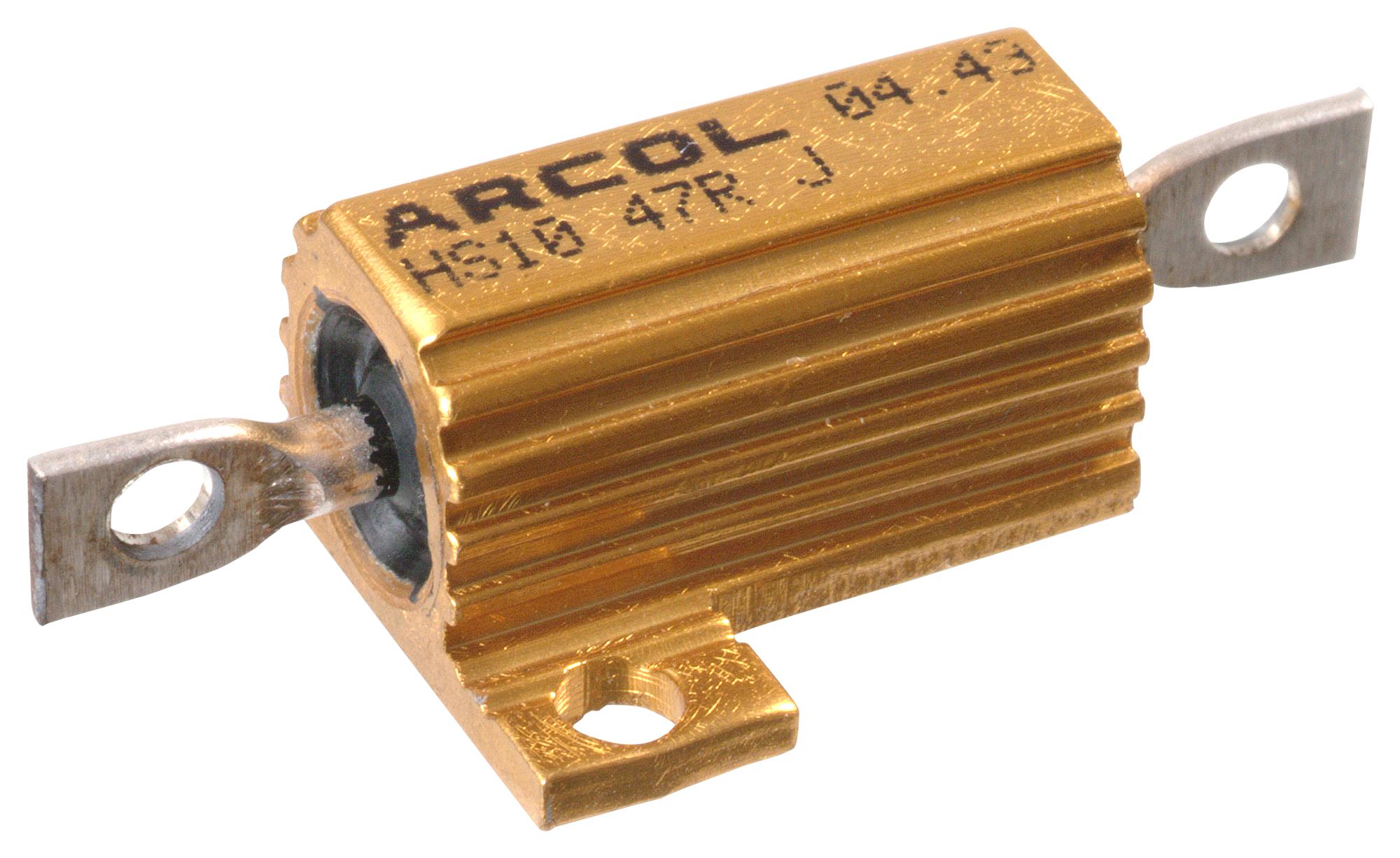

Buy the Arcol Series HS High Power Resistors: HS10150RJ
Purchase the Arcol Series HS150 aluminium housed resistor online today for robust thermal performance and high pulse capability. Engineered for high power applications, these resistors feature wound construction for maximum pulse capability, with resistance values R005 to 100K and voltage ratings suitable for demanding industrial environments. Designed for direct heatsink mounting with thermal compound, they ensure maximum heat transfer, maintaining a maximum surface temperature of 200°C. Perfect for power electronics, industrial power supplies, and high-performance circuits, offering reliability and RoHS compliance for eco-friendly operation.
Order your Arcol Series HS150 high power aluminium housed resistor today and ensure reliable power dissipation in your industrial applications.
Frequently Asked Questions
Where can I buy Ohmite HS10150RJ?
You can click on the BUY or RFQ button to purchase HS10150RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS10150RJ?
You can download the HS10150RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS10150RJ?
Ohmite
