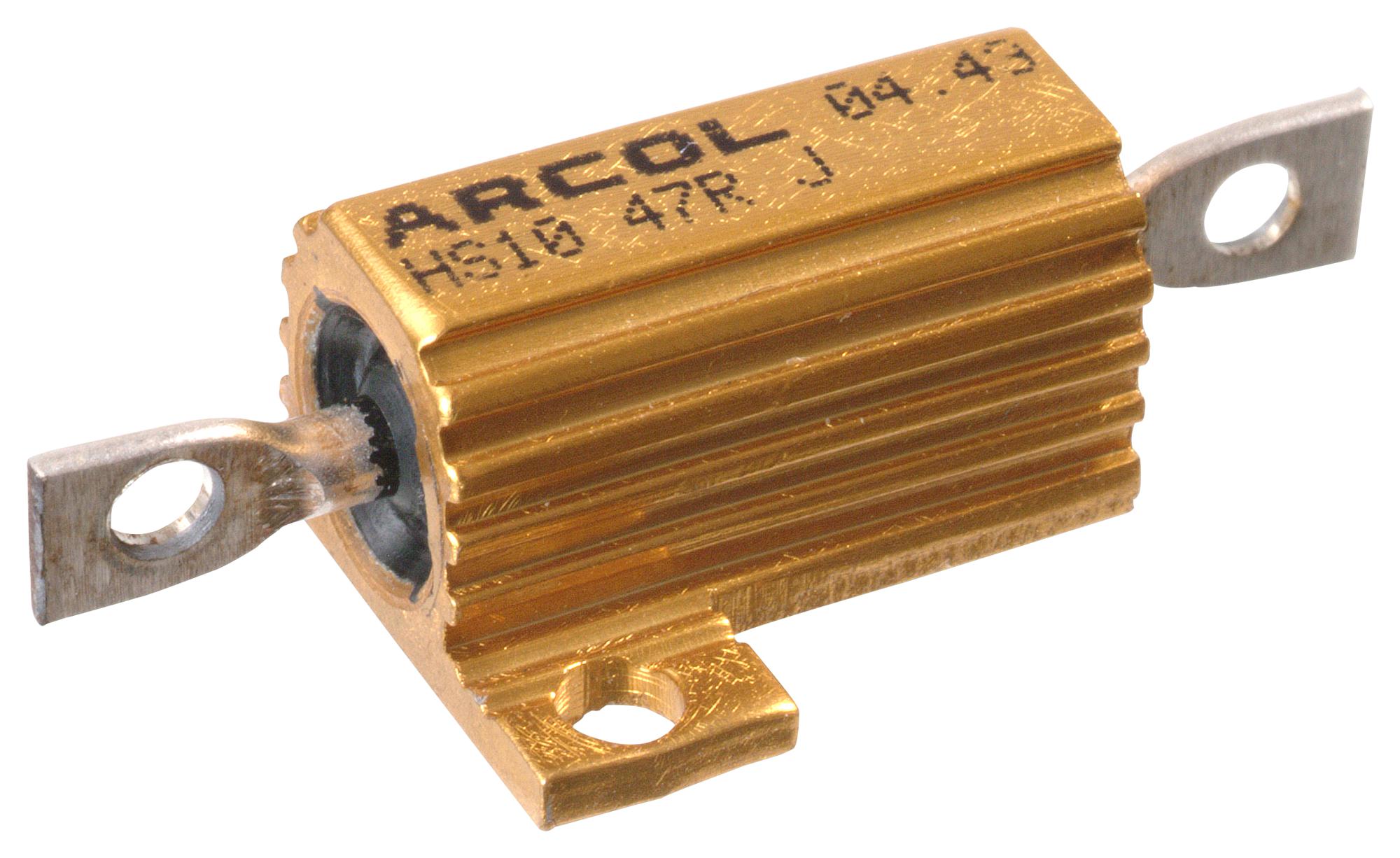

Ohmite HS1015RJ Aluminium Resistor
The HS aluminium housed resistors are high-power, non-inductive components designed for reliable performance in high-temperature environments. Suitable for direct heatsink mounting with thermal compound, these resistors can handle power dissipation up to 200°C thermally derated for ambient conditions. They feature standard and custom ohmic values from R005 to 100K, with tolerances of ±5% or ±10%, and are RoHS compliant. Ideal for applications requiring high pulse capability and efficient heat transfer, these resistors support various sizes and specifications to meet demanding electrical and thermal requirements.
Ohmite HS1015RJ Aluminium Resistor Specifications:
- Power rating: 10W to 300W depending on size and application
- Resistance range: R005 to 100K
- Tolerance: ±5% (J), ±10% (K), other tolerances available
- Temperature coefficient: typically < 1K 100ppm, std > 1K 25ppm
- Insulation resistance: minimum 10,000 MΩ
- Maximum surface temperature: 200°C
- Ohmic values: from 5Ω to 100KΩ depending on size
- Dimensions vary per model, e.g., HS100: 88.0 mm max length, HS15: 36.5 mm max length
Buy the Buy Arcol Aluminium Housed Resistors Part Number HS1015RJ Online
Order Arcol HS1015RJ aluminium resistor online now for reliable high-power performance. Ideal for industrial, electronic, and heat-sensitive applications, this resistor supports high pulse capability and efficient heat transfer. Designed for direct heatsink mounting with thermal compound, it features precise ohmic values, tolerances, and up to 300W power dissipation. Ensure optimal thermal management with RoHS compliance. Buy online today for fast delivery and guaranteed authentic quality suited for demanding engineering and manufacturing environments.
Get Arcol HS1015RJ aluminium resistor today—built for high pulse capability and long-lasting thermal performance.
Frequently Asked Questions
Where can I buy Ohmite HS1015RJ?
You can click on the BUY or RFQ button to purchase HS1015RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS1015RJ?
You can download the HS1015RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS1015RJ?
Ohmite
