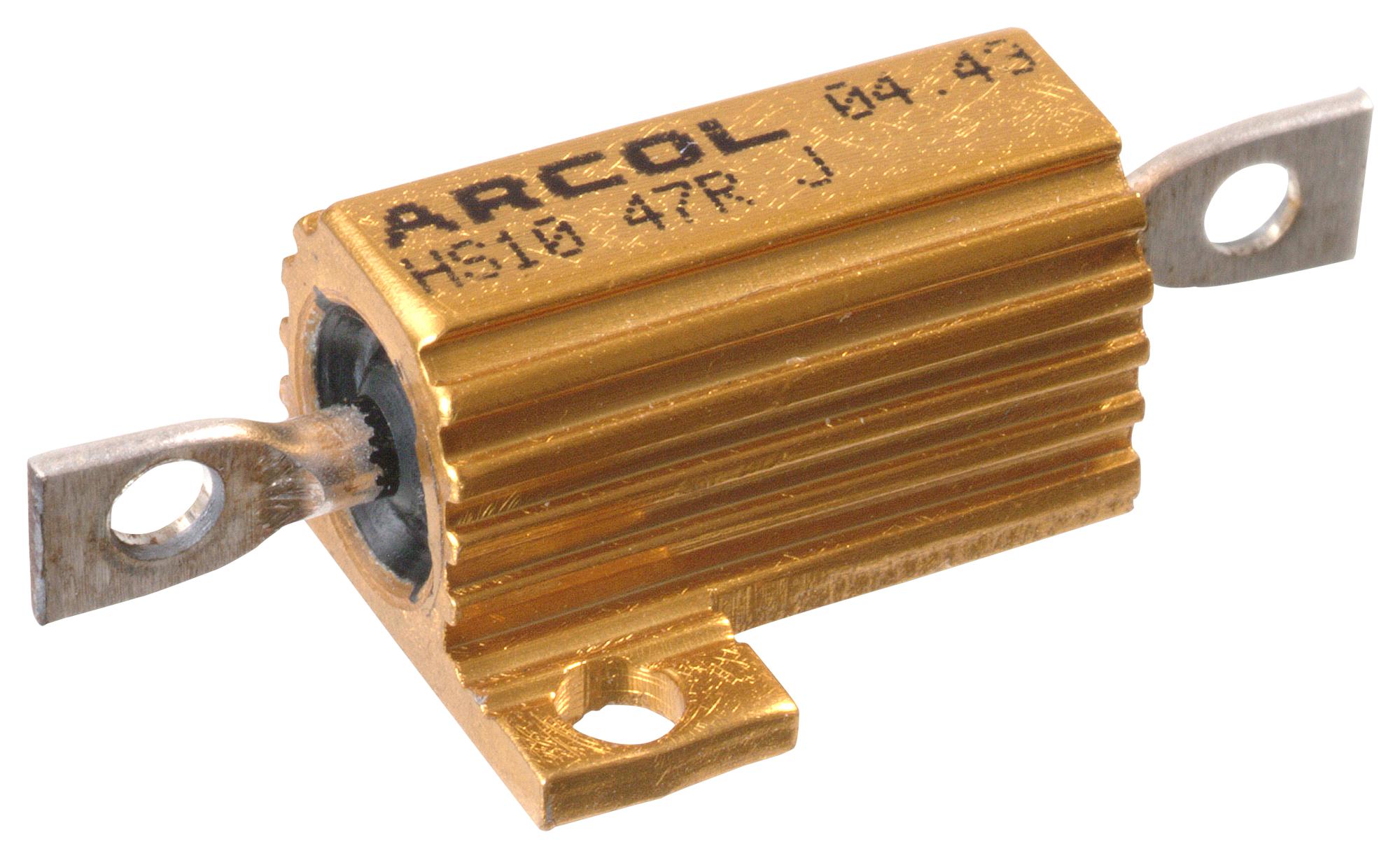

Ohmite HS1047RJ High Power Aluminium Resistor
The HS Aluminium Housed Resistors are high-power, compact components designed for direct heatsink mounting with thermal compound, ensuring maximum performance and efficiency. Built to meet MIL 18546 and IEC 115 standards, these resistors feature wound construction for high pulse capability, low inductance, and customizable tolerances. Suitable for high ambient environments, they provide reliable ohmic values from R005 to 100K with excellent insulation resistance. Their robust design and heat dissipation capabilities make them ideal for industrial and electronic applications requiring durable, low-profile resistor solutions.
Ohmite HS1047RJ High Power Aluminium Resistor Specifications:
- Power Dissipation: 4W @25°C, up to 300W with heatsink, derates linearly to zero at 200°C
- Resistance Range: R005 to 100K ohms, depending on wattage size
- Tolerance: Standard +5% (J), +10% (K); optional +1% (F), +2% (G), +3% (H)
- Temperature Coefficient: Typically < 1K 100ppm, > 1K 25ppm
- Insulation Resistance: Minimum 10,000 MΩ in dry conditions
- Voltage Rating: Standard working voltage divided by 1.414 for NHS models
- Heat Dissipation & Temperature Rise: Achieved via proprietary heatsinks with application of thermal compound
- Dimensions: Varied per size, e.g., HS10 Max length 30mm, width 16.5mm; HS300 Max length 184.4mm, width 72.5mm
- Construction: Wound for high pulse capability, low inductance, aluminium housing, RoHS compliant
Buy the Arcol Series HS High Power Resistors: HS1047RJ
Upgrade your electronic or industrial systems with our high power aluminium housed resistors. Designed for direct heatsink mounting, these resistors deliver high pulse capability, minimal inductance, and reliable performance across a wide resistance range. They are RoHS compliant and built to withstand high ambient temperatures, making them ideal for demanding applications. Order online today to ensure your projects benefit from durable, high-quality resistors with excellent insulation resistance and efficient heat dissipation, all backed by trusted manufacturer support.
Buy Arcol high power aluminium housed resistors like HS1047RJ now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Ohmite HS1047RJ?
You can click on the BUY or RFQ button to purchase HS1047RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS1047RJ?
You can download the HS1047RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS1047RJ?
Ohmite
