Ohmite HS2547RJ Aluminium Housed Resistor
The HS Aluminium Housed Resistors are high-power, thermally efficient components designed for direct heatsink mounting with thermal compound. Compliant with MIL 18546 and IEC 115 standards, these resistors feature wound construction for high pulse capability, suitable for applications requiring high power dissipation in compact sizes. They offer various ohmic values from R005 to 100K, with adjustable tolerances, low temperature coefficients, and insulation resistance over 10,000 MΩ. Ideal for electronics requiring reliable overcurrent protection and heating management with RoHS compliance and custom designs available.
Ohmite HS2547RJ Aluminium Housed Resistor Specifications:
- Power Dissipation: Up to 300 Watts with heatsink mounting, derates at higher temperatures, maximum surface temperature 200°C
- Ohmic Values: From R005 to 100K, depending on size and wattage, with low inductance options available (NHS series)
- Tolerance: Standard +5% (J), +10% (K); optional +1% (F), +2% (G), +3% (H)
- Temperature Coefficient: Typical < 1K 100ppm, > 1K 25ppm for lower TCR versions
- Insulation Resistance: ≥10,000 MΩ (dry)
- Voltage Ratings: Ranges from 1400 V to 7070 V peak AC, depending on series and wattage
- Dimensions: Vary by size, e.g., HS10 to HS300, detailed in datasheet
- Construction: Aluminium housing with thermal compound interface for heat dissipation, with optional low inductance configuration
- Certifications: RoHS compliant, meeting MIL 18546, IEC 115 standards
- Additional Features: Custom designs available, high pulse capability, high power-to-volume ratio, suitable for heatsink application

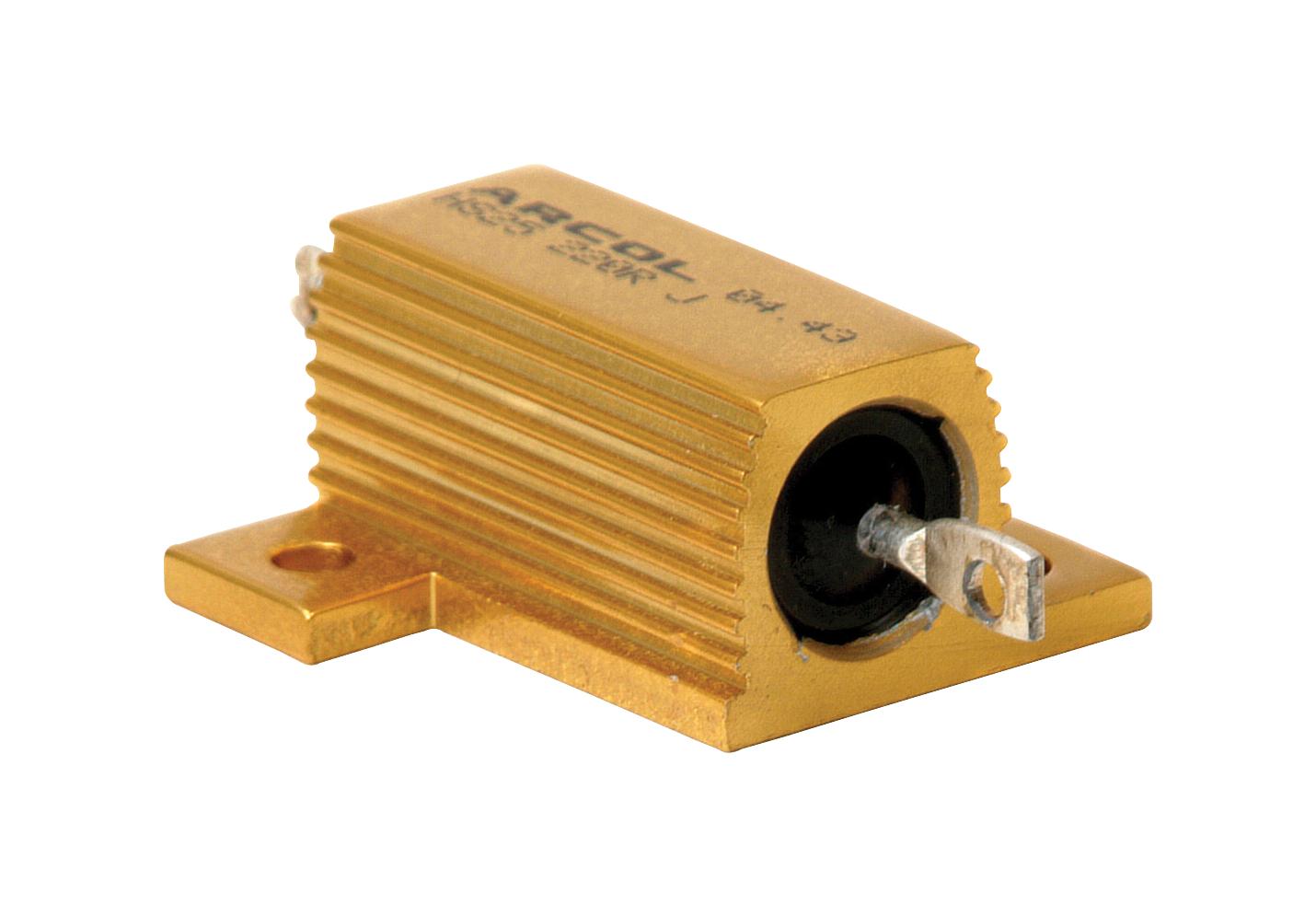

Buy the Buy Arcol Aluminium Housed Resistors Part Number HS2547RJ Online
Purchase the Arcol HS2547RJ aluminium housed resistor online today for high power dissipation in compact, heat-efficient packages. Designed for direct heatsink mounting, these resistors deliver reliable performance in demanding electronic applications. Featuring a wide range of ohmic values, optional low inductance versions, and precise tolerances, they are ideal for use in power supplies, motor drives, and industrial systems. Explore quick ordering options to secure these robust, RoHS-compliant resistors and enhance your project’s thermal and electrical reliability.
Order your Arcol HS2547RJ aluminium housed resistor today and ensure reliable high power performance with excellent heat dissipation and customizable options.
Frequently Asked Questions
Where can I buy Ohmite HS2547RJ?
You can click on the BUY or RFQ button to purchase HS2547RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS2547RJ?
You can download the HS2547RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS2547RJ?
Ohmite
